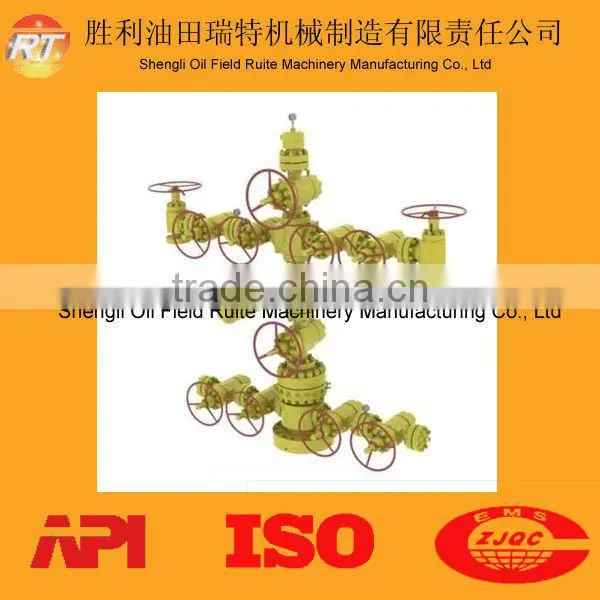

Help CenterHigh Pressure Anti-H2S Wellhead Equipment Oilfield Tree Wellhead Equipment Christmas Tree
Related Products
-
BOP Thermal Recovery Wellhead EquipmentUS$ 1 - 100MOQ: 10 Pieces -
Water Injection Wellhead & X-mas Tree API 6A StandardUS$ 1 - 100MOQ: 10 Pieces
-
Casing Hanger Used for Wellhead AssemblyUS$ 2,300 - 5,600MOQ: 1 Set
-
API Casing Hanger Shengli Oilfield RuiteUS$ 525 - 1,500MOQ: 1 Set
-
API Good Quality Casing HangerNegotiableMOQ: 1 Set
Specifications
1. API standard.2. ISO certificate.
3. Register with Sinopec.
4. Technical service.
5. Professional service for export.
Description
The product is mainly used for deep or ultra deep wells or high pressure wells with hydrogen sulfide, or as completion wellhead equipment, it also meets the special technical requirements of high pressure acidization and fracturing operation, etc. In addition to the safety and reliability, complexity of recovery and workover technics and convenience of operation are also taken into account. Its main component, plate valve has advantages such as reliable in sealing and small in open and close torque.
Technical Specifications
Parameters |
KQ78/65-105 |
KQ65-70 |
KQ78-70 |
Working pressure (Psi) |
15,000 |
10,000 |
10,000 |
Nominal diameter(in) |
3-1/16 |
2-9/16 |
3-1/16 |
Working Temperature (°F) |
-20-250 |
||
Working Medium |
Crude Oil, Natural Gas |
||
Main Valve |
PF105-78 |
PF70-65 |
PF70-78 |
Wing Valve |
PF105-65 |
PF70-65 |
PF70-78 |
Side Way Valve |
PF105-65 |
PF70-65 |
PF70-78 |
Top flange of tubing head |
7-1/16---15000 |
7-1/16---10000 |
7-1/16---10000 |
Bottom flange of tubing head |
7-1/16---15000 |
7-1/16---10000 |
7-1/16---10000 |
