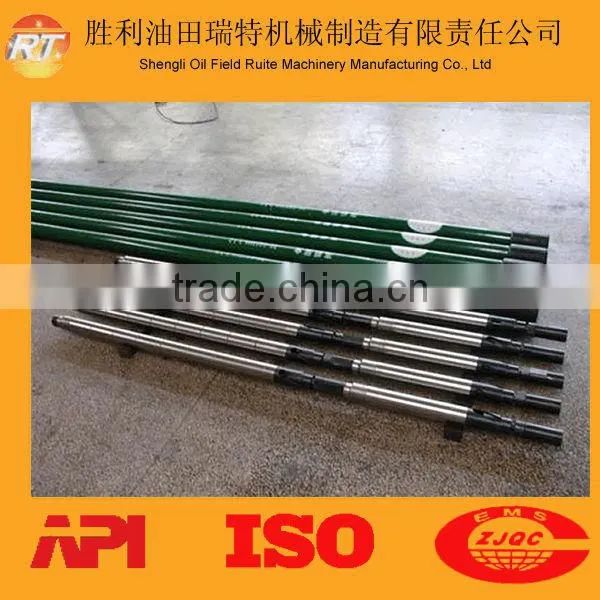

Tubing pipe Pumps oilfield pump oil production pump oil OCTG pipe
- 10000 Ton / Tons per Month
- Tianjin Qingdao
- T/T
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
-
HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
-
50m Depth Core Drilling Rig Portable Diamond in Mountain
-
TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
-
1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
| Condition: | New | Type: | Rotary Drilling Rig | Power Type: | Diesel |
| Place of Origin: | Shandong, China | Brand Name: | Ruite | Model Number: | 23025 |
| Usage: | Other, Oil drilling | After-sales Service Provided: | Overseas service center available |
Product Description
Description
The workover process of tubing pump is: firstly the barrel being connected to the tubing is directly run into the well at desired depth and then the plunger is run into the barrel with the sucker rod. The applicable tubing pump is larger in size than rod pump in the same tubing. Tubing pump has simple structure so the displacement is bigger and it is suitable for the shallower well with shallow depth and high production.
The THD type of tubing pump means that its standing valve is directly connected to the barrel and it cannot be pulled up separately with the barrel. The THC or THMtype of tubing pump means that its standing valve can be pulled up separately with the barrel. The seating assembly of THC pump is cup type and for THM is mechanical type. The THC and THM type of tubing pump are suitable for the frequently work-over wells.
Specifications Of Tubing Pumps:
Model | mm(in)Nominal Dia. | m(ft)Plunger Length | Stroke m | m3/d Pump Constant | Tubing And Thread | In Sucker Rod |
20-125TH | 32(1.25) | 1.2-1.8 (4-6) | 0.6-7.3 | 1.14 | 2 3/8NU/EU | 3/4 |
25-125TH | 32(1.25) | 0.6-7.3 | 1.14 | 2 7/8NU/EU | 3/4 | |
20-150TH | 38(1.50) | 0.6-7.3 | 1.64 | 2 3/8NU/EU | 3/4 | |
25-150TH | 38(1.50) | 0.6-7.3 | 1.64 | 2 7/8NU/EU | 3/4 | |
20-175TH | 44(1.75) | 0.6-7.3 | 2.24 | 2 3/8NU/EU | 3/4 | |
25-175TH | 44(1.75) | 0.6-7.3 | 2.24 | 2 7/8NU/EU | 3/4 | |
25-225TH | 57(2.25) | 0.6-7.3 | 3.69 | 2 7/8 NU/EU | 3/4 | |
30-275TH | 70(2.75) | 0.6-7.3 | 5.50 | 3 1/2NU/EU | 3/4 | |
35-325TH | 83(3.25) | 0.6-7.3 | 7.70 | 4NU/EU | 3/4 | |
40-375TH | 95(3.75) | 0.6-7.3 | 10.26 | 4 1/2NU/EU | 1 |
Certificate of our company

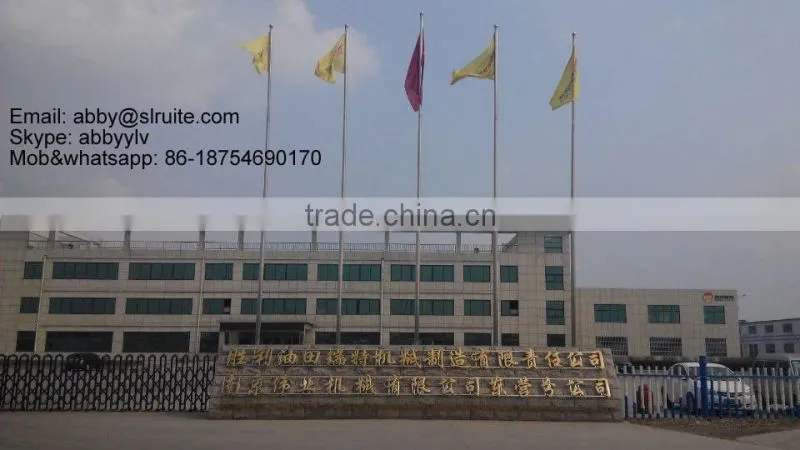

Pictures of our company

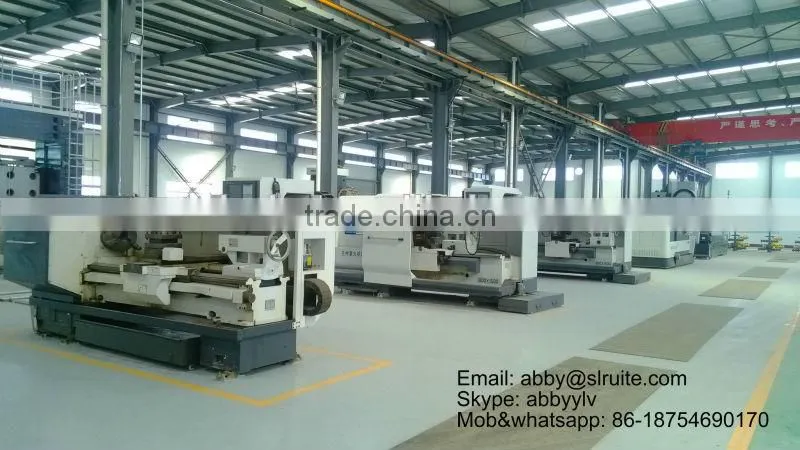

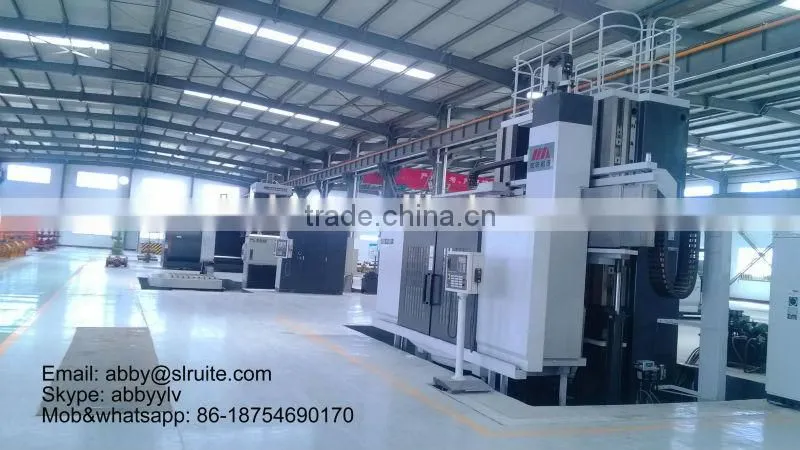

Workshop:
Contact Us
- Shengli Oilfield Ruite Machinery Manufacturing Co., Ltd.
- Contact nameRT Group
- AddressNorth Of Nan'er Road, East Of 14th Road, Shengli Industrial Zone
