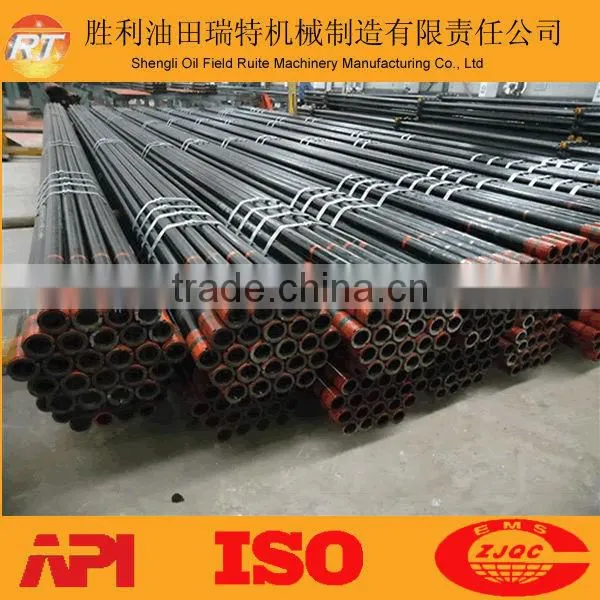

Tubing Pipe API 5CT Standard Oilfield Pipe Oilfield Equipment Tubing Premium Thread

Shengli Oilfield Ruite Machinery Manufacturing Co., Ltd.

US$ 1 - 1,000 MOQ: 1 Piece

Key Specifications

Material:

Stainless Steel

Technics:

Casting

Type:

Coupling

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Material Stainless Steel

Technics Casting

Type Coupling

Place of Origin Shandong, China

Connection Female

Shape Equal

Head Code Square

Specifications

1. API standard.
2. ISO certificate.
3. Register with Sinopec.
4. Technical service.
5. Professional service for export.

Technical Parameters of Non-upset Tubing

No.	Specs	OD	Wall Thickness	OD of coupler	Nominal weight	Steel grade	Hydrostatic test pressure	Internal yield pressure strength	Collapsing strength	Thread limit tension	Recommended machine tight torque
No.	Specs	mm	mm	mm	Kg/m	Steel grade	Mpa	Mpa	Mpa	KN	N.m
1	1.9	48.26	3.68	55.88	4.09	J55	46.0	50.68	53.43	116.77	420-700
						N80	67.5	73.64	77.77	169.80	585-975
						L80	67.5	73.64	77.77	169.80	570-950
						P110	--	--	--	--	--
2	2-3/8	60.32	4.83	73.02	6.85	J55	48.5	53.09	55.85	220.18	750-1230
						N80	69.0	77.22	81.22	318.93	1320-2180
						L80	69.0	77.22	81.22	318.93	1012.5-1687.5
						P110	69.0	101.4	106.6	420.00	1305-2175
3	2-7/8	73.02	5.51	88.9	9.52	J55	46.0	50.06	52.95	322.94	1080-1770
						N80	66.5	72.88	76.95	443.48	1690-2790
						L80	66.5	72.88	76.95	443.48	1455-2425
						P110	69	95.6	96.6	616.66	1882.5-3137.5
4	3-1/2	88.9	6.45	107.95	13.69	J55	44.0	48.19	51.02	486.63	1510-2500
						N80	64.0	70.05	72.60	633.87	2320-3860
						L80	64.0	70.05	72.60	633.87	2062.5-3437.5
						P110	69.0	92.0	90.0	929.438	2662.5-4437.5
5	4	101.6	5.74	120.65	14.14	J55	34.5	37.5	35.2	440.37	1690-2100
						N80	50.0	54.5	45.4	640.54	2360-2950
						L80	50.0	54.5	45.4	640.54	1710-2850
						P110	69.0	--	--	--	--
6	4-1/2	114.3	6.88	132.08	18.75	J55	36.5	39.99	39.4	638.31	1780-2950
						N80	53.0	58.12	51.71	928.34	2490-4130
						L80	53.0	58.12	51.71	928.34	2437.5-4062.5
						P110	69.0	--	--	--	--
