Specifications
grapple wheel loader1. CE certificate
2. good quality with competitive price.
3. one year gurantee service.

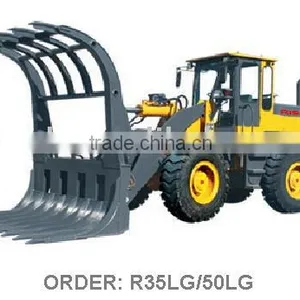

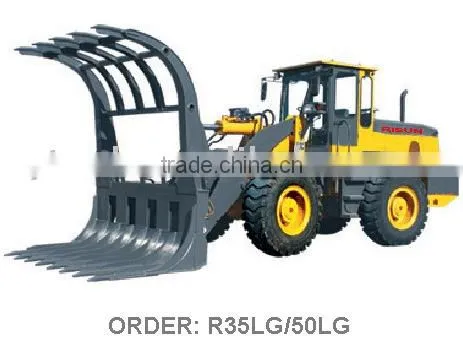

grapple wheel loader
wheel loader 1.5-3.5 tons grass grasper type, which designed for operating in pastures, paper manufacturing factory, wood yards, wooden products manufacturing factory and so on, to load or unload grass, wood, concrete products, steel tube, round wheel ect., adopt the static liquid transmission system, variable motor, hydraulic sensor on load power steering, speed decelerating on side of the wheel, four-wheel drive, the forcipate disc type brake, hinge type frame.
Work with it, the efficiency will be promoted obviously.
1. The longest guarantee promise: 2 year
2. Delivery time: within 15 workdays
3. Sample tractor can order from us.
1. Most of easy worn parts such as oil filter, fuel filter, air filter, inner tyre etc. are delivered for 2 year, for every wheel loader.
1. Air Conditioner
2. Joystick
3. Quick Hitch
4. Fork
5. Rops Cabin
Lift fork, wood grasper, digger, snow pusher, excavator, snow transbox, grass grasper ... ...
Model |
ZL30 |
ZL50 |
Max. open grasping mouth (mm) (wood/grass) |
0/2830 |
1850/- |
Min. holding diameter (mm) (wood/grass) |
450/1450 |
400/- |
Grasping tools width (mm) (wood/grass) |
1620/2400 |
-/- |
Discharging height (mm) (wood/grass) |
2900/2800 |
3060/- |
Discharging distance (mm) (wood/grass) |
1360/1558 |
1750/- |
Holding volume (m3) |
-/5 |
-/- |
Rated load (kg) (wood/grass) |
1500 |
3500 |
Max. excavating power (KN) |
120 |
175 |
Max. traction (KN) |
90 |
145 |
Max. slope climbing (°) |
30 |
30 |
Discharge height (mm) |
3230 |
3100 |
Discharge distance (mm) |
1070 |
1285 |
Min. ground clearance (mm) |
410 |
- |
Thread (mm) |
2600 |
3200 |
Wheelbase (mm) |
1800 |
2250 |
Height of bucket at top lift (mm) |
5050 |
|
Lifting time (s) |
5.5 |
6.5 |
Engine model |
YC6B125-T10/Cummins/Deutz TD226B |
WD615G.220/Cummins |
Engine type |
Inline, water cooled, four stroke, direct injection |
|
Rated power (kw) |
92 |
162 |
Rated speed (rpm) |
2200 |
2200 |
Transmission system |
Gearbox separated from torque-converter |
Gearbox united with torque-converter |
No. of shifts (forwards/backwards) |
4/2 |
4/4 |
Max. running speed (km/h) |
36 |
36 |
Steering |
Fully hydraulic power steering |
Coaxial flow-amplified, fully hydraulic power steering |
Max. turning radius (mm) |
5160 |
6288 |
Brake |
Air assisted oil disc type on 4 wheels |
|
Parking brake |
Soft axis, cable control |
Air-brake control with expanding inner hoof |
Tyre |
17.5-25 |
23.5-25 |
Overall size (mm) |
7020*2420*3000 |
8000*3070*3300 |
Weight (kg) |
9800 |
16500 |
