Home > Transportation > Tractor & Parts > Tractor > Foton Brand Tractor FT904 90hp 4X4 With Foton Engine Hot Sale in 2014

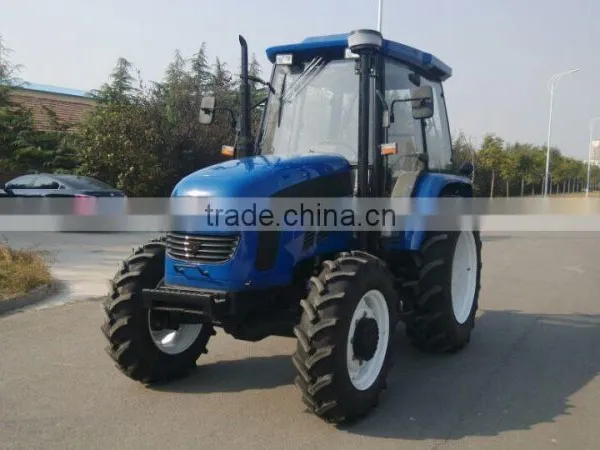

Foton Brand Tractor FT904 90hp 4X4 With Foton Engine Hot Sale in 2014

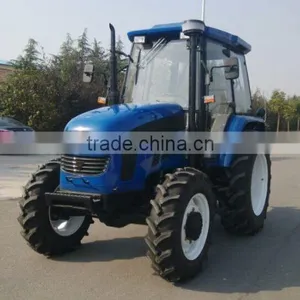

Foton Brand Tractor FT904 90hp 4X4 With Foton Engine Hot Sale in 2014 thumbnail-1
Foton Brand Tractor FT904 90hp 4X4 With Foton Engine Hot Sale in 2014 photo-1
US$ 14,998 - 19,888 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Weifang Zhaoyang Trade Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 66240
Certificate Other, ISO9001
Brand Name FORON
Model Number FT904
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas

Specifications

foton brand tractor FT904 90hp 4X4 with foton engine hot sale in 2014

foton brand tractor FT904 90hp 4X4 with foton engine hot sale in 2014



90hp 4WD tractor is a big power wheel tractors connecting with engine by gear shaft have many good characteristics:

1. Equipped with domestically renowned four-cylinder engines, with power strong and reliability high.

2. Emission standard meets National Standards

3. Employed strengthened drive shaft, featuring high operation stability.

4. German imported LUK dual action clutch ensure high reliability.

5. Dual-cylinder press lifter with height limitator, featuring large lifting force and convenient maintenance.

6. 8+4 gear and 16+8 creep gear are optional, with speed matching reasonable, and work efficiency high.

7. Power takeoff is large meanwhile several kinds of choices for RPM.

8. 150L underneath-type cylinder, meeting demands for operation.

9. Full-sealed cab, and devices like air conditioning, warm air system, fan systemare optional for installation and the complete vehicle is luxurious and comfortable.

11. Employed side-installed operation, meshing gear shift which helps operate convenience and flexibility.

12. Employed hydraulic steering system facilitates the reliable and flexible operation.





foton brand tractor FT904 90hp 4X4 with foton engine hot sale in 2014

1. The longest guarantee promise: 2 year

2. Delivery time: within 15 workdays

3. Sample tractor can order from us.





foton brand tractor FT904 90hp 4X4 with foton engine hot sale in 2014

1. Most of easy worn parts such as oil filter, fuel filter, air filter, inner tyre etc. are delivered for 2 year, for every tractor.

2. Plough delivered as free gifts





foton brand tractor FT904 90hp 4X4 with foton engine hot sale in 2014

Plough, disc plogh, rotary tiller, seeder, front end loader, backhoe, snow brusher, snow blasher, snow pusher, mower, trailer, cultivator, water pump, sprayer ... ...





Model

FT754

FT824

FT904

Drive Type

4X4

Engine







Engine Type

Water-cooled, in-line, four stroke, 4 cylinder

Max. Torque (N.m) @ Revolving Speed (rpm)

263@1500~1700

288@1500~1700

288@1500~1700

Displacement (L)

4

Fuel Tank Capacity (L)

145

Engine Rated Power kW @rpm

55@2200

60.3@2200



Rated Operating Condition Fuel Consumption Rate (g/kW.h)

<248

Drive Train







Clutch

Dry-type, double-acting

Standard PTO Speed (rpm)

540/1000

Gears

8+4/16+8 (creeper gear)/16+8(shuttle gear)/*=* (shuttle gear)/16+16(synchronizer)

Gear Shift Mode

Meshing bush/ synchronizer

Hydraulic System







Hydraulic Output Flow (L/min)

37/47

Hydraulic Output Valve

2 lines (optional)

Working Device







Three Points Suspension Category

Category II

Lift Capacity (610mm Point) kN

Ordinarily riser:>15; or forced pressure riser:>20

Tillage Depth Adjustment

Semi-remote lifter: force and gear combination control

Remote lifter: height adjustment, floating control

Parameter







Overall Dimension (LXWXH) mm

4530X2050X2810

Min. Operating Weight (kg)

With Cab

4090

4155



Without Cab

3795

3855



Wheelbase (mm)

2195

Min. Ground Clearance (mm)

405

Front Tire

11.2-24/12.4-24

Rear Tire

16.9-34/18.4-30/18.64-38





foton brand tractor FT904 90hp 4X4 with foton engine hot sale in 2014foton brand tractor FT904 90hp 4X4 with foton engine hot sale in 2014
