Specifications

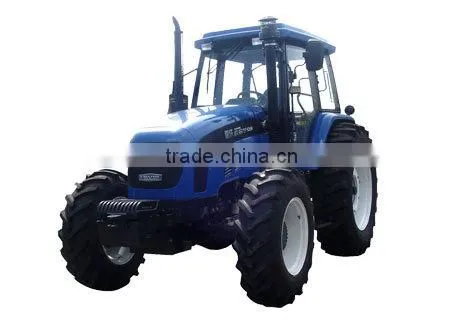

Foton tractor FT1204 120hp FOTON engine power steering Cab with AC luk clutch metal hood 16+8 shuttle shift multi-way valveFoton tractor FT1204 120hp FOTON engine power steering Cab with AC luk clutch metal hood 16+8 shuttle shift multi-way valve
100hp 4WD tractor is a big power wheel tractors connecting with engine by gear shaft have many good characteristics:
1. Equipped with domestically renowned four-cylinder engines, with power strong and reliability high.
2. Emission standard meets National Standards
3. Employed strengthened drive shaft, featuring high operation stability.
4. German imported LUK dual action clutch ensure high reliability.
5. Dual-cylinder press lifter with height limitator, featuring large lifting force and convenient maintenance.
6. 8+4 gear and 16+8 creep gear are optional, with speed matching reasonable, and work efficiency high.
7. Power takeoff is large meanwhile several kinds of choices for RPM.
8. 150L underneath-type cylinder, meeting demands for operation.
9. Full-sealed cab, and devices like air conditioning, warm air system, fan systemare optional for installation and the complete vehicle is luxurious and comfortable.
11. Employed side-installed operation, meshing gear shift which helps operate convenience and flexibility.
12. Employed hydraulic steering system facilitates the reliable and flexible operation.
1. The longest guarantee promise: 2 year
2. Delivery time: within 15 workdays
3. Sample tractor can order from us.
1. Most of easy worn parts such as oil filter, fuel filter, air filter, inner tyre etc. are delivered for 2 year, for every tractor.
2. Plough delivered as free gifts
Plough, disc plogh, rotary tiller, seeder, front end loader, backhoe, snow brusher, snow blasher, snow pusher, mower, trailer, cultivator, water pump, sprayer ... ...
Drive type |
4*4 |
Overall dimension(L * W * H) |
5060*2345*2995 |
Wheelbase (mm) |
2582/2657(Front Drive Axle of Midengine Steering Fuel Cylinder) |
Track(front/rear) |
1784~2202/1620~2420 |
Track(front/rear)regulating method |
1784~2202/1620~2420 |
Minimum ground clearance |
395 |
Min.operating weight(kg) |
5545 |
Counterweight (max) (front/rear) |
440/516 |
Gears(forward/reverse/creeper) |
16+8 |
Theoretical speed of each gear(forward/reverse) |
1.25-29.71/2.0-27 |
Engine | |
Brand |
Lovol Power |
Engine type |
In-line, four-stroke |
Intake mode |
Supercharged |
Cylinder number |
6 |
Bore |
100 |
Stroke |
127 |
Displacement(L) |
6 |
Engine rated power kW@rpm |
92 |
Rated speed |
2200 |
Air cleaner type |
Dry type |
Type of cooling system |
Forced water-cooled |
Max. Torque@ revolving speed (rpm) |
421/1500~1700 |
Specific fuel consumption at rated conditions (g/kW.h) |
≤248 |
Fuel tank capacity (L) |
240 |
Steering brake system | |
Type of steering system |
Hydraulic steering |
Type of steering gear |
Cycloid orbitrol steering gear |
Type of braking system |
Wet type, disc type, static hydraulic control |
Transmission system | |
Clutch type |
Dry type, double-action clutch |
Gearbox type |
Two-axis mechanical gearbox |
Gearbox shift mode |
Shift sleeve |
Type of central transmission |
Spiral bevel gear type |
Final transmission mode(front/rear) |
Single-stage spur gear |
Walking system | |
Frame type |
Frameless |
Tire Model (front/rear) |
14.9-26/18.4-38 |
Working device | |
Type of hydraulic suspension system |
Open-center, separated type |
Type of linkage |
Three point rear linkage |
Linkage classes |
Class II |
Elevating force(610mm)(kN) |
≥25 |
Regulating mode |
Depth control, floating control |
Type of PTO shaft |
Rear separated type |
The number of PTO shaft splines |
6 /8/21 splines |
Outer diameter of PTO shaft spline |
φ35/φ38/φ35 |
PTO shaft speed |
540/1 000 or 760/1 000 |
Hydraulic system | |
Hydraulic output flow (L/min) |
52 |
