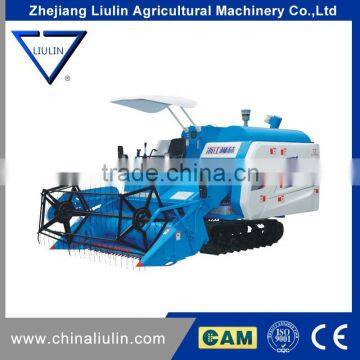

Agricultural Machinery Harvester Rice Price, Small Rice Harvest Machine For Sale
| Type | Track self-propelled | |||
| Model | 4LZ-4.0B1 | |||
| Havesting Width | mm | 2000 | ||
| Feed rate | kg/s | 4.0 | ||
| Diese Engine | Model | /kw | 70 | |
| Power | HP | 72 | ||
| Rotate Speed | R/min | 2600 | ||
| Average oil consumption per hectare | kg/ha | 20-23 | ||
| working productivity | ha/h | 0.20-0.47 | ||
| weight | big tank(1.0m3 / 600kg) | kg | 3050 | |
| Dimension | mm | 5260(L)×2390(W)×2320(H) | ||
| Header | Reel type | eccentic, spring toothed | ||
| Reel Diameter | mm | ¢1000 | ||
| No.of bars | 5 | |||
| Auger type | Spiral toothed | |||
| Auger Diameter | mm | ¢480 | ||
| Clearance between Auger fingers and bottom platform | mm | 11-15(adjustable) | ||
| Cutter knife travel | mm | 76.2 | ||
| Conveyer | Type | rake toothed band (rake toothed chain) | ||
| linear speed of rake teeth movement | m/s | 5 | ||
| Roller | Type | axial flow,rasp-bar | ||
| Diameter | mm | ¢550(adjustable) | ||
| Length | mm | 1332 | ||
| Speed of rotation | R/min | 912 | ||
| Concave | type | grid | ||
| angle | . | 238 | ||
| clerance between concave and rasp-bar | mm | 7~19 | ||
| Sieves | Type | Double sieves+blower+re-thresher | ||
| top sieve/area | m2 | 0.81 | ||
| bottom sieve/area | m2 | 0.92 | ||
| tail sieve area | m2 | 0.22 | ||
| Fan | Type | centrifugal,volute | ||
| Diameter | mm | ¢360 | ||
| Vertical auger | Diameter | mm | ¢125 | |
| Horizontal auger | Diameter | mm | ¢125 | |
| Grain Tank | m3 | 0.3 | ||
| Chassis | Type | Rubber track | ||
| Track | mm | 400×90×46 | ||
| Gear box | (6+2) geared gearbox | |||
| Drving speed | m/s(km/h) | 0.476(1.71)~2.635(9.49) | ||
| Re-thresher | Type | plank toothed | ||
| Rotor diameter/lentgth | mm | 180/1475 | ||
| Unloading | Sacked & Auto unloading | |||
Hot Sale in liulin brand !! Mini Rice and Wheat Grain Combine Harvester- 2M harvest width with 95HP with Big grain tank in agri machinery and agri equipment
(Mobile: 0086-18968527259)
Our factory is one of biggest and professional producer for self-propelled combine harvester in China. with more than 20 years experience in manufacture combine harvester and gain high reputation from our customers all over the world. we make sure to supply excellent combine harvester with high quality and competitive price. what's more, the best after-sale service is also avialable.
Company'S information
1. Company's Show

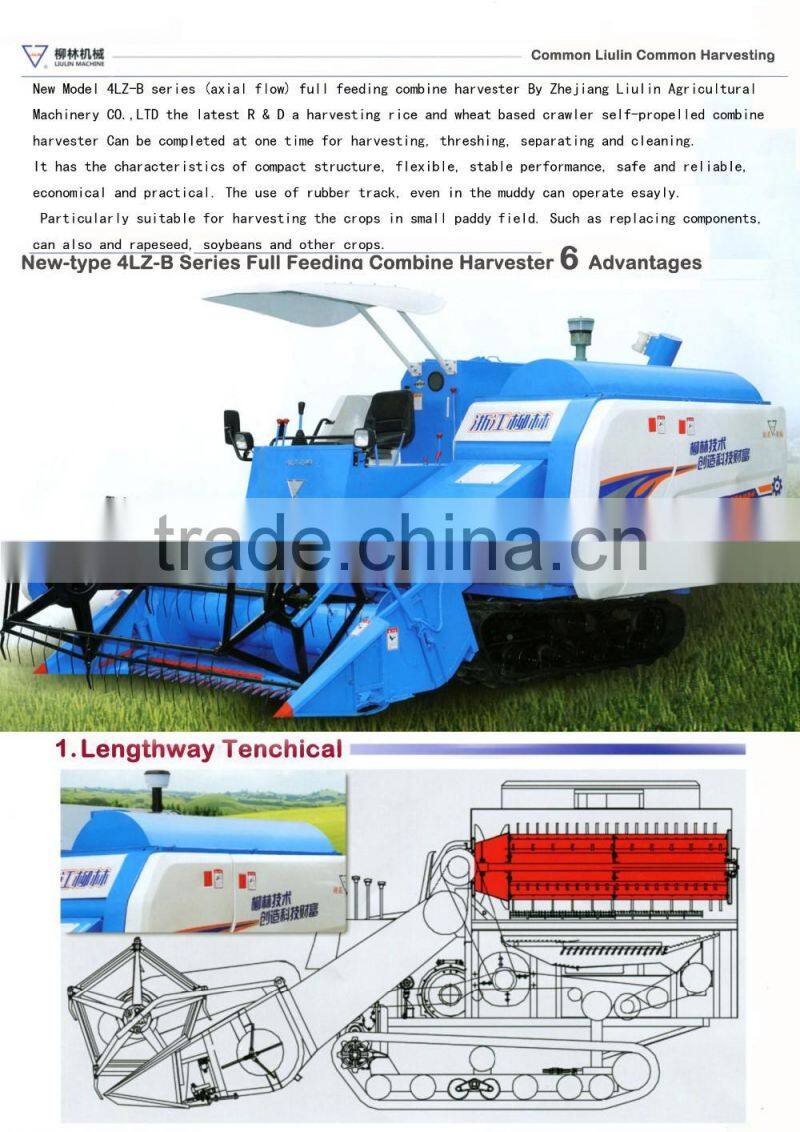

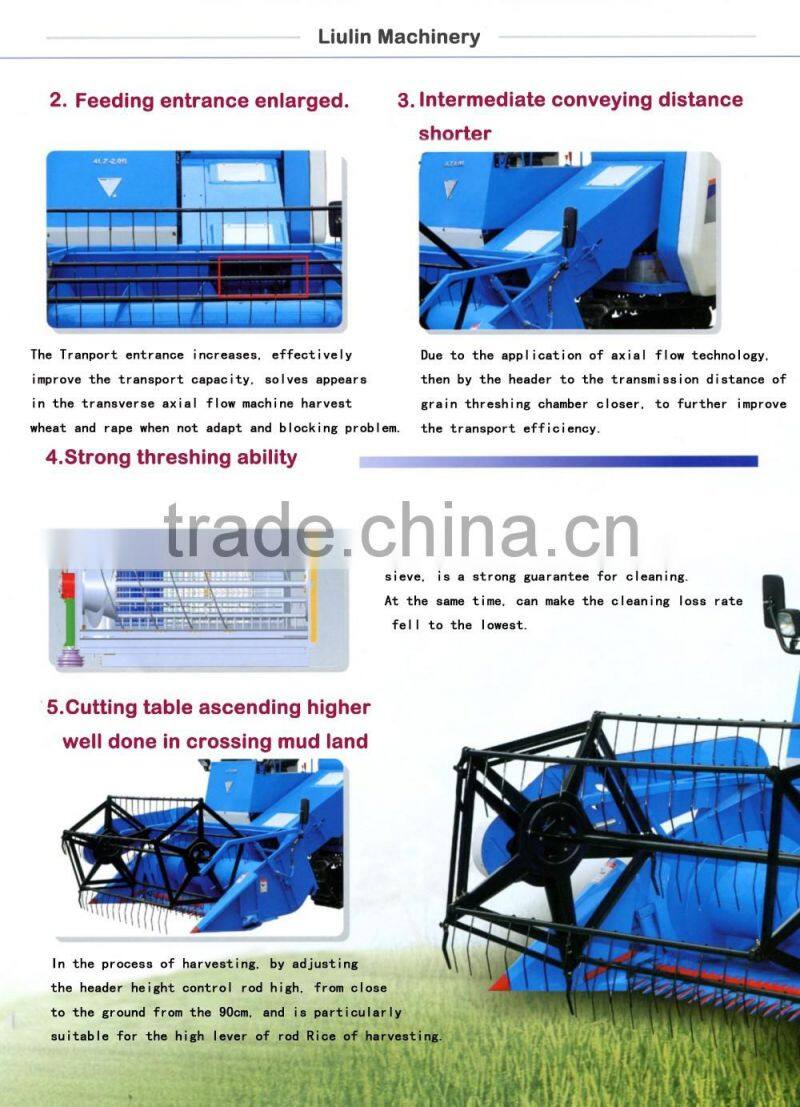

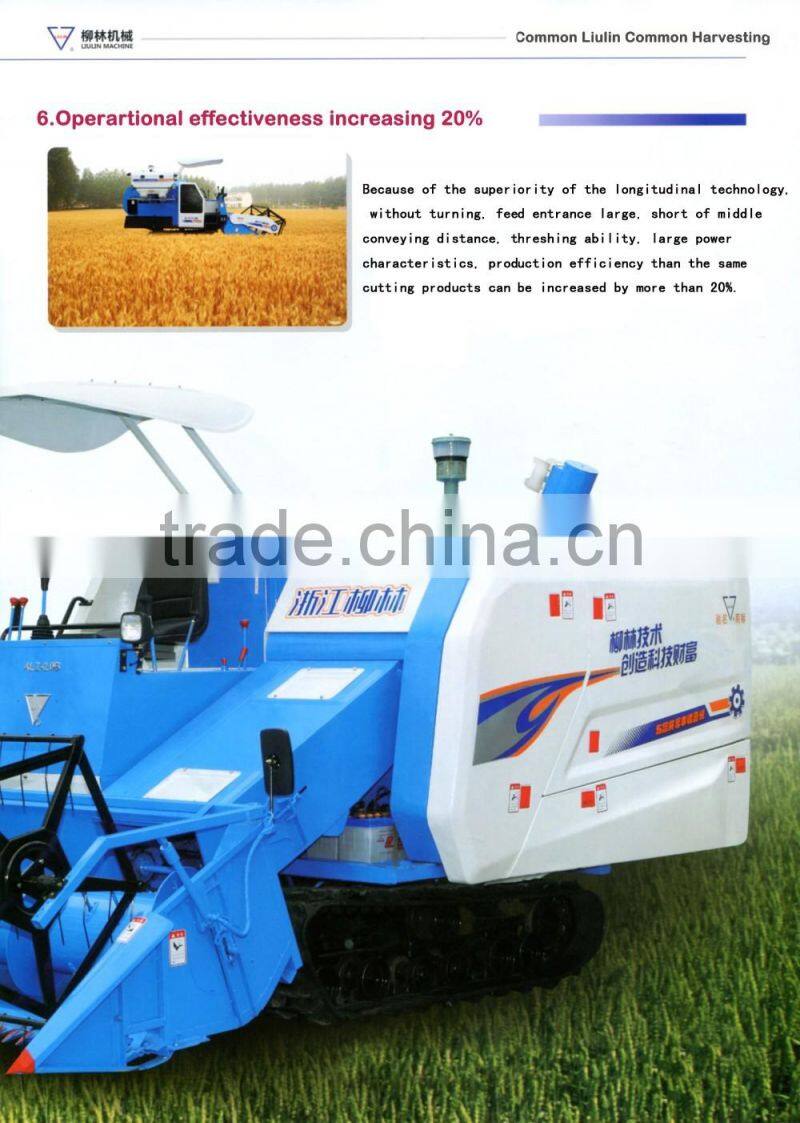

2. Product's Show'S Advantage

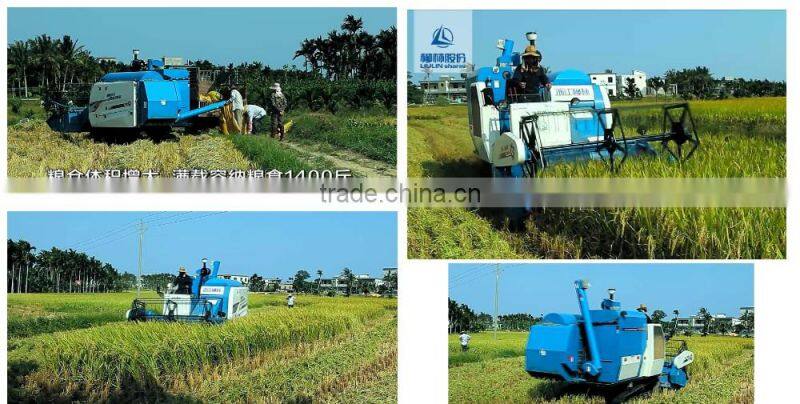

3. Working's Show

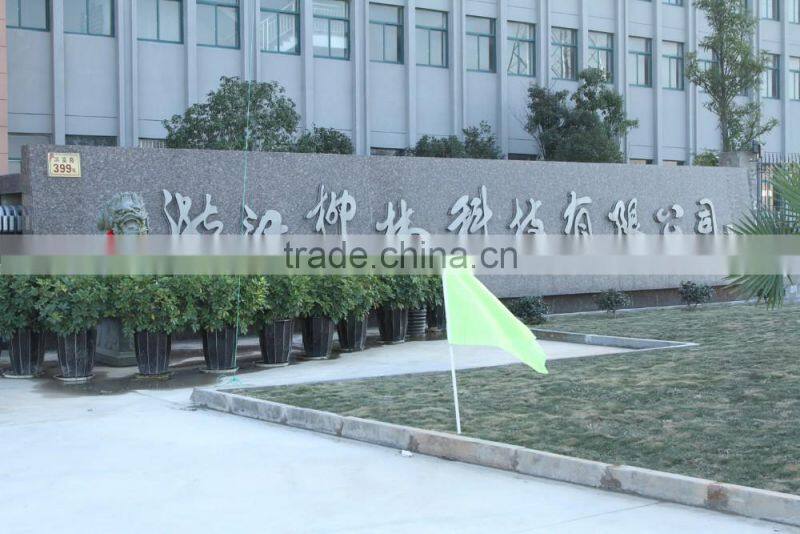

4. Company's Park

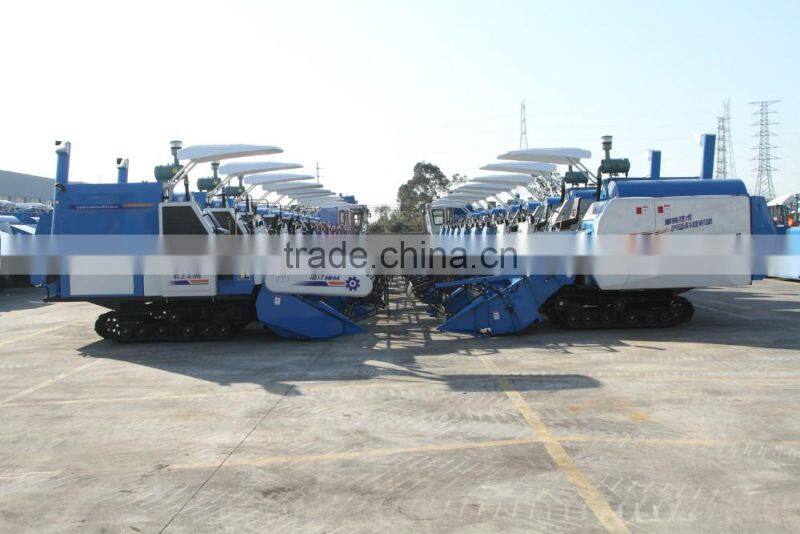

5. Container's Waiting's Show
6. Certfication's Show
7. Coorperation's Show
