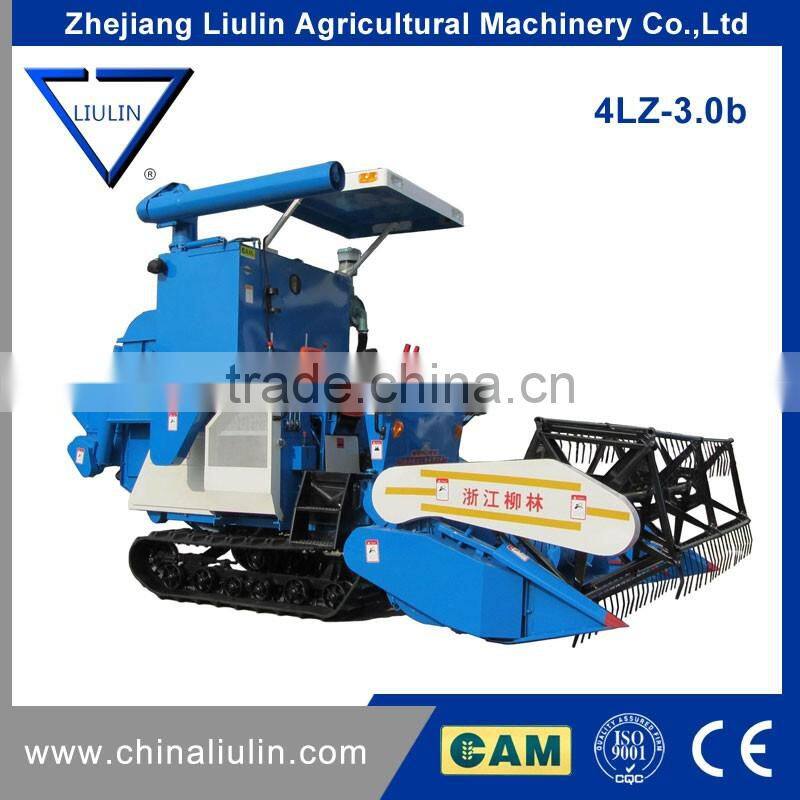

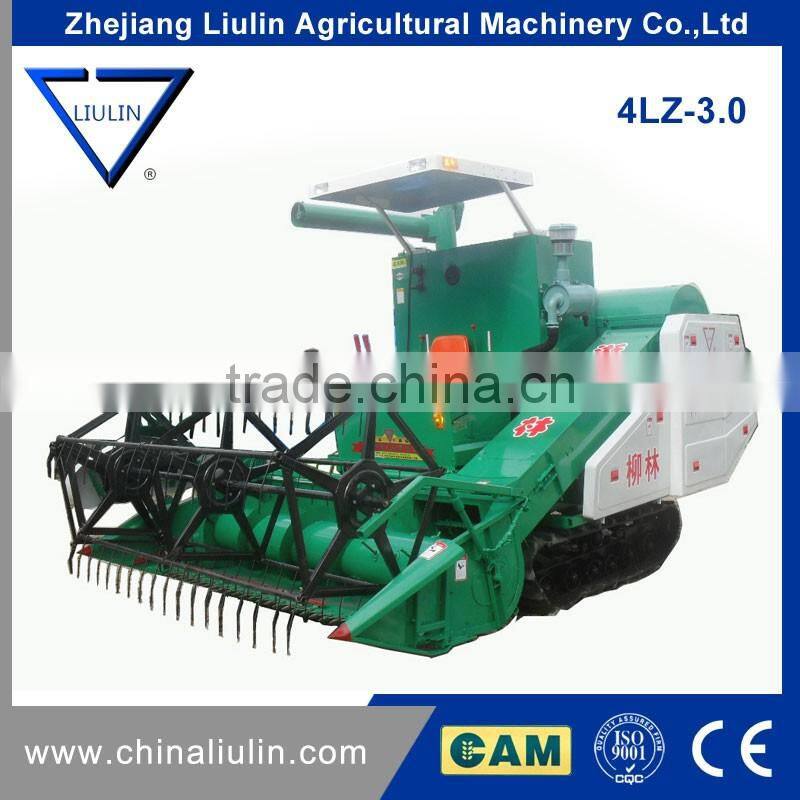

Hot Sale Mini Reaper Binder / Mini Rice Combine Harvester / Reaper-binder

Hot Sale Mini Reaper Binder / Mini Rice Combine Harvester / Reaper-binder photo-1

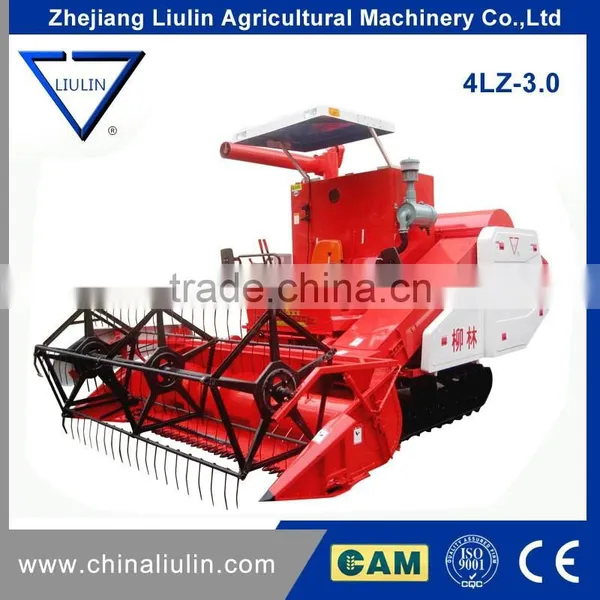

Hot Sale Mini Reaper Binder / Mini Rice Combine Harvester / Reaper-binder photo-2
US$ 7,000 - 12,000 MOQ: 2 Sets
Key Specifications
Get Latest Price
Condition:
New
Application:
Agriculture Machinery
Type:
Combine Harvester
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Agriculture Machinery
Type Combine Harvester
Drive Type Gear Drive
Usage Grain Harvester
Place of Origin Zhejiang, China
Brand Name LIULIN
Model Number 4LZ-3.0
Dimension(L*W*H) 5700*3535*3080 mm, 2720*1300*1180
Weight 3410 kg, 180kg
Certificate CE
Warranty 1
After-sales Service Provided Engineers available to service machinery overseas
hot sale mini reaper binder / mini rice combine harvester / reaper-binder
hot sale mini reaper binder / mini rice combine harvester / reaper-binder hot sale mini reaper binder / mini rice combine harvester / reaper-binder

Diagram showing left side transmission

  1. Triangular belt ( threshing cylinder-chute)
  2. Triangular belt ( II shaft-transmission shaft)
  3. Triangular belt ( engine-gear box)
  4. Chain ( I shaft-II shaft)
  5. Banded belt (engine-I shaft)
  6. Banded belt (engine-unloading auger)
  7. Chain ( I shaft-threshing cylinder)
  8. Chain ( I shaft-grain auger)
  9. Chain ( linkage tension shaft-blower)
  10. Chain ( grain auger-re-threshing auger)
  11. Chain ( re-threshing auger-eccentric sprocket)

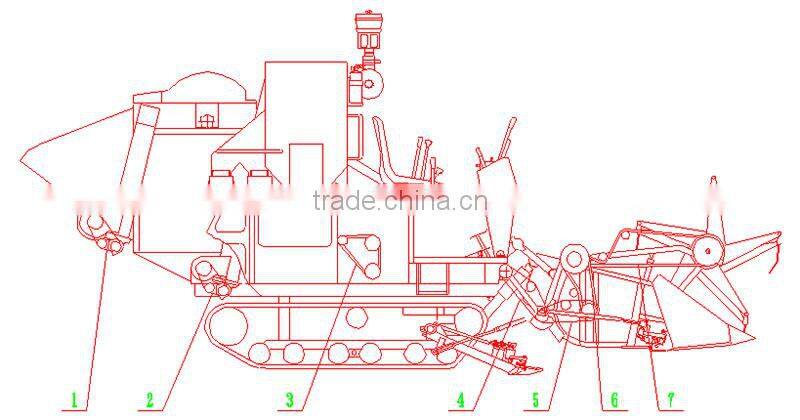

Diagram showing right side transmission
  1. Chain ( reverse transmission in re-threshing)
  2. Chain (reverse transmission in grain elevation)
  3. Triangular belt ( engine crank shaft-blower-generator)
  4. Chain (transmission shaft-transition shaft)
  5. Chain (transition shaft-stripping header auger)
  6. Triangular belt (stripping header auger-reel center shaft)
  7. Triangular belt (reel center shaft-reel)

Main specification

ltem Model

4LZ-3.0

Total losses(%)

Rice≤3.0 ,Wheat≤1.5

lmpurity rate(%

≤2.0

Breakage rate(%)

 ≤1.5

Reliability(%)

≥93

Cutting width(mm)

2580

Pure field capacity(/hm2/h)

0.3~0.53

Fuel consumption (Kg/hm2)

21~27

Structure,Type

Full feeding,Self propelled,track

Track

400mm*90mm*46

Weigh(kg)

3230

Feed rate(t/h)

10.8

Dimensions at work,LxWxH(mm)

5220x2830x2500

Diesel engine (kw)

60

Ground pressure(kpa)

 ≤24

Travel speeds

6speeds forward,2 speeds backward

Min.ground clearance(mm)

≥200

Cleaning type

Double sieves + blower + re-thresher

Grain unloading method

Unloading auguer

   hot sale mini reaper binder / mini rice combine harvester / reaper-binder

       hot sale mini reaper binder / mini rice combine harvester / reaper-binder

  hot sale mini reaper binder / mini rice combine harvester / reaper-binder



hot sale mini reaper binder / mini rice combine harvester / reaper-binder hot sale mini reaper binder / mini rice combine harvester / reaper-binder
 hot sale mini reaper binder / mini rice combine harvester / reaper-binder hot sale mini reaper binder / mini rice combine harvester / reaper-binder
 FAQ

1.Q:What is the warranty of your agricultural machines?
A:One year guarantee for whole machine(except quick-week parts),engine and gear box.
Tips:We usually suggest the buyers to order some quick-wear parts separately when purchasing machines.

 2.Q: Are there any optional parts for your combine harvesters?
A:Yes,optional parts such as a rubber track size,grain thank and type of grain unloading.

3.Q:How long is your delivery time?
A:Normally it take 15-20days to deliver after your deposit or L/C at sight

4.Q:What is the payment term?
A:Irrevocable L/C at sight or 30%T/T IN advance and balance agianst B/L copy

5.Q:What is the after-sales service ?
A:Every year we send our engineers and after-service people to local market twice to assist our sales agent

for staff trainning,marketing,advertising,maintaining and repairing the machine during the harvesting season.

6.Q:Is OEM or ODM service acceptable?
A: OEM service is no prplnem.if you have any special requirments about the machines please kindly inform

us,our engineering department will study and offer you the suitable solution





                                                        Should you have any question,pls feel free to contact us
