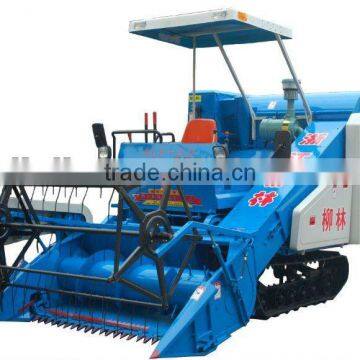

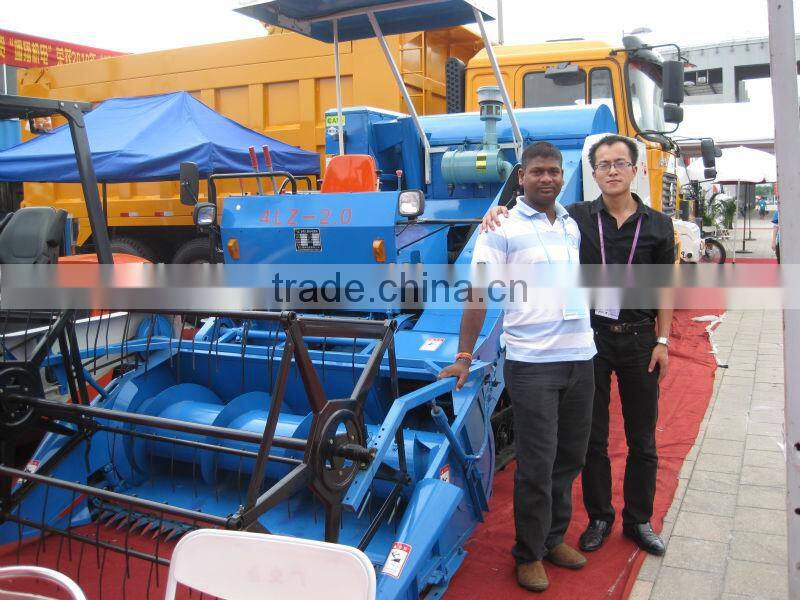

Rice reaper(Super quality)

Specifications

Excellent threshing and selecting,Strong dynamic performance,Strong passing ability in wet land,Wide application,Large power

4LZ-2.0 combine harvester specification

Major advantages:

Thorough threshing

Clear separation

Low grain breakage

High grain cleanness

Good maneuverability in the wet & soft field

Quality engine with sufficient power reserve ,low vibration and low noise

Main performance and specification:





main specification
Type			Track self-propelled harvester
Model			4LZ-2.0
Havesting Width		mm	1800
Feed		kg/s	2.0
Diese Engine	Model	kw	42
	Power	HP	58
	Rotate Speed	R/min	2800
Average oil consumption per hectare		kg/ha	20-23
working  productivity		ha/h	0.2-0.47
weight	big  tank/0.7m3	kg	2510 (small rice tank),2590(big rice tank)
Dimension LxWxH(mm)		mm	5245x2690x2675
Header	Reel type		eccentic, spring toothed
	Reel Diameter	mm	¢1000
	No.of bars		5
	Auger type		Spiral toothed
	Auger Diameter	mm	¢480
	Clearance between Auger fingers and bottom platform	mm	11-15(adjustable)
	Cutter knife travel	mm	76.2
Conveyer	Type		rake toothed band (rake toothed chain)
	linear speed of rake teeth movement	m/s	5
Roller	Type		axial flow,rasp-bar
	Diameter	mm	¢550(adjustable)
	Length	mm	1332
	Speed of rotation	R/min	912
Concave	type		grid
	angle		238
	clerance between concave and rasp-bar	mm	7~19
Sieves	Type		Double sieves+blower+re-thresher
	top sieve/area	m2	0.81
	bottom sieve/area	m2	0.92
	tail sieve area	m2	0.22
Fan	Type		centrifugal,volute
	Diameter	mm	¢360
Vertical auger	Diameter	mm	¢125
Horizontal auger	Diameter	mm	¢125
Grain Tank		m3	0.3
Chassis	Type		Rubber track
	Track	mm	350×90×46
	Gear box		(6+2) geared gearbox
	Drving speed	m/s(km/h)	0.476(1.71)~2.635(9.49)
Re-thresher	Type		plank toothed
	Rotor diameter/lentgth	mm	180/1475
Unloading			Sacked & Auto unloading



1. Brief introduce combine harvester



1) our gear box is :6+2   ( hangzhou yunnei brand, china famours brand)



YZ21-B series gearbox with large output power, strong carrying capacity, reliable steering and braking, compact   structure and easy to operate. Which is adaptable for below 2.5m high-power combine harvester .

Main technical specifications:
Model: YZ21-B-type

gear type: integral-type (3 +1) × 2
Structural weight: 165 kg

clutch pulley diameter: ¢ 220
Clutch Pulley Model: B-type

Clutch: 3 often combined with Friction
Brake Type: Wet disc brake oil on paper substrates

Lubricating Oil : NO.68, anti-wear hydraulic oil
Steering Brake Type: Single Linkage, unilateral drive shaft of the maximum output torque 1500N.M

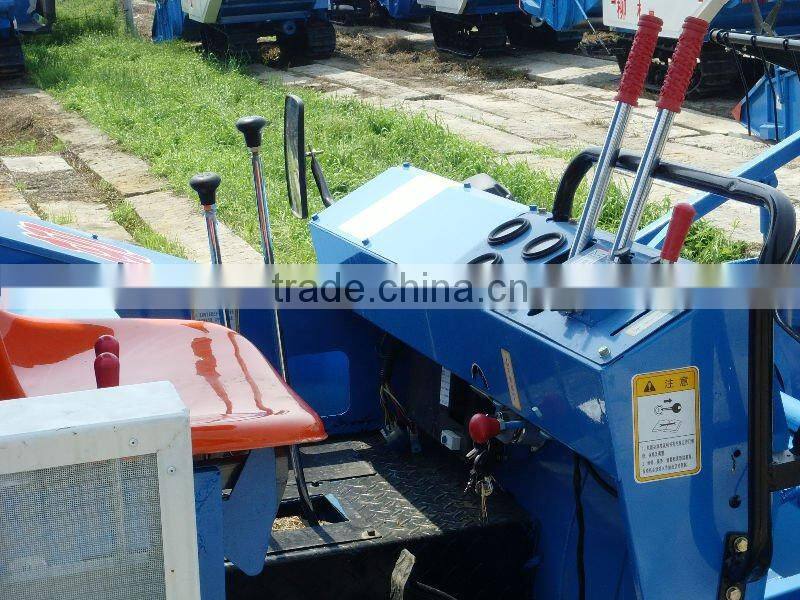

(2) two levers operation : easy to perate and more economical.

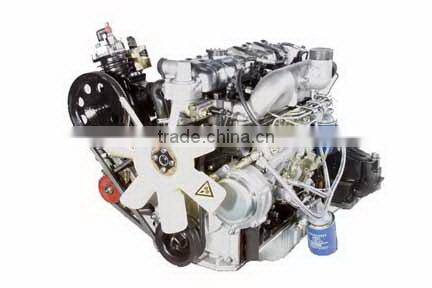

3) Large power ( we fix kunming-yunnei brand,china famous brand)









4)China famour brand, hangzhou yunnei-brand track

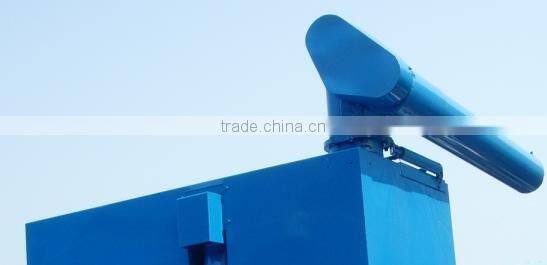

5) unloading auguer by hydraulic

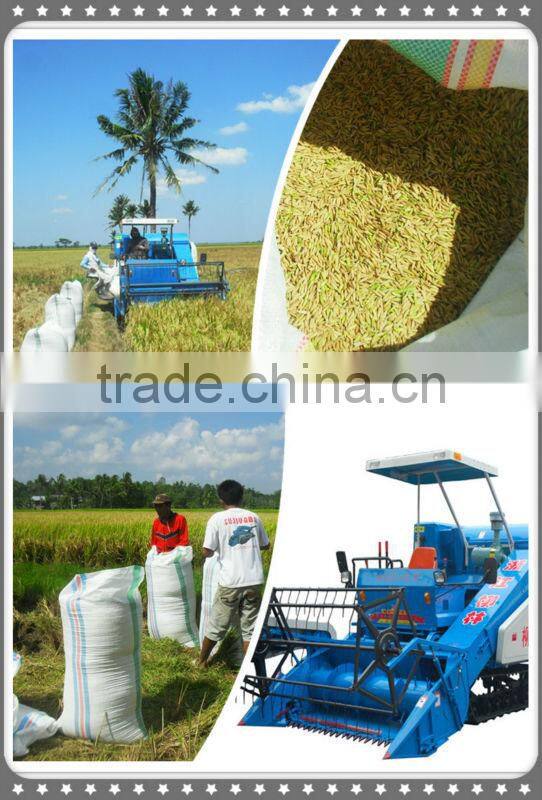

 2. Working Show

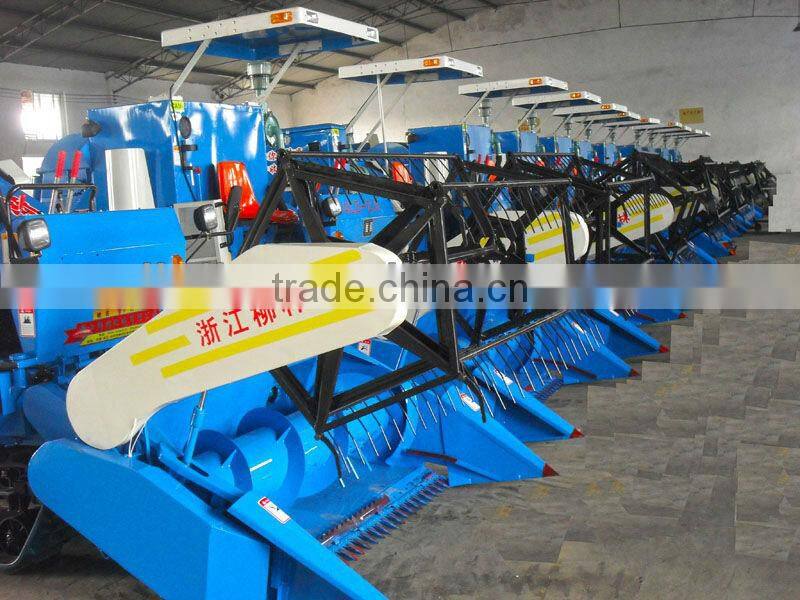

3.Company Show







4.Exhibition Show









5.Certication Show
