Major advantages of oil harvester and oil machine :
Thorough threshing
Clear separation
Low grain breakage
High grain cleanness
Good maneuverability in the wet and soft field
Quality engine with sufficient power reserve,low vibration and low noise
| main specification | ||||
| Type | Track self-propelled harvester | |||
| Model | 4LZ-2.0 | |||
| Havesting Width | mm | 2000 | ||
| Feed | kg/s | 2.0 | ||
| Diese Engine | Model | kw | 52 | |
| Power | HP | 71 | ||
| Rotate Speed | R/min | 2800 | ||
| Average oil consumption per hectare | kg/ha | 20-23 | ||
| working productivity | ha/h | 0.2-0.47 | ||
| weight | big tank/0.7m3 | kg | 2510 (small rice tank),2590(big rice tank) | |
| Dimension LxWxH(mm) | mm | 5245x2690x2675 | ||
| Header | Reel type | eccentic, spring toothed | ||
| Reel Diameter | mm | ¢1000 | ||
| No.of bars | 5 | |||
| Auger type | Spiral toothed | |||
| Auger Diameter | mm | ¢480 | ||
| Clearance between Auger fingers and bottom platform | mm | 11-15(adjustable) | ||
| Cutter knife travel | mm | 76.2 | ||
| Conveyer | Type | rake toothed band (rake toothed chain) | ||
| linear speed of rake teeth movement | m/s | 5 | ||
| Roller | Type | axial flow,rasp-bar | ||
| Diameter | mm | ¢550(adjustable) | ||
| Length | mm | 1332 | ||
| Speed of rotation | R/min | 912 | ||
| Concave | type | grid | ||
| angle | 238 | |||
| clerance between concave and rasp-bar | mm | 7~19 | ||
| Sieves | Type | Double sieves+blower+re-thresher | ||
| top sieve/area | m2 | 0.81 | ||
| bottom sieve/area | m2 | 0.92 | ||
| tail sieve area | m2 | 0.22 | ||
| Fan | Type | centrifugal,volute | ||
| Diameter | mm | ¢360 | ||
| Vertical auger | Diameter | mm | ¢125 | |
| Horizontal auger | Diameter | mm | ¢125 | |
| Grain Tank | m3 | 0.3 | ||
| Chassis | Type | Rubber track | ||
| Track | mm | 350×90×46 | ||
| Gear box | HST with gearbox | |||
| Drving speed | m/s(km/h) | 0.476(1.71)~2.635(9.49) | ||
| Re-thresher | Type | plank toothed | ||
| Rotor diameter/lentgth | mm | 180/1475 | ||
| Unloading | Sacked & Auto unloading | |||

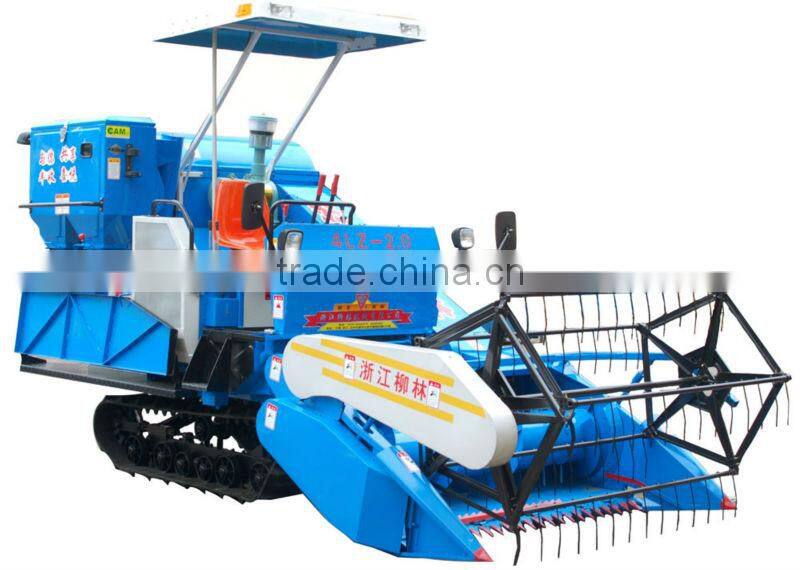

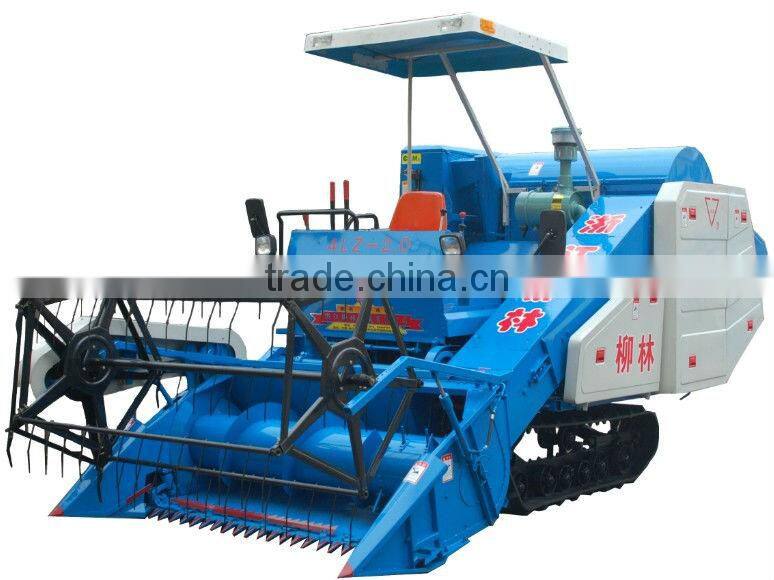

Hot Sale in liulin brand !! Mini Rice and Wheat Grain Combine Harvester- 2M harvest width with 82HP with Big grain tank
(Mobile: 0086-18968527259 )
Our factory is one of biggest and professional producer for self-propelled combine harvester in China. with more than 20 years experience in manufacture combine harvester and gain high reputation from our customers all over the world. we make sure to supply excellent combine harvester with high quality and competitive price. what's more, the best after-sale service is also avialable.
1. Brief introduce combine harvester
1) our gear box is :6+2 ( hangzhou yunnei brand, china famours brand)
YZ21-B series gearbox with large output power, strong carrying capacity, reliable steering and braking, compact structure and easy to operate. Which is adaptable for below 2.5m high-power combine harvester .
Main technical specifications:
Model: YZ21-B-type
gear type: integral-type (3 +1) × 2
Structural weight: 165 kg
clutch pulley diameter: ¢ 220
Clutch Pulley Model: B-type
Clutch: 3 often combined with Friction
Brake Type: Wet disc brake oil on paper substrates
Lubricating Oil : NO.68, anti-wear hydraulic oil
Steering Brake Type: Single Linkage, unilateral drive shaft of the maximum output torque 1500N.M
(2) two levers operation : easy to perate and more economical.
3) Large power ( we fix kunming-yunnei brand,china famous brand)
4)China famour brand, hangzhou yunnei-brand track
5) unloading auguer by hydraulic

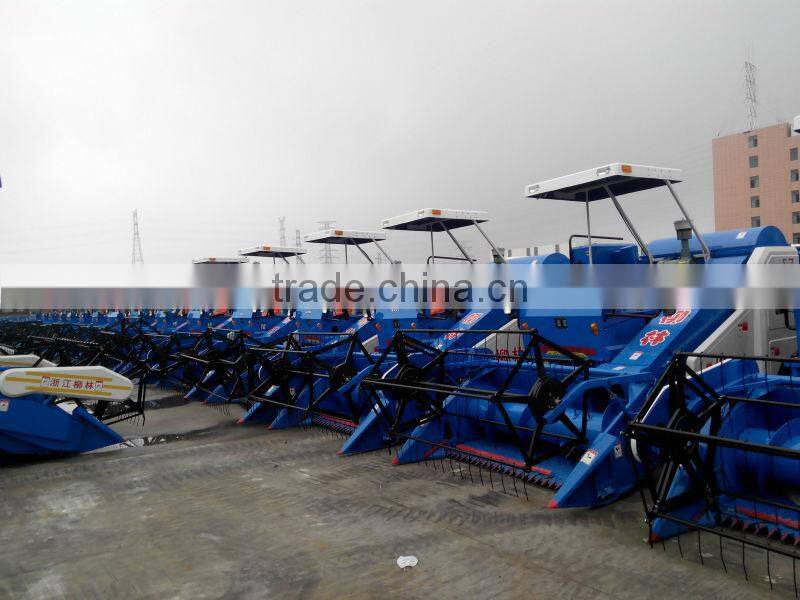

2. Working Show

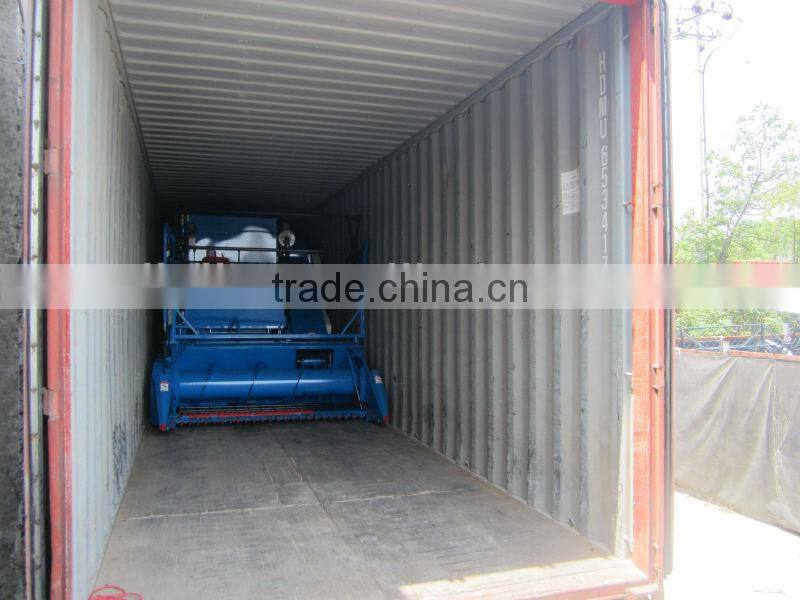

3.Packinaing Show
4.Exhibition Show

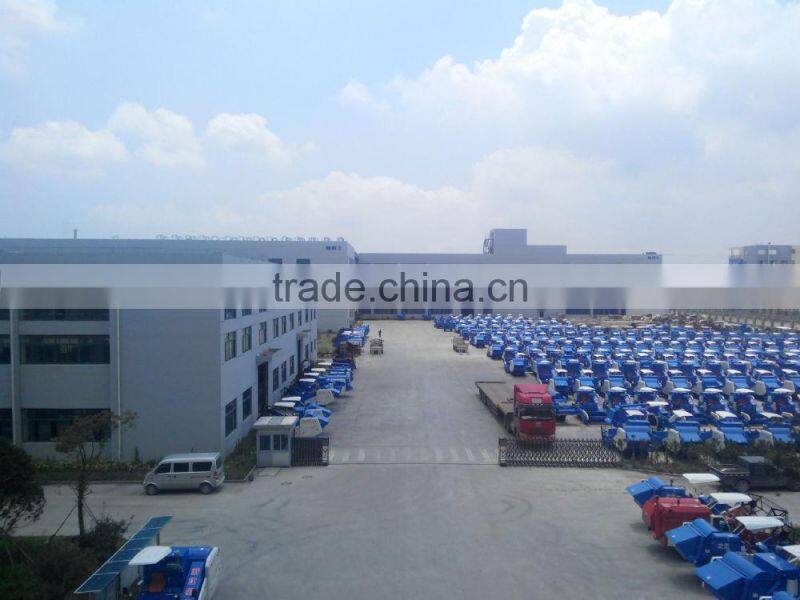

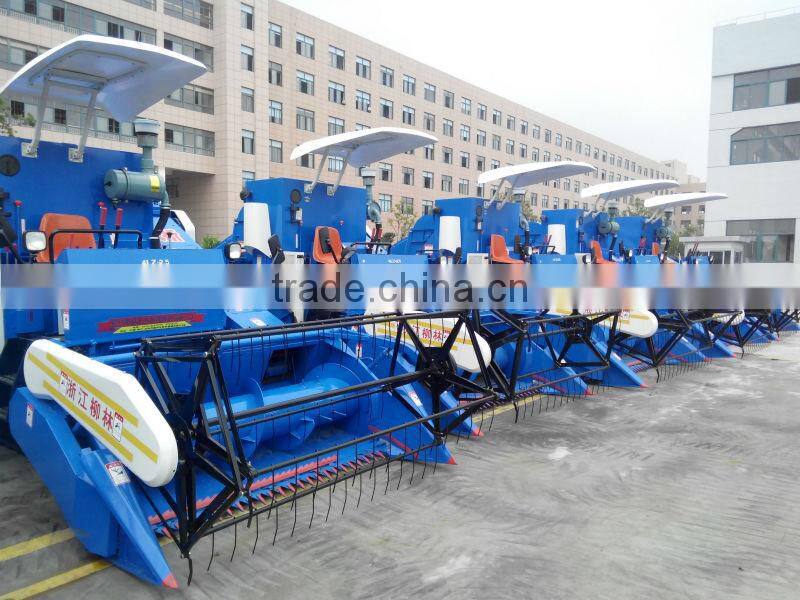

5.Company Show
6.Certication Show
