Brand Name IU
Model Number IU Vibration
Type Mini Amplifier
Channels Other, vibration
Place of Origin Guangdong, China

Specifications

Specifications
Input power:DC 5-6v
Frequency response:80HZ-18KHZ
Maximum output power:3W
Box size:120*115*82mm

1. Production brief introduction

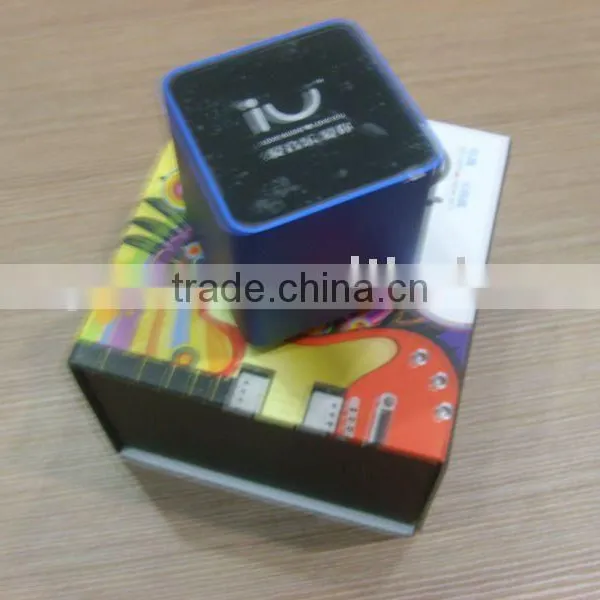

IU vibration is a magic 360 uimpeded music player which designed by the priciple of resonant. Itmakes any hard surface play euphonious musical notes, such as wood, glass, wall, metal surface etc. You can hear various materials around you, which play different music quality on diffferent sides, and you will enjoy yourself in the freedom of music. It is very small and is used to furnish audio like laptop, iphone, ipod, psp and other protable fixtures, this is no toy.



2. How to use

1) Checklist

There are IU vibration speaker, usb  cable, usage manual in the box.



2) Connection of audio and power resource



D1,

When you use it, please put it on hard surface upward, and let the pedestal touch the surface tightly, insert the mini usb port into the audio driver, the other two ports of usb cable. One of the 3.5 audio jack is to connect the pc's audio in jack. The other is to connect the pc's usb jack.

D2,

When you use it, please put it on hard surface upward, and let the pedestal touch the surface tightly, insert the TF card into the TF card port, turn the switch to TF, then you can enjoy your music! You can also insert the mini usb port into the audio driver, the other two ports of usb cable, one of the 3.5audio jack is to connect the pc's audio in jack, the other is connect the PC's usb jack, when charging the light is red, when playing, the light is blue.

3. Function parameter

D1,

Input DC voltage: DC5V+/-0.5V

Output power:3w

Frequency response: 80Hz-18KHz



D2,

Input DC voltage: DC 5V+/-0.5V

Li-ion battery inside:3.7v 1000mAH

Output power:3W

Frequency reponse:80Hz-18KHz

4.General malfunction and maintenance
ProblemPossible causeSolutions
LED lamp is not on Power adaptor is not inserted into the power outlet,
or not connected to vibration speaker
Ensure the power adapter is securely inserted to power outlet
 or vibration speaker
No sound producedUSB cable is not connected
 properly
Reconnect the usb cable
Sound is weakAudio source signal is
 weaker or volume is low,
not tightly douched on the surfaces
Adjust the audio source signal or
 increase the volume, ensure
the speaker bottom is tightly
douched on the surface
Poor musicPoor connection of audio cable,
 the surface is too soft
or the surface is not large enough
Use new audio cable,
 search more suitable surface

5. Maintenance

Keep away from corrosive liquid or gases. Do not place it in the environment of high temperature and moist, cleaning it with soft cloth. Do not use corrosive chemicals to eliminate the filth.

6. Kind Reminder

In order to enjoy high quality music, you are advised to experience in the surface of different materials. Generally, those hard and dense material are more sensitive to alt, such as glass, metal and marble etc, the material are softer and lower density perform better in bourdon, such as wood talbes, guitar etc.

MaterialSounds performance
WoodBass is good, rich
and sumptuous mid-sound
MetalStrong bass sound
PaperboardThe clarity or the sound
reduced and it feels like vinyl disc
GlassClean and transparent sound
Hollow wallGood spacious sound performance
