Home > Products > FB090 Bronze bushing > CuSn6.5 CuSn8 Bronze Bushing BPF 1015 1020 1210 1320 1425 1720 202210 3240 3550 4530 5060 6580 95100 13060 16560 230100 FB Bush

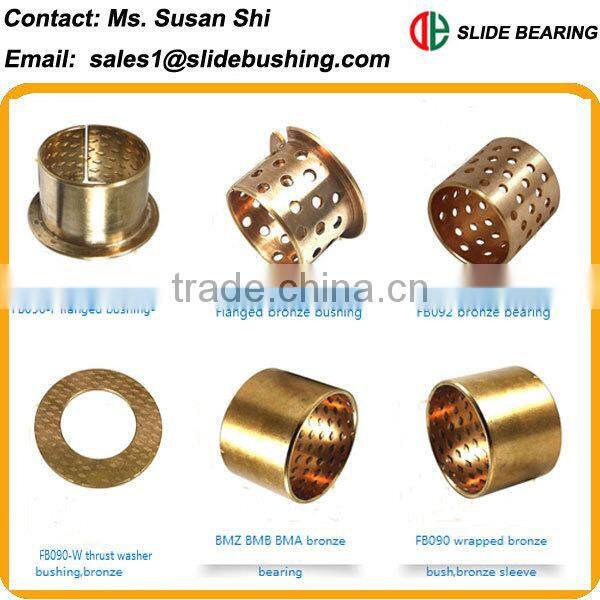

CuSn6.5 CuSn8 Bronze Bushing BPF 1015 1020 1210 1320 1425 1720 202210 3240 3550 4530 5060 6580 95100 13060 16560 230100 FB Bush
- 500000 Piece / Pieces per Month
- Shanghai Ningbo Shenshen Guangzhou
- T/T L/C D/P D/A Credit Card
You May Like
-

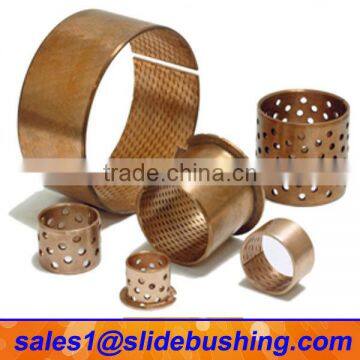

Offered with lubrication pockets, grooves or thru holes. Used for heavy load applications.Wrapped Bronze Bushings
-
SKS092 1215 1210 Slide Bearing BRM80 1420 WB802 Harden Bronze Bush
-
BRM80 1415 Bearing FB092 Wrapped Bronze Bushing With Oil Holes 14x16x15 KONTIMA AB BRM80 Bushes
-
Bronze bushes for Dishwasher Product
-
wf wb802 bushing wb-802 bronze bearing
-
DYB900 DYB905 Bronze Bush FB090 FB092 Sleeve Flange Slide Bearing FB09G FB08G Holes Bushing With Grasphite
Product Details
| Place of Origin | Zhejiang, China | Brand Name | DYB | |
| Model Number | All sliding bushing | Type | Other, sleeve/flange/washer | |
| Material | Steel+brass+ptfe+pom+graphite,ect, Brass,Bronze,copper,steel back,stai |
Product Description
Offered with lubrication pockets, grooves or thru holes. Used for heavy load applications.Wrapped Bronze Bushings
FB Bushing Reference:
These are similar to the FB090 range, except there are solid lubricants embedded into the diamond shaped lubrication indents on the bearing surface, which provide good lubrication conditions at the start up stage, even with a lack of oil. It can be used in construction machinery, gear boxes, automotive clutch parts etc.
- Feature
1. Easy of fitting and lubrication
2. High load capacity
3. Excellent wear resistance with lower friction
4. High level thermal conductivity
5. Minimum overall dimensions
6. Chemical resistance
7. Can work under dry/marginal lubrication for short period, lower friction factor at initial moving
- Technical Data
Material | FB090 | Bronze(CuSn8Pb/ CuSn6.5Pb) |
FB091 | Bronze(CuZn31Si) | |
FB092 | Bronze(CuSn8Pb/ CuSn6.5Pb) | |
FB094 | Bronze(CuSn8Pb/ CuSn6.5Pb)+Seal Rings | |
FB090G | Bronze(CuSn8Pb/ CuSn6.5Pb)+Graphite | |
Load capacity |
| 100N/mm2 |
Speed limit |
| 2m/s |
PV value limit |
| 2.8N/mm2.m/s |
Tensile Strength |
| 460N/mm2 |
Yeild Strength |
| 260N/mm2 |
Hardness |
| 90~150HB |
Mating axis required | Hardness | >=50HRC |
Roughness | Ra=0.4~1.0 | |
Friction coef |
| 0.05~0.2 |
Working temperature max. |
| 150°C |
Oil holes
- Production flow
- Size list
- Typical Application
This type of bushing is widely applied in hoisting machines and other construction machines, automobiles, tractors,
trucks, machines tools and some mineral engines. It can be fabricated into bushes, half bearings, flanged bushes, trust
washers, spherical bearing and so on.

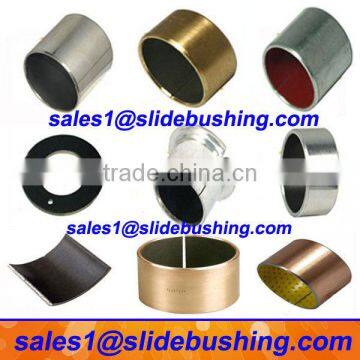

Other bushing type:
Packing:
1,Print mark logo,
2,Anti-rust oil
3,Plastic films
4,Plastic bag or paper box
5,Carton+Pallet
Shipping:
1,Delivery Time : Usually 15-20 days.Depends on your quantity.
2,Generally, Free of standard size sample within 5 days.
1,We are produce high quality and low price good wear resistance sliding bush factory
2,Our sliding bush passed the ISO TS 16949 .
3,Under the guidance of Pursuit of the excellence & keep improving.
4,We will do our best to provide the quality products and professional sevices.
Jiashan Dingyi Interaction Bearing Co., Ltd. specializes in researching and manufacturing self-lubricating oilless bushes. We can also design and produce various non-standard bearings according to clients' requirements. Qualified products and good service are guidance of our company. We will do our best to develop bushes in different fields to serve clients from at home and abroad.
Comapany R&D Center:
Automatic chamfer machine:
Inspection and Quality Control:
- ISO/TS16949 certification
Large various bushings manufacture.
