Home > Products > FB092 Bronze bushing > WF-WB802 FB092F FBB092 Wrapped Bronze Bushing Flanged With Oil Holes HB125 HB150 Hardness Bearing

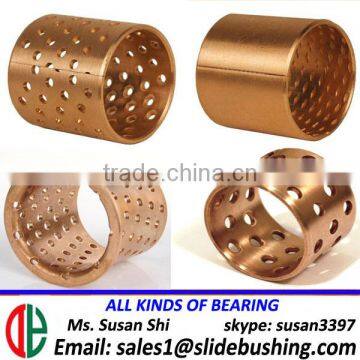

WF-WB802 FB092F FBB092 Wrapped Bronze Bushing Flanged With Oil Holes HB125 HB150 Hardness Bearing
- shanghai ningbo shenzhen changsha etc
- T/T Credit Card
You May Like
-
S-WB802 FB092H ABB092 HB125 - HB150 Oil Hole Plain Wrapped Bronze Bushing
-
WF-WB800 Bronze Bushing With Oil Pockets HB 90 - HB 150 PRMF AB 090 FB090F FBB090 Copper Plain Bush , Brass Bearing Bush
-
AB090 FB090 S-WB700 CuSn6.5P 8P Bronze Bearing Bush With Diamond Pocket Flanged Bronze Bushing
-
FB092 FB902 Bronze Wrapped Flange Bushing , Flange Full Brass Bush , WF700 WF702 Copper Sldie Bushing
-
Oilite Bronze Bushing , CuSn6.5P CuSn8P Full Copper Bushing , Brass Sheet Bush
-
Slip Ring Bearings With Hole FB090 Brass Bushing,copper Plain Bushing,Flange Bronze Bush
Product Details
| Place of Origin | Zhejiang, China | Brand Name | DYB, Jiashan Dingyi Interaction Bearing Co,LTD | |
| Model Number | DYB100 DYB200 DYB300 DYB500 DYB900 FB FU JDB DU DX | Type | Other, flanged,sleeve | |
| Material | metal,composite, Brass,Bronze,copper,steel back,stainless steel,alumin |
Product Description
Professional Manufacture for Bearings.
Produce by your Requirments. We Welcome your Inquiry!
Trade Assurance -- You will get refund up to 100% Trade Assurance Amount if the goods is not shipped on time or don't meet the quality requirements.
Pls contact me-Ms. Susan Shi to place trade assurance order.
E-mail:
Skype: susan3397
Phone:+86 13517489983
DYB900 FB Bronze Wrapped Bearing
Feature:
1. Easy of fitting and lubrication
2. High load capacity
3. Excellent wear resistance with lower friction
4. High level thermal conductivity
5. Minimum overall dimensions
6. Chemical resistance
7. Can work under dry/marginal lubrication for short period, lower friction factor at initial moving
Technical Data:
Material | DYB900 | Bronze(CuSn8Pb/ CuSn6.5Pb) |
DYB901 | Bronze(CuZn31Si) | |
DYB902 | Bronze(CuSn8Pb/ CuSn6.5Pb) | |
DYB904 | Bronze(CuSn8Pb/ CuSn6.5Pb)+Seal Rings | |
FB090G | Bronze(CuSn8Pb/ CuSn6.5Pb)+Graphite | |
Load capacity |
| 100N/mm2 |
Speed limit |
| 2m/s |
PV value limit |
| 2.8N/mm2.m/s |
Tensile Strength |
| 460N/mm2 |
Yeild Strength |
| 260N/mm2 |
Hardness |
| 90~150HB |
Mating axis required | Hardness | >=50HRC |
Roughness | Ra=0.4~1.0 | |
Friction coef |
| 0.05~0.2 |
Working temperature max. |
| 150°C |
| Supply All Various Of Bushing Bearing For 15 Years! | |||
| 8 Years Gold Supplier In Alibaba! | |||
| Contact Name | Email ID | Skype ID | |
| Ms. Susan Shi | | susan3397 | |
DYB100 PTFE DU Bushing SF-1 Oilless Bearing
DYB200 POM DX Bushing SF-2 Marginal Lubricating Bearing
DYB300 Bimetal Bearing
DYB500 JDB Solid Lubricating Bearing Bronze+Grasphit Bushing
FU Sintered Bearing Sintered Bronze/Iron Fan Bushing
Washer:
Technology & Procedure:
Packing:
1,Print mark logo,
2,Anti-rust oil
3,Plastic films
4,Plastic bag or paper box
5,Carton+Pallet
Shipping:
1,Delivery Time : Usually 15-20 days.Depends on your quantity.
2,Generally, Free of standard size sample within 5 days.
1,We are produce high quality and low price good wear resistance sliding bush factory
2,Our sliding bush passed the ISO TS 16949 .
3,Under the guidance of Pursuit of the excellence & keep improving.
4,We will do our best to provide the quality products and professional sevices.
Jiashan Dingyi Interaction Bearing Co., Ltd. specializes in researching and manufacturing self-lubricating oilless bushes. We can also design and produce various non-standard bearings according to clients' requirements. Qualified products and good service are guidance of our company. We will do our best to develop bushes in different fields to serve clients from at home and abroad.
Comapany R&D Center:
Automatic chamfer machine:
Inspection and Quality Control:
Large various bushings manufacture.
Click the following and view more details
1,DYB100 DU SF-1 Teflon bushings PAP P10
2,DYB200 DX SF-2 POM bushings PAP P20
3,DYB300 SJ/JF Bimetal steel+bronze bushings
4,DYB500 JDB SOB WF Bronze metal graphite bushings
5,DYB900 FB Bronze wrapped oilite bushings
6,DYB FU sintered bronze bush,Oilite metal sintered bushings
7,DYB BTU ball transfer unit, ball caster bearing
8,DYB FZ ball retainer, ball bearing cage
9,DYB Clutch Bearing
