Home > Products > Water Pumps > 1.5 inch 2.5hp low pressure mini 4 stroke certrifugal and agricultura irrigation gasoline water pump in china

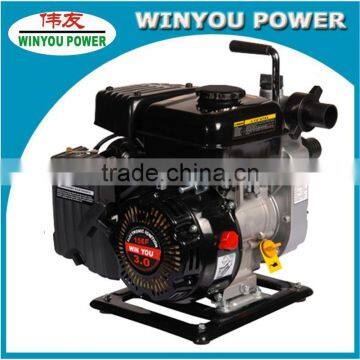

1.5 inch 2.5hp low pressure mini 4 stroke certrifugal and agricultura irrigation gasoline water pump in china
- 5000 Unit / Units per Month
- Chongqing
- T/T
You May Like
-
diesel engine water pumps for water with 6.5hp gasoline engine 2 inch
-
40mm 1.5 Inch Mini Gasoline Water Pump
-
3hp 1.5inch(40mm) Air-Cooled self-priming Gasoline Water Pump
-
WP30 3'' agriculture use water pump for agricultural irrigation with 6.5hp gasoline engine
-
50mm 2 inch High pressure water pump for fire fighting pump
-
3hp 5hp 7hp high flow rate 2" centrifugal water pump for agriculture with gasoline petrol engine
Product Details
| Place of Origin | Chongqing, China | Brand Name | winyou | |
| Model Number | 40ZB15-1.4Q | Theory | Centrifugal Pump | |
| Structure | Piston Pump | Usage | Water | |
| Power | Pneumatic | Standard or Nonstandard | Standard | |
| Fuel | Gasoline | Pressure | High Pressure | |
| Application | Other, agricultural irrigation |
Product Description
Specifications
Outlet&Inlet Dia.:40mm(1.5Inche)Flow :9m3/h
Max Lift :15m
Engine Model:154F/3hp
Specifications :
1.5 inch 2.5hp low pressure mini 4 stroke certrifugal and agricultura irrigation gasoline water pump in alibaba china
| Model No. | 40ZB15-1.4Q | 40ZB60-4.8QT | 50ZB26-4Q | 80ZB30-4.8Q | 100ZB26-5.8Q | |
| Pump | Outlet&Inlet Dia. | 40mm(1.5Inche) | 1inchex1inche x1.5inche/1.5inche | 50mm(2inche) | 80mm(3inche) | 100mm(4inche) |
| Flow | 9m3/h | 18m3/h | 25m3/h | 48m3/h | 80m3/h | |
| Max Lift | 15m | 110m | 26m | 30m | 26m | |
| Speed | 4000rpm | 3600rpm | 3600rpm | 3600rpm | 3600rpm | |
| Efficiency | 48% | 55% | 48% | 48% | 48% | |
| Self Priming Height | 4m | 3m | 6m | 6m | 6m | |
| Self-Priming Time | 180 Sec | 180 Sec | 120 Sec | 180Sec | 180Sec | |
| Gas/Petrol Engine | Engine Model | 154F | 168FB | 168FA | 168FB | 177F/177FD |
| Engine type | 4-stroke single -clinder,air-cooled | 4-stroke ,25″inclinded single -clinder,air-cooled | ||||
| BorexStroke (mm) | 54x46 | 68x54 | 68x48 | 68x54 | 77x58 | |
| Displacement(ml) | 97.7 | 196 | 163 | 196 | 270 | |
| Compression Ratio | 6.0:1 | 8.5:1 | 8.5:1 | 8.5:1 | 8.2:1 | |
| Theoretical Maximum Output Power | 1.8kw/3600rpm | 4.8kw/3600rpm | 4.0kw/3600rpm | 4.8kw/3600rpm | 6.6kw/3600rpm | |
| Rated output power | 1.4kw/3600rpm | 3.8kw/3600rpm | 3.4kw/3600rpm | 3.8kw/3600rpm | 5.4kw/3600rpm | |
| Horse Power | 3Hp | 6.5Hp | 5.5Hp | 6.5Hp | 9Hp | |
| Max Torque | 3.8N.m/3000rpm | 11N.m/3000rpm | 10N.m/3000rpm | 11N.m/3000rpm | 15.5N.m/3000rpm | |
| Ignition system | Transistorized Magneto | Non-contact Transistorized Magneto(TCL) | ||||
| Start System | Recoil Start | Recoil Start /Electric Start | Recoil Start | Recoil Start /Electric Start | ||
| Air Cleaner | Semi-dry type | Semi-dry type /Oil bath type | ||||
| Fuel Tank Capacity | 1.4L | 3.6L | 3.6L | 3.6L | 6L | |
| Fuel Consumption | ≤450g/kw.h | ≤395g/kw.h | ≤395g/kw.h | ≤395g/kw.h | ≤395g/kw.h | |
| Oil Capacity | 0.35L | 0.6L | 0.6L | 0.6L | 1.1L | |
| Packing Detail | Dimension (LXWXH)mm | 360x320x390 | 520x390x480 | 490x385x410 | 520x390x480 | 710x480x585 |
| Net Weight | 12KG | 32KG | 24kg | 28KG | 47kg | |
Gasoline water pumps are produce :
Company Introductions:
We are a specialized factory to supply gasoline engines,diesel engines,gasoline tillers,diesel tillers,gasoline water pumps,diesel water pumps,gasoline Generators and grass cutters etc . Please visit our websites at
www. http://cqweiyou.en.china.cn/
Why you should choose us :
1.10 years of manufacturing expenrience in the field of general machineries
2.Professional engineers and test equipments to ensure the quality of each machine
3. Factory direct selling at competitive prices
4. OEM service is available
5. Fast and efficient delivery service
6. Strictly quality control system
COMPANY INTRODUCTION :
Chongqing Winyou Power Co,.Ltd is one of the leading professional manufacturer of general machineris including engines(gas and diesel),power tillers (gas/diesel),water pumps(gas/diesel),generaters and grass cutters as well as other agricultural machines. Our products sell well in 30 countries of the world,including America,Europ,Africa,Midle East,Southeast Asia etc,enjoy a good reputation domestic and overseas .
