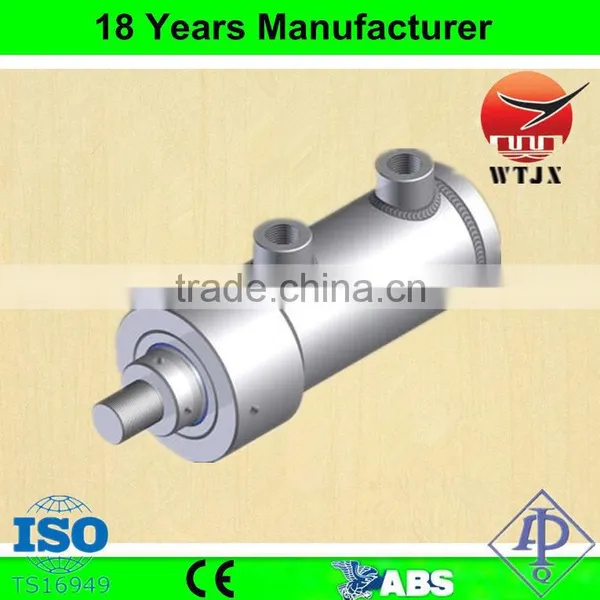

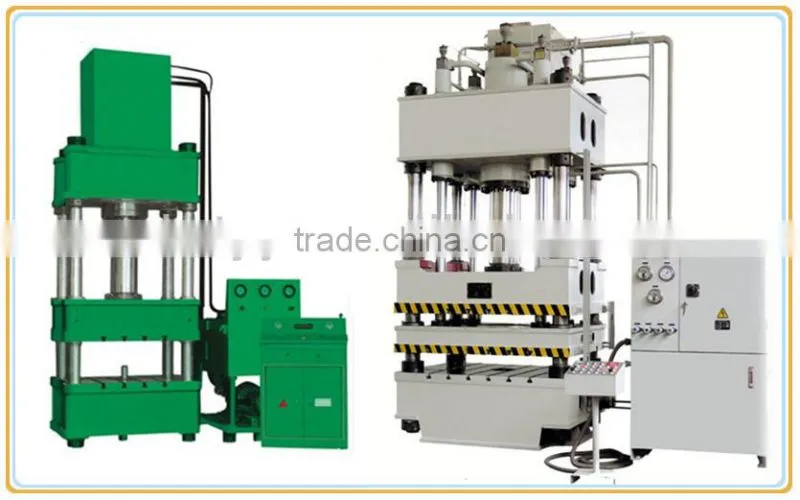

Help CenterHydraulic Cylinder for Hydraulic Press Machine
Related Products
-
Big Hydraulic Cylinders,from Shandong Province,made in ChinaUS$ 100 - 15,000MOQ: 1 Piece -
Hydraulic Rams for Trucks/coal Mining/marine/oil Drilling/agriculture Made in China/hydraulic RamUS$ 100 - 5,000MOQ: 1 Piece
-
Hydraulic Cylinder/cylinder Hydraulic/hydraulic Ram Cylinder/ram Hydraulic Cylinder Made in ChinaUS$ 100 - 5,000MOQ: 1 Piece
-
Hydraulic Cylinder for Hydraulic Press Machine Made in ChinaUS$ 30 - 1,000MOQ: 1 Piece
-
Hydraulic Cylinder 150 t Made in ChinaUS$ 100 - 5,000MOQ: 1 Piece
We are one of the biggest hydraulic cylinder manufacturer in China, specialized in design, R & D and manufacturing of hydraulic machinery products etc, with its annual production capaciy of 200000 sets.My company with 600 employees in it ,covers an area of 180000 square meters.There are 700 sets of mnufacturing equipment .
WHY CHOICE OUR FACTORY?
Reason 1: 18 years manufacturer experience .You can buy from manufacturer directly , control delivery time ,control quality based on competitive price!!!
Reason 2: Guarantee the quality from the raw material. We have cold drawing production line and nickel-chrome electroplating production line , so we can produce cold-drawing pipe and hard-chrome pipe used for hydraulic cylinder. !!!
Reason 3: After service :If the quality can’t meet your requirement ,we will pay all your lost and offer technical support to solve your problem!!!
Reason 4: Import seal kit, Parker from USA , Hallite from Britain , NOK from Japan , Trelleborg from Sweden ,Merkel from Germany,etc!!!
Reason 5: OEM and ODM!!!
1. hydraulic cylinder drawing and parameter
| Cylinder diameter One stage/Two stage(mm) | Rod diameter One stage/Two stage(mm) | Code | Nominal load bearing Capacity | Main Technical Features of Double Telescopic Column of Hydraulic Support | |||||||
| Work pressure(Mpa) | Setting load (kN) | Effective resistance(kN) | One-stage stroke(mm) | Two-stage stroke(mm) | Mounting distance(mm) | Spherical radius of column head(mm) | Spherical radius of cylinder head(mm) | Diameter of connection bore of column head(mm) | |||
| 200/140 | 185/130 | F091-30 | 36.6 | 944.8 | 1150 | 743 | 751 | 1290 | 75 | 100 | 54 |
| 200/140 | 185/130 | GF091-30 | 38.2 | 942 | 1200 | 696 | 704 | 1385 | 75 | 75 | 54 |
| 200/140 | 185/130 | GF54-69 | 39 | 951 | 1205 | 746 | 763 | 1435 | 75 | 100 | 52 |
| 210/160 | 190/140 | Z068-30 | 37.5 | 1090 | 1300 | 810 | 780 | 1200 | 75 | 100 | 47 |
| 210/160 | 190/140 | Z068-46 | 36.7 | 1015 | 1240 | 805 | 790 | 1106 | 75 | 100 | 52 |
| 230/180 | 220/160 | Y033-30 | 38.5 | 1308 | 1600 | 963 | 920 | 1371 | 75 | 100 | 45 |
| 230/180 | 220/160 | Y066-45 | 39.6 | 1410 | 1690 | 980 | 960 | 1405 | 75 | 100 | 50 |
| 230/180 | 220/160 | F055-30 | 32.5 | 1246 | 1390 | 740 | 765 | 1270 | 75 | 100 | 54 |
| 230/180 | 220/160 | F075-30 | 37 | 1307.8 | 1550 | 757 | 732 | 1320 | 75 | 85 | 54 |
| 230/180 | 220/160 | H10003-30 | 35 | 1290.6 | 1454 | 1050 | 1025 | 1673 | 80 | 100 | 54 |
| 250/180 | 235/160 | ZTF650-31 | 33.1 | 1546 | 1625 | 655 | 655 | 1410 | 75 | 75 | 45 |
| 250/180 | 235/160 | Y146-31 | 36.7 | 1546 | 1800 | 503 | 478 | 947 | 80 | 100 | 59 |
| 250/180 | 235/160 | F007-30 | 39.7 | 1546 | 1800 | 600 | 575 | 1044 | 80 | 100 | 59 |
| 280/200 | 260/185 | F058-30 | 34.5 | 1938 | 2125 | 1050 | 940 | 1570 | 90 | 125 | 64 |
| 280/200 | 260/185 | TY073A-30 | 34.5 | 1938 | 2125 | 1300 | 1190 | 1820 | 90 | 125 | 64 |
| 280/200 | 260/185 | ZFG900-300 | 36.5 | 1940 | 2250 | 824 | 777 | 1591 | 90 | 125 | 64 |
| 320/230 | 295/210 | Y029-30 | 42.4 | 2532 | 3400 | 1055 | 1005 | 1470 | 100 | 150 | 64 |
| 320/230 | 295/210 | ZT/SLJ320c | 42.3 | 2533 | 3400 | 1065 | 1085 | 1515 | 100 | 185 | 64 |
| 360/270 | 340/230 | ZF86-30 | 42.2 | 3206 | 4293 | 840 | 846 | 1280 | 100 | 200 | 58 |
| 360/270 | 340/230 | Y190A-30 | 42.3 | 3206 | 4300 | 759 | 765 | 1265 | 100 | 200 | 58 |
| 360/270 | 340/230 | GY042-30 | 42.3 | 3206 | 4300 | 1040 | 1020 | 1800 | 90 | 200 | 58 |
| 400/290 | 380/260 | GY027-31 | 43 | 3956 | 5400 | 1285 | 1280 | 2290 | 110 | 220 | 60 |
| 400/290 | 380/260 | ZY120Q.03 | 43 | 3956 | 5400 | 1200 | 1170 | 2180 | 110 | 220 | 60 |
| 500/380 | 470/355 | ZT/SLJ500b | 42 | 6185 | 8247 | 1810 | 1805 | 2448 | 140 | 280 | 65 |
1.Hydraulic cylinder is the most important component in hydraulic systems, it will transfer hydraulic energy into mechanical energy, and is matched with various transmission mechanism, to complete a variety of mechanical motion.
2.Hydraulic cylinder has the advantages of simple structure, large output force, stable and reliable performance, easy maintenance, wide application.

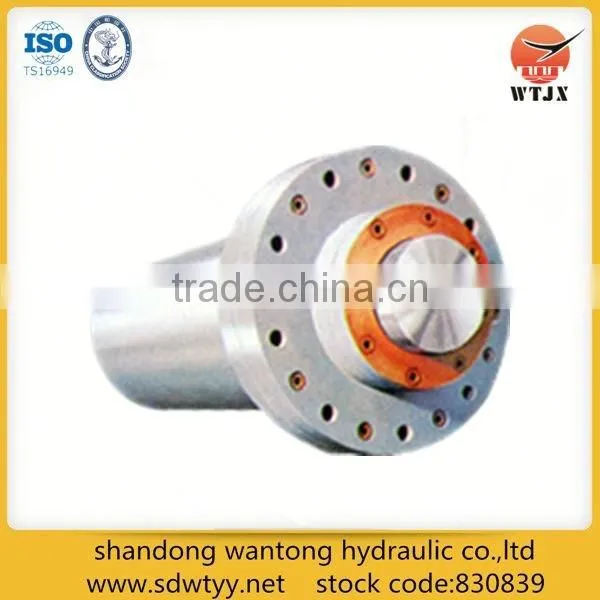

2.hydraulic cylinder products showcase
3.hydraulic cylinder produce line
700 sets manufacturing equipment,such as cold drawing production line ,heat treatment production line ,surface treatment production line,testing equipment,various digital-control machining equipment,gantry style linear electroplating production line.
4.hydraulic cylinder quality guarantee system
Program before Delivery
1. Trial Operation Test
2. Start-up Pressure Test
3. Pressure-Tight Test
4. Leak Test
5. Full Stroke Test
6. Buffer Test
7. Testing the Effect of Limit
8. Load Efficiency Test
9. Reliability Test
Every piece of hydraulic cylinder are tested and will send out only after they are pasted the each test.
Our company has abundant technical force and perfect testing means. By making wide technical and business cooperation with many related enterprises, universities, colleges and institutes both at home and abroad, and employing senior engineers and software engineers, we have greatly strengthened and improved our designing, processing, and testing abilities.
5.certificates
