Refuse equipment or Garbage trucks are critical in our society. Built to rugged and high quality standards, we rely on this equipment to keep our streets clean. The brute force and high duty cycle of the hydraulic system is critical to maximize efficient operation.

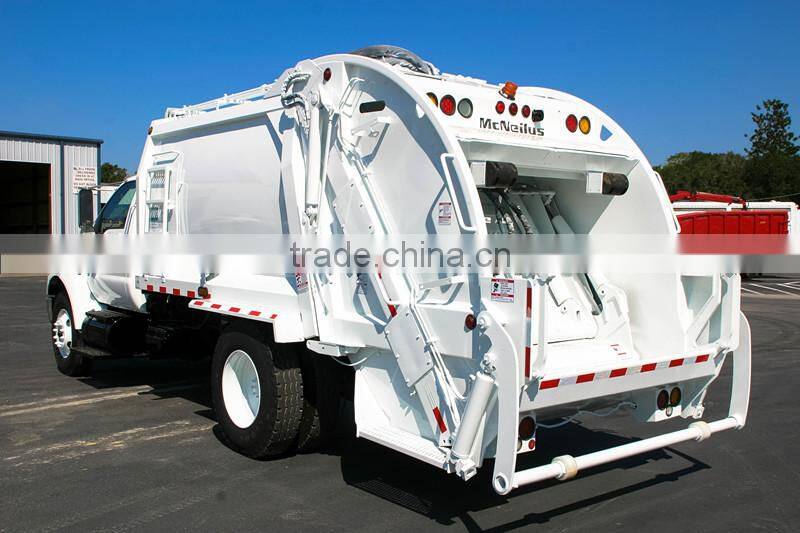

A rear loader of garbage truck has an opening at the lower rear portion of the body. Individual trash containers are manually dumped into this opening. A hydraulic paddle or blade is activated periodically to push the trash forward into the body. Rear loaders are usually used to pick up trash in residential areas. They have capacities of about 20-30 cu yd (15.3-23.0 cu m) and require a crew of two or three.
Used in the hydraulic system of various kinds of compressed garbage trucks, the compressed garbage truck hydraulic cylinders include pushing cylinder, sliding cylinder, scraping cylinder and lifting cylinder. The pushing cylinder, the most special one among those, is a double-action telescopic hydarulic cylinder with inlet and outlet ports on the rod end. The special piston seal has been adopted through oil port in cylinder and to reduce the inter-leakge in the piston seal system. The sliding cylinder, scarping cylinder and lifting cylinder look like the HSG hydraulic cylinder model 1301. Some of the lifting cylinders are plunger piston cylinder. Its features are reasonable in structure, reliable in operation and convenient in assembly and disassembly, easy in maintenance.
Our standard product parameter:
Item | Bore (mm) | Rod diameter (mm) | Stroke (mm) | Working pressure (MPa) |
Pushing cylinder | 160 | 140 | 2415 | 16 |
125 | 105 | 2415 | 16 | |
90 | 70 | 2415 | 16 | |
Sliding cylinder | 80 | 50 | 1045 | 21 |
Scraping cylinder | 90 | 45 | 430 | 16 |
Turning barrel cylinder | 63 | 35 | 250 | 16 |
Lifting cylinder | 90 | 45 | 420 | 16 |
The special designs are also available according to the user requirement and special technical parameters.
Company introduction:
We are one of the biggest hydraulic cylinder manufacturer in China, specialized in design, R&D and manufacturing of hydraulic machinery products. Our factory covers an area of 180,000 square meters with 600 employees in it. Its annual production capacity is 200,000 sets with 700 manufacturing equipment.
Why choose our factory?
Reason 1: there are over 120 kinds of hydraulic cylinder for you to choose, including cylinder used for coalmine machinery, tippers, engineering machinery and marine equipment. Every year many new products are developed to meet customer's diversified requirement.
Reason 2: we own over 10 production line and 700 sets of prodution equipment to satisfy customer's large demand in short delivery time.
Reason 3: strict quality control and assurance system from raw material to finished products to guarantee high quality requirement.
Reason 4: national and international standard recognition
