Home > Metallurgy, Mineral & Energy > Steel & Products > Steel Sheet & Plate > Best Quality Sinter Bi-metal Sheet, Copper Steet Strips

Best Quality Sinter Bi-metal Sheet, Copper Steet Strips

Nanchang Ganjiang Bush Factory Gold Verified Supplier

5Yrs

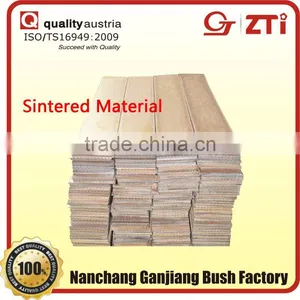

Best Quality Sinter Bi-metal Sheet, Copper Steet Strips thumbnail-1

Best Quality Sinter Bi-metal Sheet, Copper Steet Strips photo-1

US$ 0.01 - 3 MOQ: 500 Pieces

Key Specifications

Get Latest Price

Standard:

AISI, ASTM, BS, DIN, GB, JIS

Grade:

Steel+Copper

Thickness:

0.5-5mm

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Any Chinese Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Standard AISI, ASTM, BS, DIN, GB, JIS

Grade Steel+Copper

Thickness 0.5-5mm

Place of Origin Jiangxi, China

Brand Name GJ

Model Number bimetal strips

Type Other, Steel Plate, Bimetal Strip / Bimetal Steel Strip / Bearing Strip

Technique Other, Sintered

Surface Treatment Other, Oil

Application Other

Special Use High-strength Steel Plate

Width 99

Length 770

Specifications

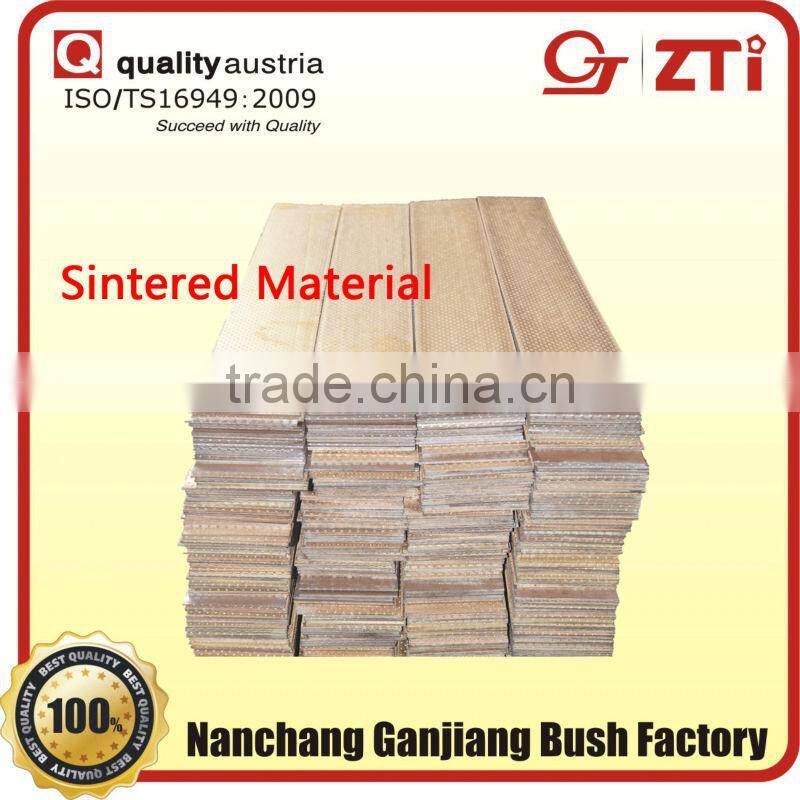

Best Quality sinter bi-metal sheet, copper steet strips
1.One year warranty.
2.Custom-made.
3.Competitive Price.

Factory Supply Competitive Price and High Quality

Sinter bi-metal sheet, copper steet strips,

Main Products:

We supply Original OEM grade bimetal bushing for 15 years with TS16949

Our bimetal material is the best!

Professional Service For You, Custom-made All You Need

Bimetal Sheet:

1.Thickness of steel bracking: 0.6~5mm

2.Thickness of alloy: 0.2~2.0mm

3.Alloy material:

JF700(CuPb30) SAE 797 SAE 48
JF720(CuPb24Sn4) SAE 794
JF750(CuPb24Sn1) SAE 49
JF800(CuPb10Sn10) SAE 792
JF850(CuSn6Zn6Pb3)
JF930(CuSn6.5P0.1)
FB09G(CuSn10P10+ Graphite)
FB08G( CuSn10P10+ Graphite)

4.Max applicable temperature: 260°C

5.Friction coefficient: ≤0.10

6.Alloy hardness: 30-110 HB

Learn More Details For Bimetal Bushing As Below:

Bimetal Bushing is composed of high quality low carbon steel and bronze with the characters of wear high speed, high load capacity, very compact dimensions, low wear. It is most suitable for petrol engines, diesel engines, civil engineering equipment, Lift,air-conditioning and gear boxes, speed boxes, industrial vehicles, steel plate springs, joints etc.

We also supply Brass Bushing, Self-Lubricating Bushing, Oilless Bushing etc...

Work Flow In Our Factory

Details For JF Series For Your Reference As Below:

Notice: If you need more about other Series, please feel free to contact us!

	JF800	JF810	JF820	JF830	JF840	JF850	JF800G
Material	CuPb10Sn10	CuPb24Sn4	CuPb24Sn1	AlSn20Cu	CuPb30	CuSn6.5P0.1	CuPb10Sn10 +Graphite
Alloy hardness (HB)	60~90	45~70	40~60	30~40	30-45	60~90	60~90
Operating Temperature ( °C )	-40~260	-50~200	-50~200	-40~150	-40~280	-40~260	-40~260
Coefficient of friction	≤0.12	≤0.12	≤0.12	≤0.17	≤0.16	≤0.14	≤0.12
Corresponding International Code	SAE-797 JIS-LBC3 GGB-SY GLYCO-66 FEDERAL MOGUL-HF2 DAIDO-L10 ACL-F100 DIN-CuPb10Sn	SAE-799 JIS-LBC6 GLYCO-68 DAIDO-L23 ACL-F250	SAE-49 ACL-F780	SAE-783 JIS-AJL GLYCO-74 ACL-F820	SAE-48 JIS-KJ3		SAE-797 JIS-LBC3 GGB-SY GLYCO-66 FEDERAL MOGUL-HF2 DAIDO-L10 ACL-F100 DIN-CuPb10Sn
	Please contact us to get more details(PV,Load,capacity,Speed)
Certification	ISO/TS16949:2009 ISO9001:2000
Tolerance	Ø&L Min 0.02mm
Packing	Rust-proof paper / Carton box / PP bag
MOQ	500 pieces
Delivery Time	Sample: 7days Mass:15-45days
Remarking Our factory is specialized in doing OEM/ODM products according to customer's drawings or samples. Warrenty: 3 years or 50000KM (OEM Grade) 1 years (Marketing) Any RFQ, Please feel free to send your drawings( CAD, PDF ) For quotation.

ABOUT OUR FACTORY

A Company You Can Trust:
Nanchang Ganjiang Bush Factory is one of the leading manufacturers of automotive spare parts in the middle of China. We have our own factories and have been providing premium quality OEM bushings and auto rubber parts for over 14 years. We supply qualified auto spare parts, suspension parts (leaf spring bushings, arm bushings, rubber buffers, strut shock mounts, bimetal bushings, etc.), engine parts (conrod bushings, spindle bushings / bearings, camshaft bushings, engine mounts, etc.), rubber parts and sintered bushings ( SF-1, SF-2, JF800, JF-20, JDB, JFB, FB, etc.).

Cutting-Edge Service - Customization:
We can find the best solutions to your needs, and provide you with professional custom services. All of them are free of charge.

Quality and Safety:
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products have attained ISO/TS16949:2009 Certification.

Your Success, Our Glory:
Our aim is to help customers attain their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us.
