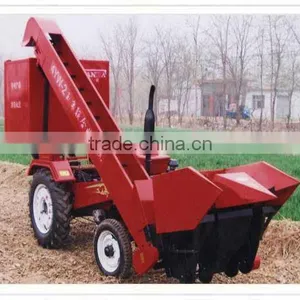

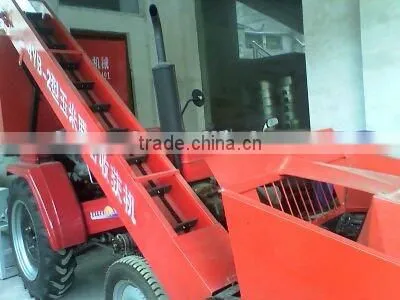

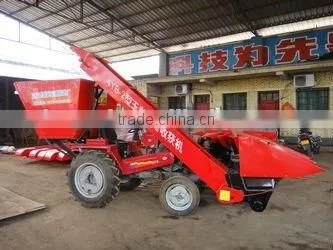

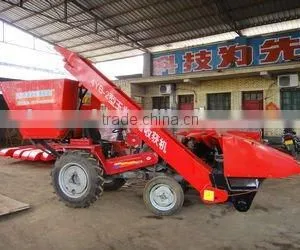

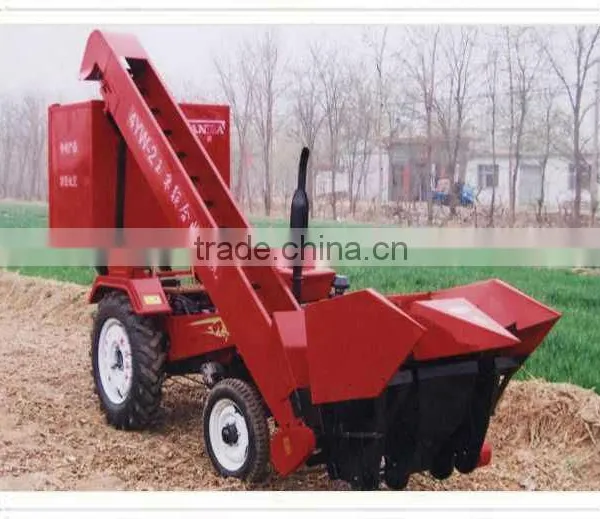

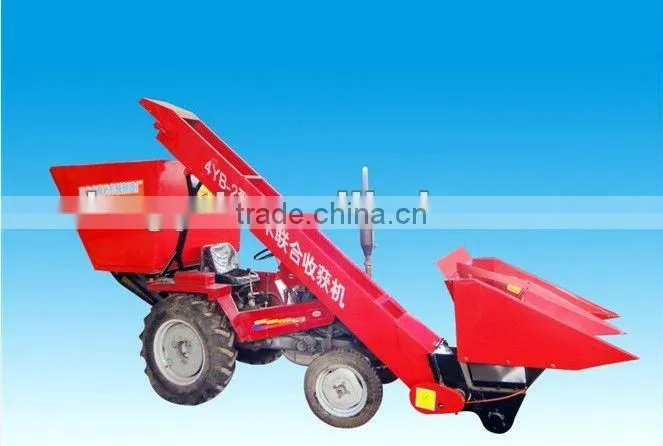

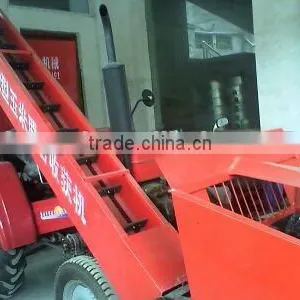

corn combine harvester
- 10 Set / Sets per Month
- Qingdao
- T/T
- Sale SEW equivalent parallel-shaft helical gearbox F Series gear box
- F series solid shaft helical gear reducer parallel shaft transmission box
- RV series mini worm gear box
- RV series low RPM turbo worm and gear reducers
- rv Worm and Worm Ger Calculation Industrial Gear Reducer
- NMRV RV 030-130 Series worm and gear wheel speed reducer
Product Details
Condition: | New | Application: | corn | Type: | Combine Harvester |
Drive Type: | Gear Drive | Usage: | Corn Harvester | Place of Origin: | Henan, China |
Brand Name: | Telon | Model Number: | 4YB-2 | Dimension(L*W*H): | 4500x1300x2650mm |
Weight: | 600kg | Certificate: | CE | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Quick Details:
Condition: | Application: | Type: | |||
Drive Type: | Usage: | Place of Origin: | |||
Brand Name: | Model Number: | ||||
Weight: | Certificate: | Warranty: | |||
After-sales Service Provided: | color: | engine power: | |||
working efficiency: | working rows: |
Packing & Delivery
Packing details: standard export packing
Delivery details: 10 working days after receiving deposit
Features of the corn harvester:
1. Easy operation, safely driving , durable and easy mending;
2. The machine has one ceiling to ovoid the sunshine;
3. The driver will have one good sight in front;
4. Strong adaptability, stable preformance, high working efficiency;
Brief introduction of the corn harvester:
Small corn combine harvester machine has the features of scientific and reasonable design, powerful function. This corn combine harvester machine can pick sticks, crush and return straw, and peel at one time. And then the corn is conveyed to dump bin by the conveyor, after that, corn can be unloaded directly to the transport vehicle of the corn combine harvester machine. The whole process is accomplished with the corn combine harvester machine automatically. At the same time, the attrition rate is small, normally 2% or less.
Working principle of the corn combine harvester
This corn combine harvester machine mainly has cut rod device, transmission device, hydraulic elevator, etc. When start to work, this corn combine harvester machine goes forward along the ridge direction of corn; the cutter to cut the corn straw, and straw is output through upper, middle and lower three conveying chain on the right side of the direction with naturally put, thus finish the harvesting.
Power separation is the pilot operating tractor hydraulic lift system, to promote host up to the stop position, and the two type B triangles will stop running to cut off the diesel engine power input which realize the separation of power. Then cutters and conveyer belt will stop running. Otherwise, the corn combine harvester machine will be in a state of rotation.
Technical Parameters:
Model | 4YB-2 | 4YZ-3A | 4YZC-5 | 4YZC-4C |
Matched power | 18-32HP | 115HP | 164HP | 128HP |
Capacity | 0.3-0.5 hm2/h | 0.36-0.54 hm2/h | 0.5~1.2hm2/h | 0.33~0.58 hm2/h |
Working rows | 2 | 3 | 5 | 4 |
Peeling rate | 70-85% | 70-85% | >85% | >85% |
Grain loss rate | ≤2% | <2% | <1.5% | <1.5% |
Breakage rate | ≤1% | <1% | <1% | <1% |
Outside size | 4.5x1.3x2.65m | 6.4x2.15x3.45m | 9.3x3.05x3.8m | 7.5x2.3x3.55m |
Weight | 600kg | 4850kg | 9100kg | 6100kg |
