2016 Best Sale & High Quality Multifunction Oil Press Machine

2016 Best Sale & High Quality Multifunction Oil Press Machine photo-1
2016 Best Sale & High Quality Multifunction Oil Press Machine photo-2
2016 Best Sale & High Quality Multifunction Oil Press Machine photo-3
2016 Best Sale & High Quality Multifunction Oil Press Machine photo-4
2016 Best Sale & High Quality Multifunction Oil Press Machine photo-5
US$ 2,000 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Usage:
Rapeseed Oil
Type:
Other, Cold & Hot Pressing Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port & Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Usage Rapeseed Oil
Type Other, Cold & Hot Pressing Machine
Automatic Grade Automatic
Production Capacity 98%
Place of Origin Henan, China
Brand Name Talon
Model Number 6YL-80/6YL-100/6YL-125
Voltage 220V/380V
Power(W) 4-15kw
Dimension(L*W*H) 1700*1100*1600mm/1900*1200*1600/2280*1400*2200
Weight 880-1460kg
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

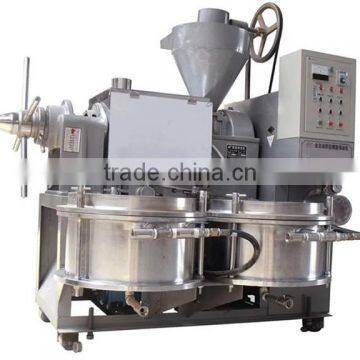

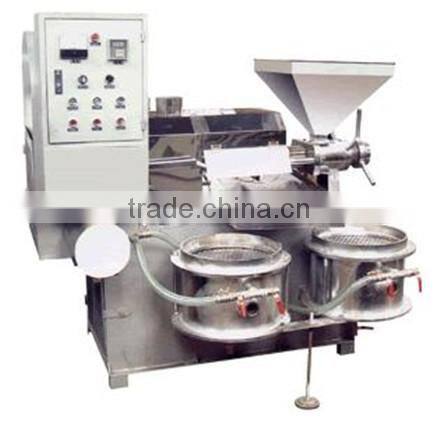

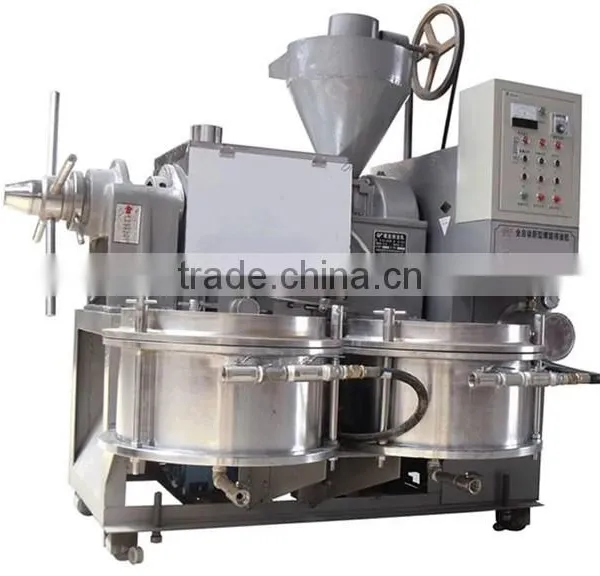

Introduction of oil press machine :

Oil press machine covering small area characterizad by low investment, strong adaptability and high efficiency of oil production , etc. This oil press machine is composed of feeder, gearbox, pressing cage,screw shaft and machine stand etc. This oil press machine is in accordance with the standard JB/T9793.1-1999 for screw oil presses.It canpress many kinds of plant seeds, such as peanut, cotton seed, sunflower seed,sesame,soybean,cocoa bean,rapeseed,etc.



This kindof oil machine utilizas the screw shaft which is setup with different styles of screws and rotates when machine is rnning to push the material into chamber.Then the oil is separated out through the extrusion of pressing worm and pressing ring.



Type         6YB-80         6YB-100         6YB-125
   Pressing        bolt         diometer        φ80mm        φ100mm          φ125mm
   Pressing    bolt rotate      speed       35r/min         37r/min          34r/min
     Main          machine       power         4kw  (Y132M-6)         7.5kw               (Y132m-4)        15kw          (Y160L-4)
   Vacuum pump power        0.55kw            (Y801-4)         1.1kw               (Y802-4)         2.2kw              (Y90S-4)
   Heater        power        2.2kw          3kw        3.75kw
  Processor     80-120kg/h    150-230kg/h     300-350kg/h
   Weight        880kg         1100kg         1460kg
 Size(mm) 1700*1100*1600 1900*1200*1600 2280*1400*2200





   Application         range    Oil extraction             rate

Dry cake remant        oil rate

     Sesame         42-55          ≤7%
      Peanut         40-50          ≤8%
    Rapeseed         28-28          ≤8%
   Sunfiower           seed         30-38          ≤8%
    Soybean          10-16          ≤7%





2016 Best sale & High quality multifunction oil press machine2016 Best sale & High quality multifunction oil press machine2016 Best sale & High quality multifunction oil press machine2016 Best sale & High quality multifunction oil press machine2016 Best sale & High quality multifunction oil press machine2016 Best sale & High quality multifunction oil press machine2016 Best sale & High quality multifunction oil press machine



2016 Best sale & High quality multifunction oil press machine
