Corn Oil Expeller

Quick details:

Packing & Delivery:

Packing details: single machine by wooden case, whole productionline by containers

Delivery details:10 working days after receiving 50 percent of deposit.

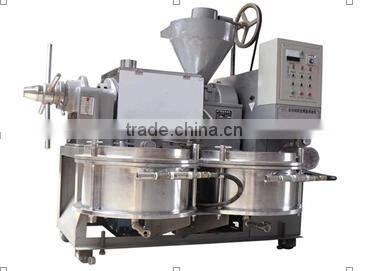

Oil expeller

The Features of the Full-auto Oil Press:

1. Energy Saving: The electric power can be reduced by 40% under the same output. For example, the machine can save 6 kilowatt at an average of one hour. In that case, it could save about 30 RMB per day.
2. Labor Saving: 60% labor can be saved under the same output. One or two person can organize the production. It can save about 40 RMB of labor cost every day.
3. Widely Usage: The machine is multi-function. It can process more than 20 kinds of oil crops, such as, peanut, linseed, sesame, rapeseeds, sunflower, cottonseeds, soybean, etc.
4. Oil Pure: Vaccum filter can filter the residue and ensure the oil quality. The oil can meet the standard of health quarantine.
5. Small Area Covering: 10 ~ 20  m²can meet the production needs.

Operation principle:

   This kind of screw oil presses utilizes the screw shaft which is setup  with different styles of screws and rotates when machine is running to push the material into chamber.Then the oil is separated out through the extrusion of pressing worm and pressing ring.

   When oil press is operating, prepared materials enter the es-truding chamber from the hopper and then moves forwards by the rotating pressing. Screwed and is pressed. Under the high pressure will be created, which also creates friction and relative movement amon material particles. On the other hand, root diameter of the pressing screw varies larger from one end to the other hence, when rotating, it not only pushes particles moving but turns them outwards as well. Meanwhile particles adjacent the screw will rotate along with screw’s rotating, causing every particle adjacent the screw will rotate along with screw’s rotating, causing every particles insides the chamber to posses different speed. Therefore, relative movement among particles creates heat which is necessary duting manufac-turing because of helping protein change properly, damage col-loid, increase plasticity, decrease oil, elasticity, resulting in high oil productivity.

Raw Material:
