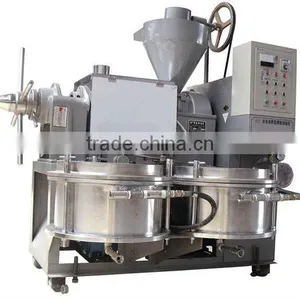

easy operation best price high quality screw oil press
- 10 Set / Sets per Month
- Qingdao Shanghai
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Usage | Peanut Oil | |
| Type | Other, Cold & Hot Pressing Machine | Automatic Grade | Automatic | |
| Production Capacity | 80-800kg/h | Place of Origin | Henan, China | |
| Brand Name | Telon | Model Number | 6YZ | |
| Voltage | 380v | Power(W) | 5.5-30kw | |
| Dimension(L*W*H) | 2100*1680*1750mm | Weight | 700kg, 780 kg | |
| Certification | ce | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
high quality screw oil press1. easy to operate
2. Adequate quality
3. The oil yield could

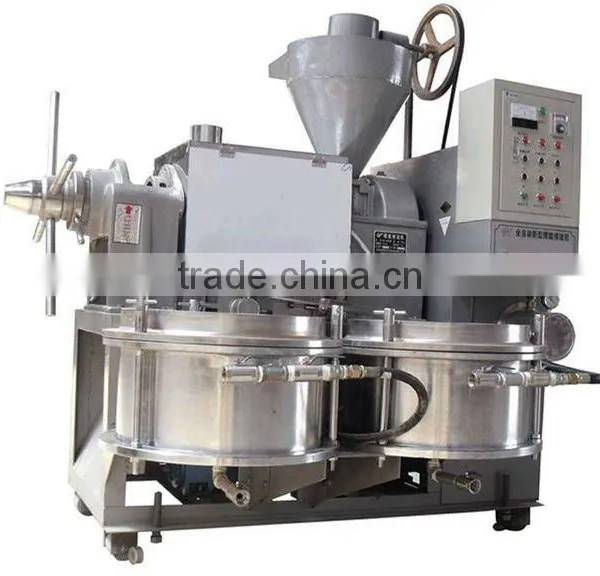

Oil press oil expeller :
This kind of Oil Machine utilizes the screw shaft which is setup with different styles of screws and rotates when machine is running to push the material into chamber. Then the oil is separated out through the extrusion of pressing worm and pressing ring.
Rawmaterials:
Process:
Data:
Technical parameter/ Model | TL-80 | TL-100 | TL-120 | TL-150 | |
Diameter of worm section | 80mm | 100mm | 120mm | 150mm | |
Rotary speed of worm section | 50-60 r/min | 40 r/min | 36 r/min | 45 r/min | |
Diameter of inscribed circle of press boring | 82mm | 102mm | 122mm | 152mm | |
Equipped force | Main frame | 5.5 KW | 7.5 KW | 11 KW | 15 KW |
Vacuum pump | 0.55 KW | 0.75 KW | 1.1 KW | 1.1KW | |
heater | 3 KW | 3.5 KW | 4 KW | 6KW | |
Capacity | 80-150kg/h | 150-250kg/h | 260-400kg/h | 230-500kg/h | |
Weight | 780kg | 1100kg | 1500kg | 1800kg | |
Overall dimension (L*W*H) | 1800*1300*1750 | 1980*1450*1800 | 2100*1680*1750 | 2300*1700*1800 | |
Materials/ Parameter | Oil productivity(%) | Material bread thick | Residual oil rate(%) |
Sesame | 45-55 | 1.0-1.5 | ≤6 |
Peanut | 40-50 | 0.5-2.0 | ≤6 |
Rapeseed | 30-45 | 0.8-1.8 | ≤6 |
Sunflower seed | 32-42 | 1.0-1.5 | ≤6 |
Soybean | 12-18 | 0.8-1.5 | ≤6 |
Cotton seed | 11-25 | 1.0-2.0 | ≤6 |
Walnut | 42-52 | 0.8-1.5 | ≤6 |
Flax | 32-38 | 1.0-1.8 | ≤6 |
Tea seed | 26-38 | 1.0-2.0 | ≤6 |
Pictures:
Welcome to vosit our factory!
