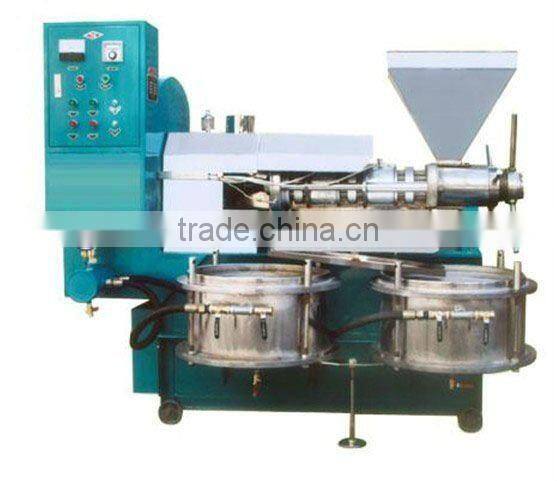

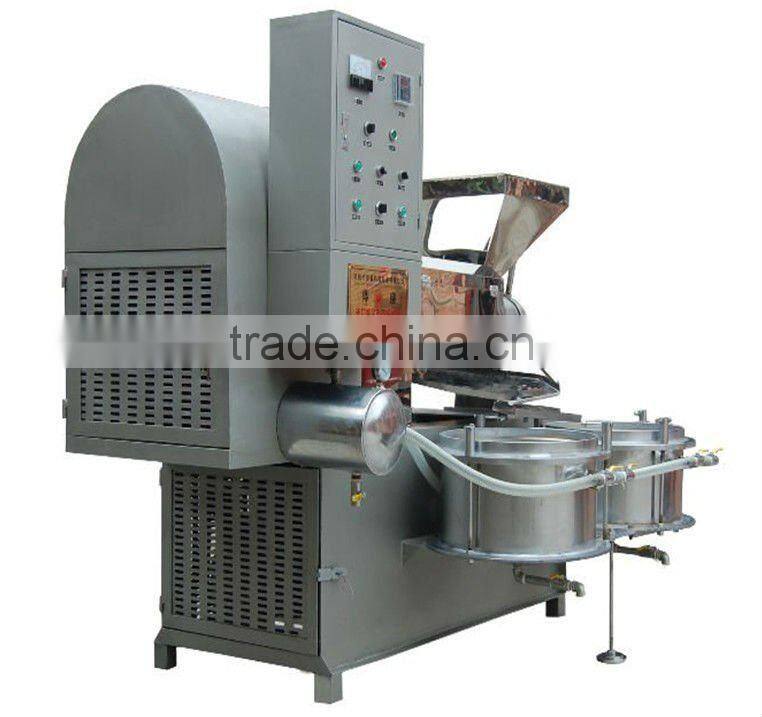

Full Automatic Olive Oil Press Machine

Full Automatic Olive Oil Press Machine photo-1
US$ 1 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Usage:
Olive Oil
Type:
Other, Cold & Hot Pressing Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Usage Olive Oil
Type Other, Cold & Hot Pressing Machine
Automatic Grade Automatic
Production Capacity 98%
Place of Origin Henan, China
Brand Name Telon
Model Number TL-100
Voltage 220V/380V
Power(W) 7.5kw
Dimension(L*W*H) 1700*1100*1600mm
Weight 1100kg, 1100 kg
Certification ISO
After-sales Service Provided Engineers available to service machinery overseas

Usage of olive oil press machine:

New type olive oil press machine collect advanced technology, and its materials can be sesame seed, peanut seed, rape seed, cotton seed, sunflower seed, coconut, soybean seed, tea seed and so on.

  Full Automatic Olive Oil Press Machine

Features of olive oil press machine:

1. Higher oil yield

2. High productivity

3. Automatic temperature

4. Filter oil automatically

5. Convenient and safe.

6. Durable in use and multifunctional

  Full Automatic Olive Oil Press Machine

Characteristics of olive oil press machine:

1. Higher oil yield: directional pressure-bearing, multilevel promotion, the oil yield increase by 10%-30%

2. High productivity: It strengthens feeding system and increases the advancing speed, so the working efficiency will be improved by more than 30%

3. Automatic temperature control: It can control the temperature automaticly when it is pressing, and it is built in vacuum shunt, the oil and residue can be apart.

4. Filter oil automatically: Using air negative pressure principle and Vacuum diversion technologythe oil and residue can be separated effectively.

5. Convenient and safe: concise structure, small occupation area, it adopt the fully enclosed protection, convenient and safe operation.

6. Durable in use: The machine body use the high quality wear-resistant steel and anti-fatigue casting, stable performance and long-time and continuous working

7. The coconut oil mill surface is coated by lastest material and it is good adhesion, heat resistant, greasy resistant, not only elegant appearance, but also clean.

Full Automatic Olive Oil Press Machine

Parameters of olive oil press machine:

Technical parameter/ Model

TL-80

TL-100

TL-120

TL-150

Diameter of worm section

80mm

100mm

120mm

150mm

Rotary speed of worm section

50-60 r/min

40 r/min

36 r/min

45 r/min

Diameter of inscribed circle of press boring

82mm

102mm

122mm

152mm



Equipped force

Main frame

5.5 KW

7.5 KW

11 KW

15 KW

Vacuum pump

0.55 KW

0.75 KW

1.1 KW

1.1KW

heater

3 KW

3.5 KW

4 KW

6KW

Capacity

80-150kg/h

150-250kg/h

260-400kg/h

230-500kg/h

Weight

780kg

1100kg

1500kg

1800kg

Overall dimension  (L*W*H)

1800*1300*1750

1980*1450*1800

2100*1680*1750

2300*1700*1800



The oil yield of several kind of raw materials:

Materials/ Parameter

Oil productivity(%)

Material bread thick

Residual oil rate(%)

Sesame

45-55

1.0-1.5

≤6

Peanut

40-50

0.5-2.0

≤6

Rapeseed

30-45

0.8-1.8

≤6

Sunflower seed

32-42

1.0-1.5

≤6

Soybean

12-18

0.8-1.5

≤6

Cotton seed

11-25

1.0-2.0

≤6

Walnut

42-52

0.8-1.5

≤6

Flax

32-38

1.0-1.8

≤6

Tea seed

26-38

1.0-2.0

≤6



Spare parts of olive oil press machine:

Full Automatic Olive Oil Press Machine

Full Automatic Olive Oil Press MachineFull Automatic Olive Oil Press Machine

Full Automatic Olive Oil Press Machine



Other olive oil press machine:

 Full Automatic Olive Oil Press MachineFull Automatic Olive Oil Press Machine
