1.Introduction

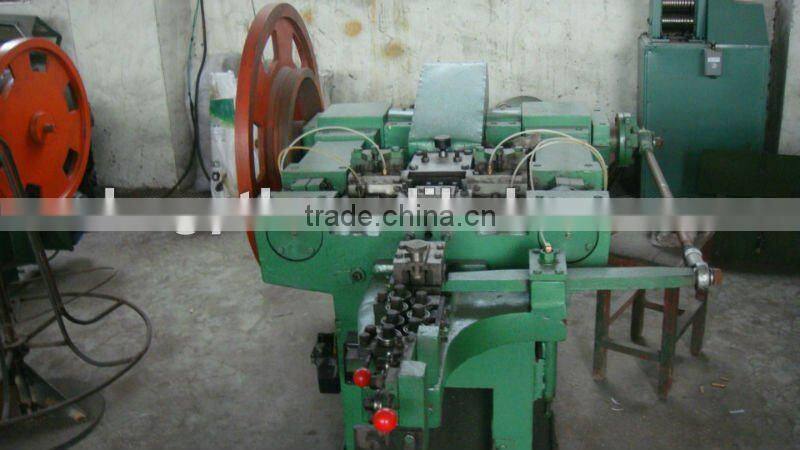

The Z94C automatic nail making machine adopts plunger and oil pipe lubricating structure so as to ensure the features such as high speed, low noise and less impact. Especially, it can make the high quality of asphalt felt nails and other special nail used for high speed coil nail welder and coil nailer.
Availability of Raw Material: normal wire, new metal wire,waste rebar,scrap steel bar, hard-drawn wire, Waste electrode, and other kind of waste steel,
2.Parts of nail making machine
Supply relative spare parts: nail mold, nail knife, punch pin.
3.Technical data
Technical data |
Z94 -5.5C |
Z94 -4C |
Z94 -3C |
Z94 -2C |
Z94 -1C |
Dia of nail |
3.7-5.5mm |
2.8-4.5mm |
1.8-3.4mm |
1.2-2.8mm |
0.9-1.6mm |
Length of nail |
80-150mm |
50-100mm |
30-75mm |
16-50mm |
9-25mm |
capacity(pcs/min) |
200 |
280 |
320 |
350 |
450 |
power |
5.5kw |
4kw |
3kw |
2.2kw |
1.5kw |
Overall dimension |
2.4*1.8*1.7m |
2.2*1.6*1.65m |
2*1.4*1.4m |
1.7*1.3*1.4m |
1.5*1.3*1.2m |

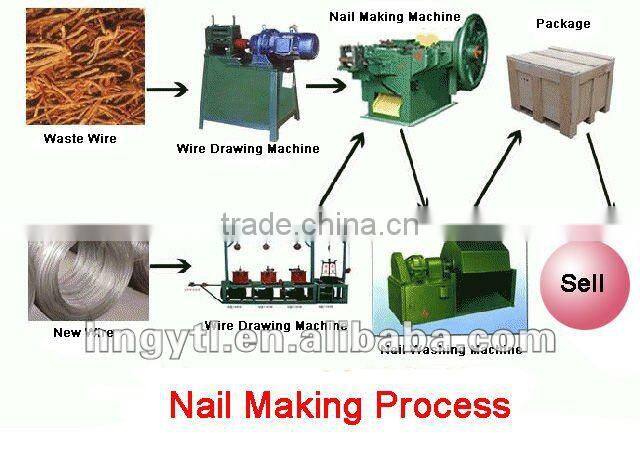

4.Process
wire-rod → wires-drawing → nail-making → polishing → packing → delivery
