TL-H500 Horizontal Wire Drawing Machine for Nail Making Machine

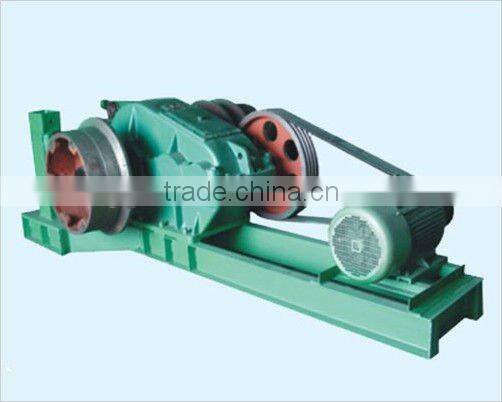

TL-H500 Horizontal Wire Drawing Machine for Nail Making Machine photo-1
US$ 1 - 800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Inlet Diameter:
8mm
Outlet Diameter:
2.0mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Lianyungang
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Inlet Diameter 8mm
Outlet Diameter 2.0mm
Place of Origin Henan, China
Brand Name Telon
Model Number TL-H500
Voltage 380V
Power(W) 11-15KW
Dimension(L*W*H) 500
Weight 1300kg
Certification ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

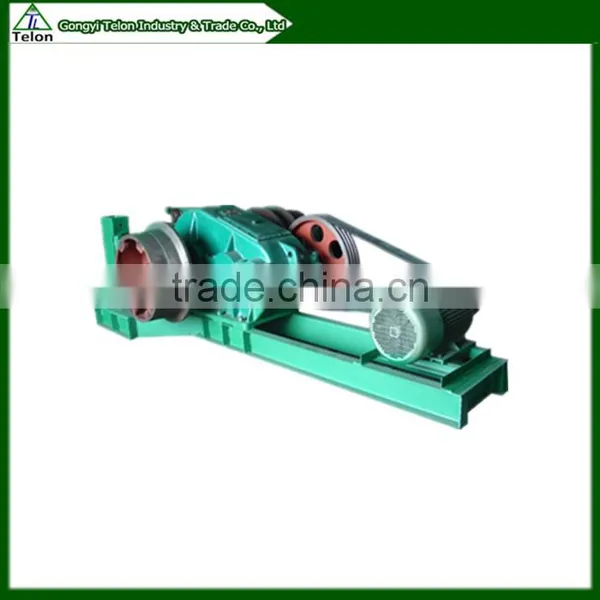

TL-H500 Horizontal Wire Drawing Machine for Nail Making Machine

Usage of horizontal wire drawing machine:
The set of the machines is a ideal equipment drawing wire stock of high,medium and carbon steel,as well as copper,alumium, and alloy,the machines are applied to drawing wire in the factories such as wire-steel factory ,metal mesh factory ect.
The equipment consists of main reduction box,die casing,wheel frame,sash brace and selcteical control system.The spinning drawing blocks are driven by JZT series motor,with gear coupling runs changeful gears to reduce speed.The drawing blocks are verticaly fixed in sealed box body. The gear pair are lubricated with oil.
In order to lower residual heat on the surface of the block, the cooling means is installed in interwall of the block.The wortle is soaked in cooling water to reduce its working temperature.
The machine runs with carvl or linkage.The safety halt gear is installed by the position of operating block.
TL-H500 Horizontal Wire Drawing Machine for Nail Making Machine

The data of horizontal wire drawing machine:

Model
TL-H500
TL-H400
Wire drawing specification (mm)
8-2
6.5-2
Reel specification(mm)
Φ500
Φ400
Rotational speed (r/min)
25
25
Motor power (kw)
11-15
7.5-11
Voltage (v)
380
380
Weight (kg)
1300
1100
Equipped with JZQ-type reduction box
500
400
