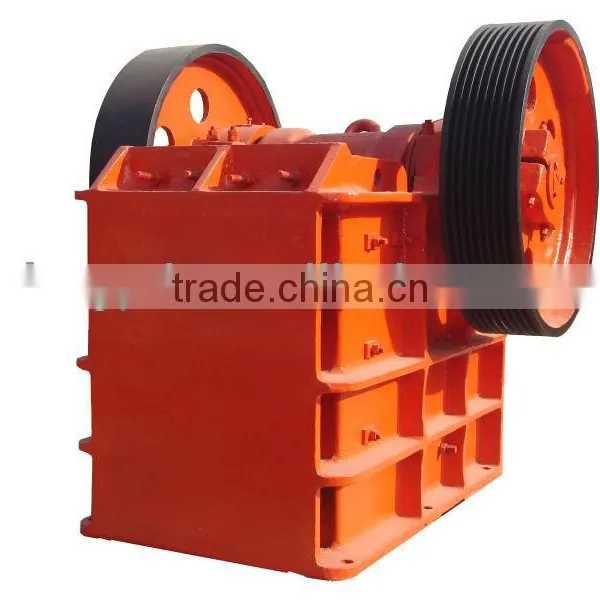

Stone Jaw Crusher
Jaw Crusher is a crushing plant which appears early and is widely used. Owing to its advantages of simple and sturdy structure, large reduction ratio, uniform granularity, easy maintenance and lower cost, it is introduced in building, metallurgy, chemical industry, refractory material, ceramics industry departments to crush all kinds of ores or rocks whose compressive strength is not higher than 320MPa.
Recently, our company to meet the requirements of crushing micro carbon ferrochrome which is high strength and high hardness in some departments has researched and produced strong power Jaw Crusher. Among them, the large and medium-sized Jaw Crushers are involved key products in our company, and are in absolutely leading leave in China's heavy machinery.
Jaw crusher — Product feature
Jaw crusher is mainly composed of frame, eccentric shaft, large belt pulley, flywheel, side guard plate, bracket, toggle plate, back stand of toggle plate, gap adjusting screw, restoring spring, movable jaw and fixed jaw. It is made of high-strength manganese steel and molded at a time. Jaw Crusher is suitable for primary and secondary crushing of all kinds of minerals and rocks, with the advantages of high abrasion resistance, high compression strength, and long operating life and so on.
Jaw crusher — Product application
Jaw Crusher is widely used in mining, building materials, chemical industry, metallurgy, highway and railway, water conservancy and so on.
Jaw Crusher--Working Principle:
Jaw Crusher is driven by the electric motor though belt and belt pulley to make the movable jaw plate up and down by the help of eccentric shaft. When the movable jaw plate comes down, the angle between movable jaw plate and fixed jaw plate becomes small, the material in the space between movable jaw plate and fixed jaw plate (crushing chamber) will be pressed, crooked and crushed. However, when the movable jaw plate comes up, the angle becomes large, and the material will go down by the gravity. Each cyclical motion of the movable jaw plate will get the material crushed one time and fall down a little. Eventually, the material is broke into the expected particles and then discharged after certain motion.
Jaw Crusher-- Characters:
1) Big capacity: That the applied of short toggle plate, lower hanging and large pivot angle has made the crushing chamber deep and have no dead zone. So, the capacities of feeding and discharging are improved largely.
2) Sturdy structure: The frame is made of tempered steel of high quality. It is very sturdy and durable.
3) Flexible parts: The discharging opening's adjusting device is lined to make sure large adjusting range.
4) Energy conservation: As to one machine, 30% electricity is conserved comparing others; to the whole system plant, more than half electricity is conserved.
Technical Parameter:
Model | Charging Part Dimension (mm) | Charge Granularity (mm) | Discharge Granularity Rang ( mm) | Output (t/h ) | Motor Power ( kw) | Weight ( kg) | Dimension (L×X×H) (mm) |
PE150×250 | 150×250 | 130 | 15-45 | 1-4 | 5.5 | 1100 | 875×745×935 |
PE150×750 | 150×750 | 120 | 10-40 | 5-16 | 15 | 3500 | 1215×1520×1030 |
PEX200×1000 | 200×1000 | 160 | 20-55 | 6.9-24 | 22 | 6100 | 1470×1930×1202 |
PEX200×1200 | 200×1200 | 210 | 15-50 | 10-32 | 37 | 6345 | 1530×1964×1380 |
PEX250×1200 | 250×1200 | 210 | 15-50 | 13-40 | 45 | 8900 | 1530×2164×1380 |
PEX300×1300 | 300×1300 | 250 | 30-90 | 10-65 | 75 | 12600 | 2000×2320×1930 |
PEX400×600 | 400×600 | 340 | 40-90 | 12-39 | 30 | 6300 | 1650×1588×1050 |
PE500×750 | 500×750 | 425 | 50-100 | 45-75 | 55 | 12500 | 1956×1918×1920 |
PE600×900 | 600×900 | 500 | 75-120 | 30-75 | 75 | 21000 | 2250×2733×2280 |
PE750×1060 | 750×1060 | 630 | 95-130 | 70-130 | 110 | 27506 | 2531×2455×2783 |
PE900×1200 | 900×1200 | 750 | 95-165 | 95-180 | 132 | 50800 | 3100×2760×3260 |
PE1200×1500 | 1200×1500 | 950 | 115-195 | 250 | 220 | 106000 | 3710×3446×4075 |
PE1500×1800 | 1500×1800 | 1200 | 135-225 | 350 | 280 | 138000 | 5100×4700 |
