Simple discription of sugarcane bagasse briquette machine:
1.Good quality sugarcane bagasse briquette machine;
2.2 patents
2.High capacity and density
3.High wearable degree
4.Low consumption.
Usage of sugarcane bagasse briquette machine:
This machine can take sawdust, wood, rice husk, coconut shell, peanut shell and other woody materials into briquettes, which can be used for boiler, heating and warming and making charcoal.
Working principle of sugarcane bagasse briquette machine:
Briquetting is a process that biomass is compressed under high pressure and high temperature.
The lignin content that occurs naturally in biomass is liberated under high pressure and temperature. Lignin serves as the glue in the briquetting process, thus binding, compressing the biomass to form into high density briquettes.
During this process, no binder needs to be used. So the output briquette is a type of clean and green fuel that is ideal for use in furnace, boilers and open fires. The density of the briquettes is 900-1400kg/m2.
Information of sugarcane bagasse briquette machine:
1.Our sugarcane bagasse briquette machine awarded 2 patents ( patent number: 200530100650.5, 200520031212.2).
2.The sugarcane bagasse briquette machine shows the features of big capacity, low energy consumption, compact and durable.
3.Many performance data of sugarcane bagasse briquette machine such as capacity, coal bar density, electric consumption and wearable degree have reached advanced level.
4.Our newly developed sugarcane bagasse briquette machine can be used as charcoal powder shaping machine by replacement of some spare parts.
Data of sugarcane bagasse briquette machine:
Type | Power | Output | Inlet particle size | Dimension | Material humidity |
TL-III | 11kw | 90-110kg/h | ≤5mm | 1.67*0.68*1.55m | ≤12% |
TL-IV | 15kw | 120-140kg/h | ≤5mm | 1.65*0.6*1.6m | |
TL-V | 18.5kw | 190-220kg/h | ≤5mm | 1.65*0.6*1.6m | |
TL-VI | 22kw | 280-300kg/h | ≤5mm | 1.65*0.6*1.6m |

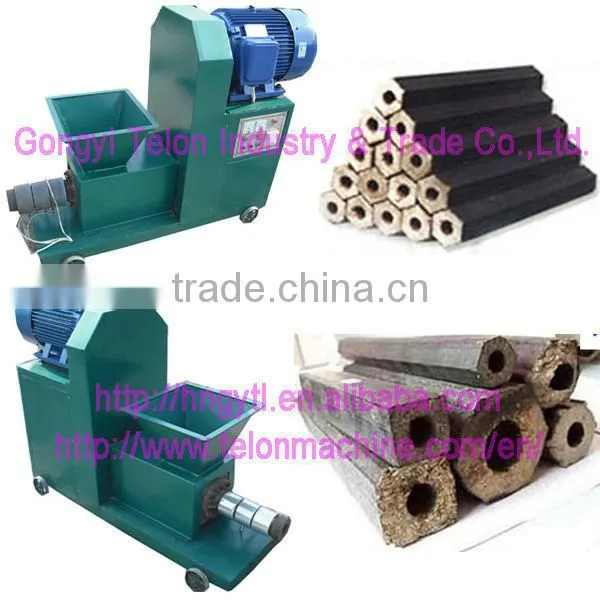

The briquettes from sugarcane bagasse briquette machine:

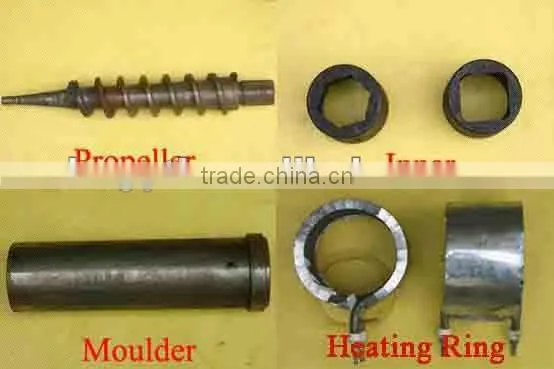

The easy wear parts of sugarcane bagasse briquette machine:
