Simple discription of wood biomass briquette machine:
1.Good quality wood biomass briquette machine;
2.2 patents
2.High capacity and density
3.High wearable degree
4.Low consumption.
Usage of wood biomass briquette machine:
This wood biomass briquette machine can take sawdust, wood, rice husk, coconut shell, peanut shell and other woody materials into briquette, which can be used for bioler, heating and warming and making charcoals.
Working Priciple of wood biomass briquette machine:
Briquetting is a process that biomass is compressed under high pressure and high temperature.
The lignin content that occurs naturally in biomass is liberated under high pressure and temperature. Lignin serves as the glue in the briquetting process, thus binding, compressing the biomass to form into high density briquettes.
During this process, no binder needs to be used. So the output briquette is a type of clean and green fuel that is ideal for use in furnaces, boilers and open fires. The density of the briquettes is 900-1400kg/m2.
Wood biomass briquette machine:
1.Our wood biomass briquette machine awarded 2 patents ( patent number: 200530100650.5, 200520031212.2).
2.This kind of wood biomass briquette machine shows the features of big capacity, low energy consumption, compact and durable.
3.Many performance data of briquette machine such as capacity, coal bar density, electric consumption and wearable degree have reached advanced level.
4.Our newly developed sawdust biomass briquette machine can be used as charcoal powder shaping machine by replacement of some spare parts.
Data of wood biomass briquette machine:
Type |
Power |
Output |
Inlet particle size |
Dimension |
Material humidity |
TL-III |
11kw |
90-110kg/h |
≤5mm |
1.67*0.68*1.55m |
≤12% |
TL-IV |
15kw |
120-140kg/h |
≤5mm |
1.65*0.6*1.6m |
|
TL-V |
18.5kw |
190-220kg/h |
≤5mm |
1.65*0.6*1.6m |
|
TL-VI |
22kw |
280-300kg/h |
≤5mm |
1.65*0.6*1.6m |

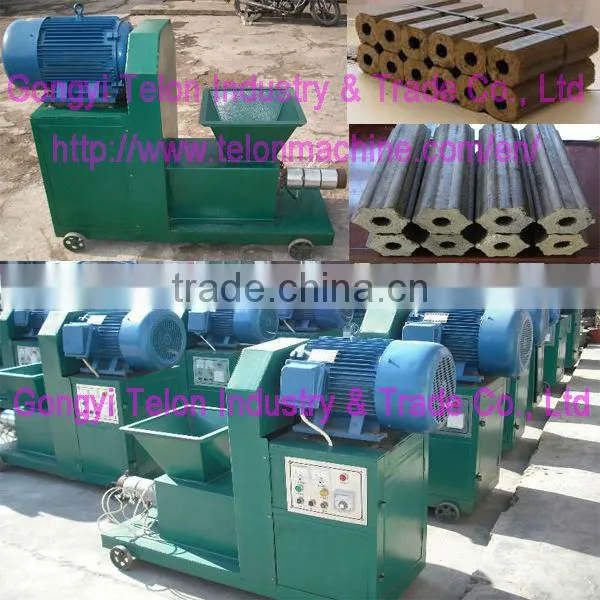

The pictures show of wood biomass briquette machine:

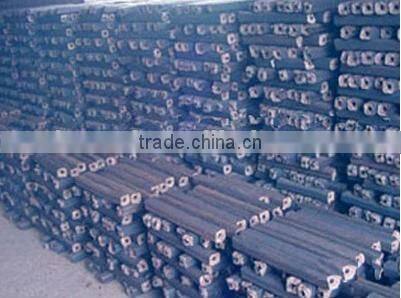

The briquettes from wood biomass briquette machine:
