Simple discription of biomass briquette making machine:
1.Good quality biomass briquette making machine;
2.2 patents
2.High capacity and density
3.High wearable degree
4.Low consumption.
Usage of biomass briquette making machine:
This machine can take sawdust, wood, rice husk, coconut shell, peanut shell and other woody materials into briquette, which can be used for bioler, heating and warming and making charcoals.
Working Priciple of biomass briquette making machine:
Briquetting is a process that biomass is compressed under high pressure and high temperature.
The lignin content that occurs naturally in biomass is liberated under high pressure and temperature. Lignin serves as the glue in the briquetting process, thus binding, compressing the biomass to form into high density briquettes.
During this process, no binder needs to be used. So the output briquette is a type of clean and green fuel that is ideal for use in furnaces, boilers and open fires. The density of the briquettes is 900-1400kg/m2.
BBQ Charcoal biomass briquette making machine:
1.Our BBQ Charcoal briquette making machine awarded 2 patents ( patent number: 200530100650.5, 200520031212.2).
2.The Charcoal briquette making machine shows the features of big capacity, low energy consumption, compact and durable.
3.Many performance data ofCharcoal briquette making machinesuch as capacity, coal bar density, electric consumption and wearable degree have reached advanced level.
4.Our newly developed Charcoal briquette making machine can be used as charcoal powder shaping machine by replacement of some spare parts.
Data of biomass briquette making machine:
Type |
Power |
Output |
Inlet particle size |
Dimension |
Material humidity |
TL-III |
11kw |
90-110kg/h |
≤5mm |
1.67*0.68*1.55m |
≤12% |
TL-IV |
15kw |
120-140kg/h |
≤5mm |
1.65*0.6*1.6m |
|
TL-V |
18.5kw |
190-220kg/h |
≤5mm |
1.65*0.6*1.6m |
|
TL-VI |
22kw |
280-300kg/h |
≤5mm |
1.65*0.6*1.6m |

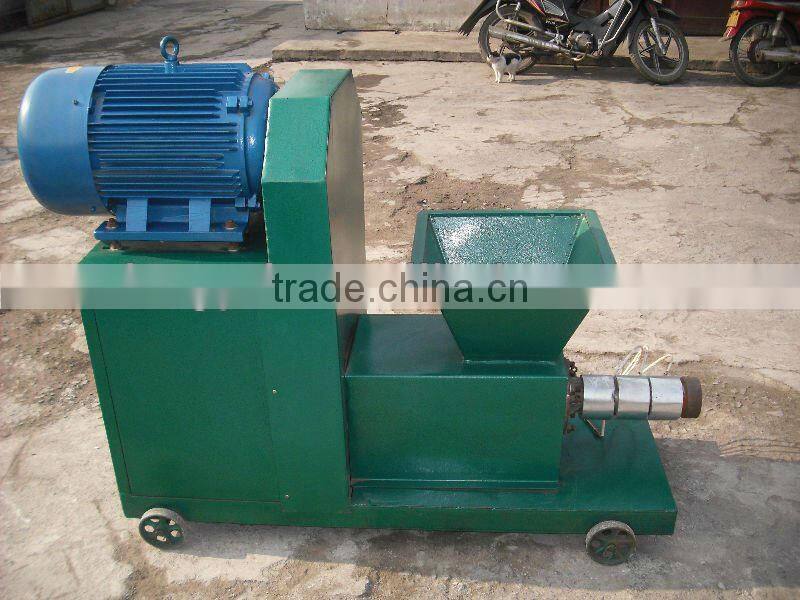

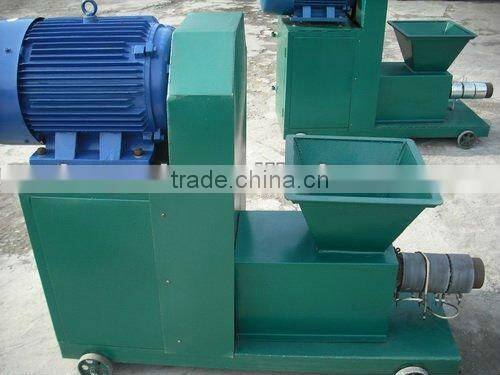

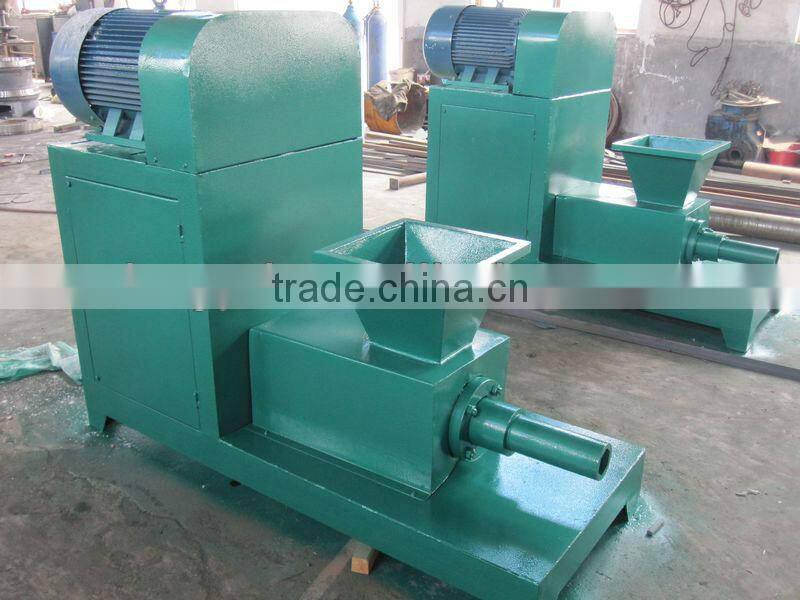

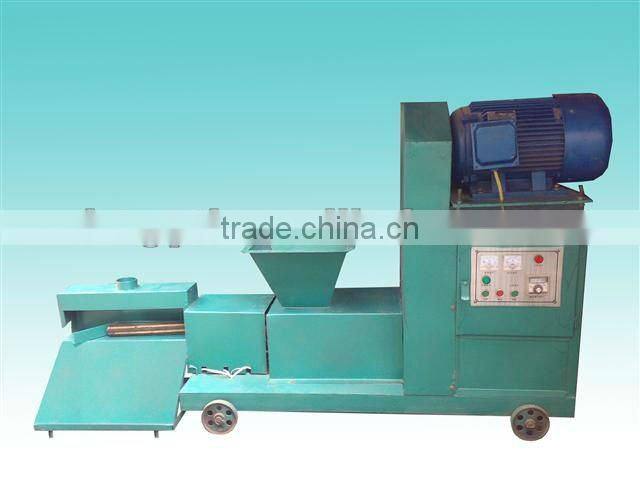

The pictures of biomass briquette making machine:
The briquettes from biomass briquette making machine:
