Charcoal Briquette Machine Coconut Shell Charcoal Briquette Ball Press Machine

Charcoal Briquette Machine Coconut Shell Charcoal Briquette Ball Press Machine photo-1
Charcoal Briquette Machine Coconut Shell Charcoal Briquette Ball Press Machine photo-2
Charcoal Briquette Machine Coconut Shell Charcoal Briquette Ball Press Machine photo-3
Charcoal Briquette Machine Coconut Shell Charcoal Briquette Ball Press Machine photo-4
Charcoal Briquette Machine Coconut Shell Charcoal Briquette Ball Press Machine photo-5
Charcoal Briquette Machine Coconut Shell Charcoal Briquette Ball Press Machine photo-6
US$ 1,000 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Production Capacity:
4ton/h
Motor Type:
AC Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Production Capacity 4ton/h
Motor Type AC Motor
Power(W) 7.5kw
Place of Origin Henan, China
Brand Name Telon
Model Number TL-360
Dimension(L*W*H) 1460*1460*2040mm
Certification CE,ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Introduction of charcoal briquette ball press machine

The briquette machine is widely used in mining industry, metallurgy and chemical industry to press difficult molding powder materials such ascoal , Charcoal,iron , sludge, slag , gypsum, tailings , kaolin , activated carbon, coke powder, ferrous powder,non-ferrous powder and other ends into pillow,diamond,round and other shapes briquettes.





Working principle of  charcoal briquette ball press machine

Briquetting is a process that biomass is compressed under high pressure and high temperature. The lignin content that occurs naturally in biomass is liberated under high pressure and temperature. Lignin serves as the glue in the briquetting process, thus binding, compressing the biomass to form into high density briquettes. During this process, no binder needs to be used. So the output briquette is a type of clean and green fuel that is ideal for use in furnaces, boilers and open fires.

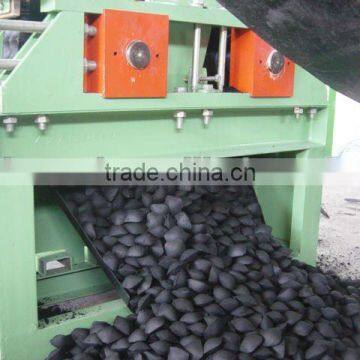

Pictures of charcoal briquette ball press machine

Charcoal Briquette Machine Coconut Shell Charcoal Briquette Ball Press Machine

Charcoal Briquette Machine Coconut Shell Charcoal Briquette Ball Press Machine





Parameter of  charcoal briquette ball press machine

Type

Dia of roll

(mm)

Capacity(T/H)

Power(KW)

Overall size

(mm)

Reduction type

Weight

(T)

360

Φ360

4

7.5

1460×1460×2040

400

1.4

400

Φ400

6

11

2450×1600×2230

500

2

500

Φ500

10

22

2650×1750×2300

500

2.6

650

Φ650

14

37

2880×2220×2500

650

5.5

750

Φ756

17

45

3015×2441×2166

750

7

800

Φ804

20

55

3200×2550×2220

850

8

1000

Φ1000

30

90

2600×3000×2500

1300

25



Production line of  charcoal briquette ball press machine





Charcoal Briquette Machine Coconut Shell Charcoal Briquette Ball Press Machine

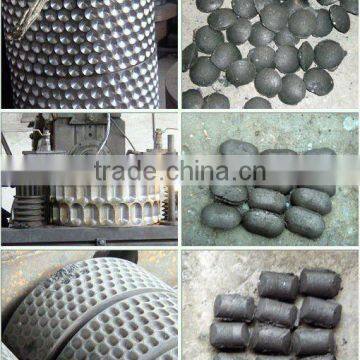

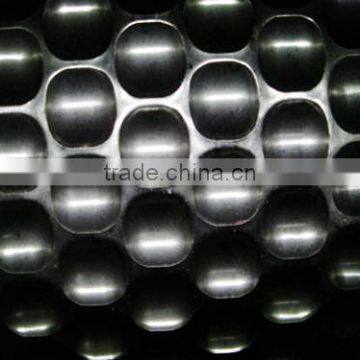

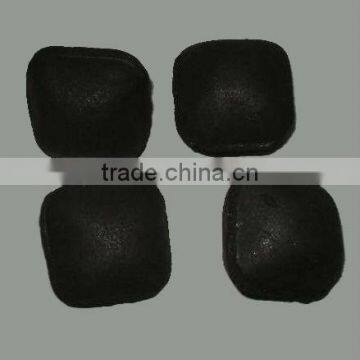

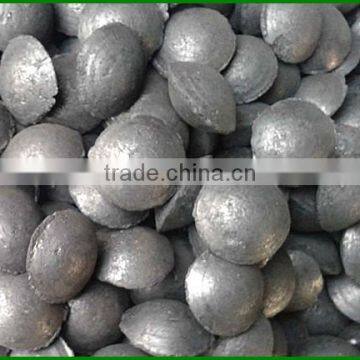

Roller and final Product



Charcoal Briquette Machine Coconut Shell Charcoal Briquette Ball Press MachineCharcoal Briquette Machine Coconut Shell Charcoal Briquette Ball Press Machine





Shipping of  charcoal briquette ball press machine





How to choose a suitable Charcoal briquette ball press machine



1. What’s the raw material?



As different materials match different machines, So pls tell us what’s the raw material.



2. The moisture of raw material ?



The moisture determines whether dryer is needed in the process.



3. The size of raw material ?



It should be crushed if the size is too big.



4. Capacity you need ?



Different capacity match different models of machine. the smaller the capacity is, the simpler the process will be.





Warmly welcome contact with us if you are interested in our Charcoal Briquette Ball Press Machine.
