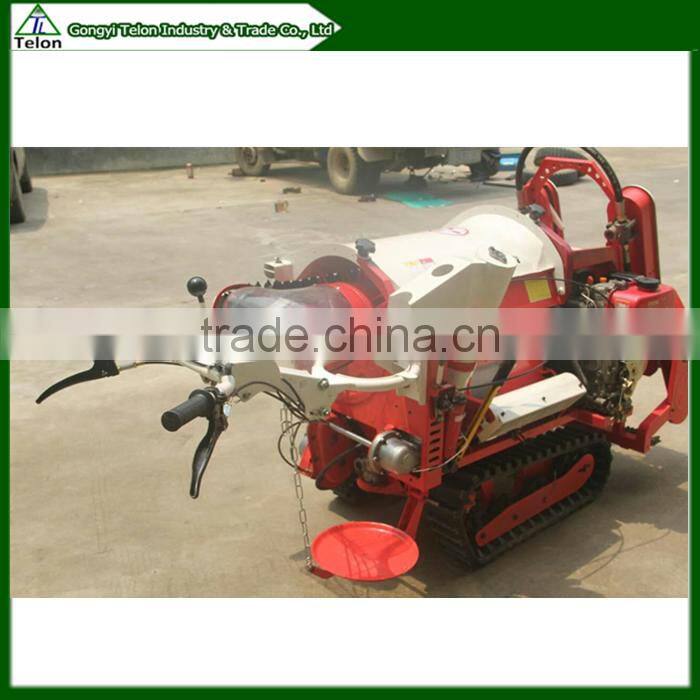

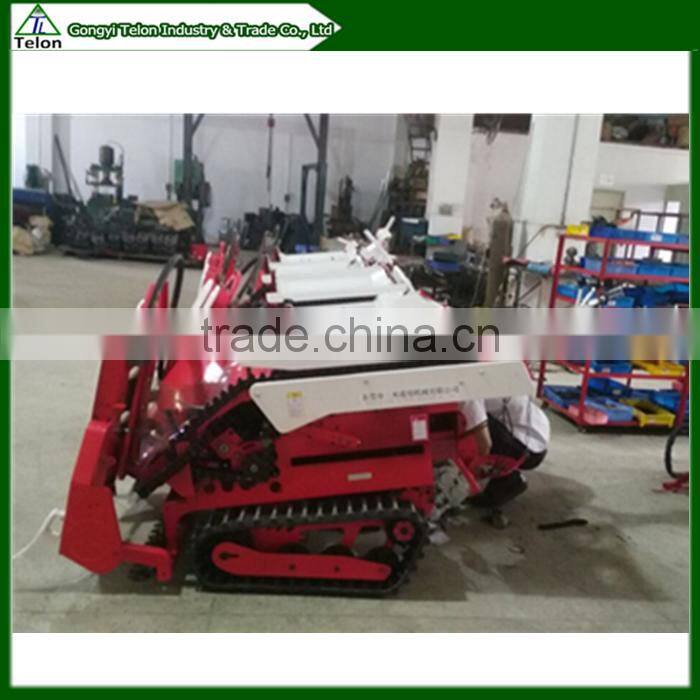

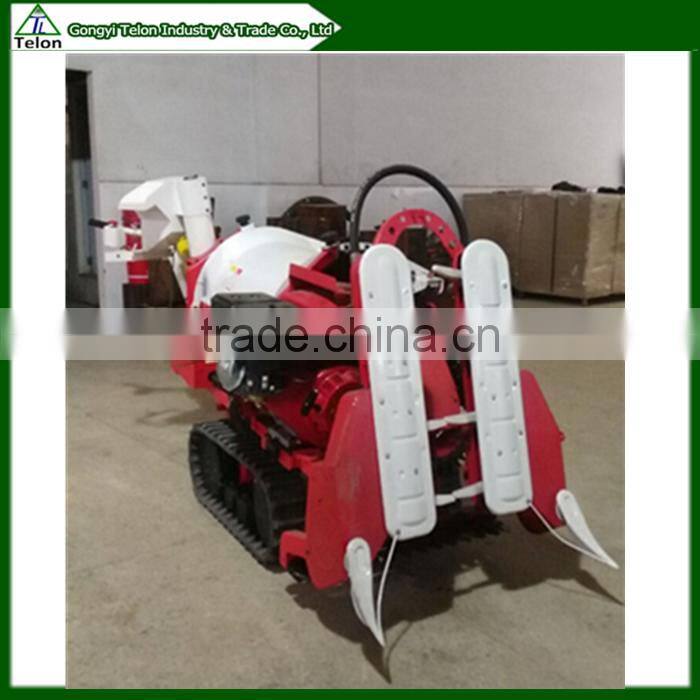

The 4LBZ-70 type of half feed harvester is a Mini half feed harvester,it is a national initiative, flexibility of operation,and highly practical. It is not only farm fields, but also widely used in mountainous area,hill area.They are mostly for the elderly and children,woman and man,and even flexible operating in paddy fields, mud fields,etc.
This 4LBZ-70 adopt by diesel engine as their power,24V low voltage electric control operation,at the same time that they had changed the power transmission variable-speed gear. To make the volume of overall harvester become more smaller,lighter.
It features advanced design,compact structure,light weight,reliable performance,convenient maintenance,easy operate,economical and practical,Wide-range in application.This Machine is the ideal machine for grain harvester for farm.
Style |
4LBZ-70 |
Dimension |
2200*930*1100 |
Weight |
145kg |
Cutting width |
700mm |
Institutional form |
Half-feed self-walking |
Feeding capacity |
0.3kg/s |
Cutting efficiency |
400-800m2/h |
The average fuel consumption |
More than 1.2kg/h |
Power |
137F diesel engine/4.05KW |
Voltage |
24V |
Broken rate |
Less than 2% |
Trash rate |
Less than 7% |
Total lose rate |
Less than 3% |
Height of cutting(mm) |
650-1250 |
1. So far the smallest, lightest weight, high performance, multi-function half feeding type harvester.
2. Track style chassis, make the region land area is big, the ground pressure is small, to walk in the mud tanaka freely;And road surface adhesion is strong, can provide a driving force of the more powerful
3. The machine is not less than 125 kg (including power), transport convenient and flexible to use;Smaller, suitable for small plots of land;Half way of feeding threshing, keep complete rice straw
4. Screw pump way, reduce the breakage rate;Innovation of flow type cleaning device, greatly reduce the grain impurity rate;Increase the lighting lamps, convenient operation at night
5.24 v voltage electric control, use left turn to the right to browse forward and backward operation easier then, safe and reliable
6. Give grain refers to the grain, improve the ability of harvest, increase scope of harvest
7. Cutting length is 0.65 m, more efficient 400-800 m2 / h
8. Apply to rice 65-125 cm;Combined with electronic control cutting machine lifting operation, adjust height of harvest
9. The unique on-off device, makes walking system and harvesting system can be operated separately, more practical, more human
10. The first electric chassis, the caterpillar chassis back around to become a reality
Gongyi city telon industry and trade co., LTD., founded in 1998, is located in gongyi city, henan province is an export enterprise in China.We won the excellent prize of scientific and technological achievements in zhengzhou and consecutive years awarded the honorary title. As an entity enterprise.
