Rubber-tyred Small Wheat Combine Harvester Machine

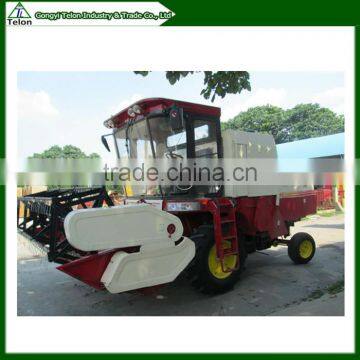

Rubber-tyred Small Wheat Combine Harvester Machine photo-1

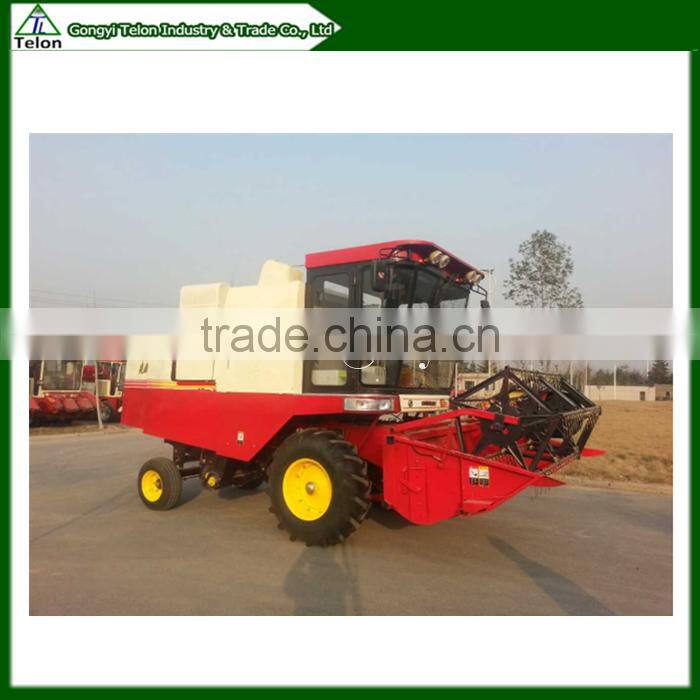

Rubber-tyred Small Wheat Combine Harvester Machine photo-2

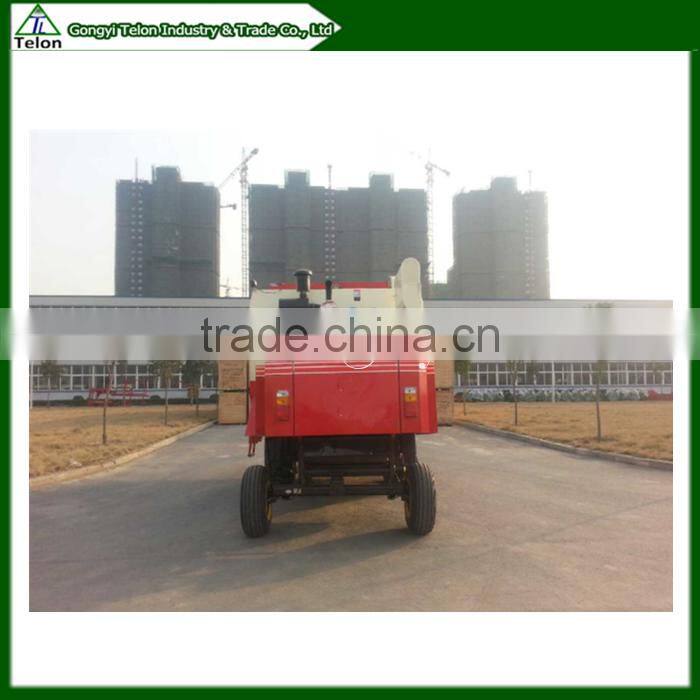

Rubber-tyred Small Wheat Combine Harvester Machine photo-3
US$ 3,000 - 22,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Farm Machinery
Type:
Combine Harvester
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Farm Machinery
Type Combine Harvester
Drive Type Other, diesel drive
Usage Grain Harvester
Place of Origin Henan, China
Brand Name Telon
Model Number 4LZ-7L
Dimension(L*W*H) 6810*3440*3280
Weight 5484kg
Certificate CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Rubber-tyred small wheat combine harvester machine


1. Enlarge the area of screen box, 920 mm width of screen box, improve the efficiency of the screen box;
2. The tail of screen is adjustable, can be suitable for different kinds of rice and wheat;
3. The multi-stage cleaning system, can improve rice cleaning cleaner, no weeds, no chaff;
4. Widen the elevator, increase the granary, reduce the number of unloading grain;
5. A closed cabin, can reduce noise, make the driver feel more comfortable;
6. Widening bridge, improve separation efficiency;
7. The bias steering wheel.

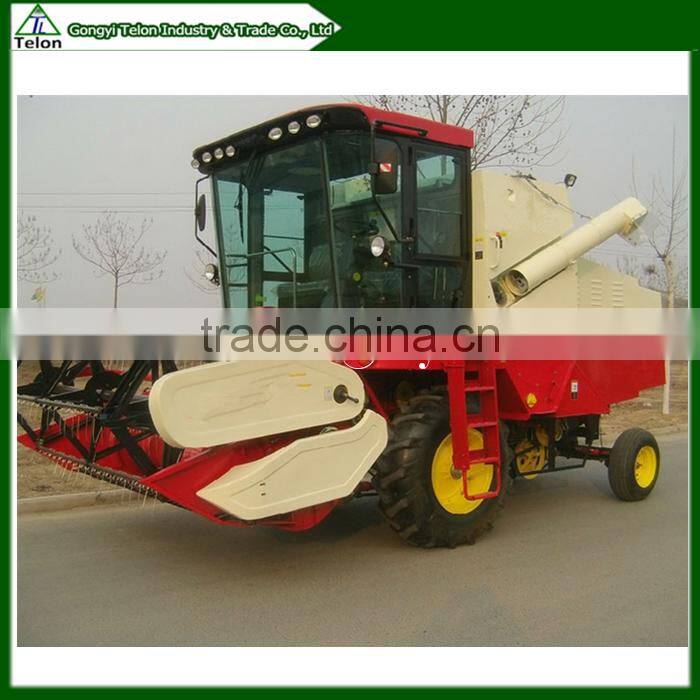

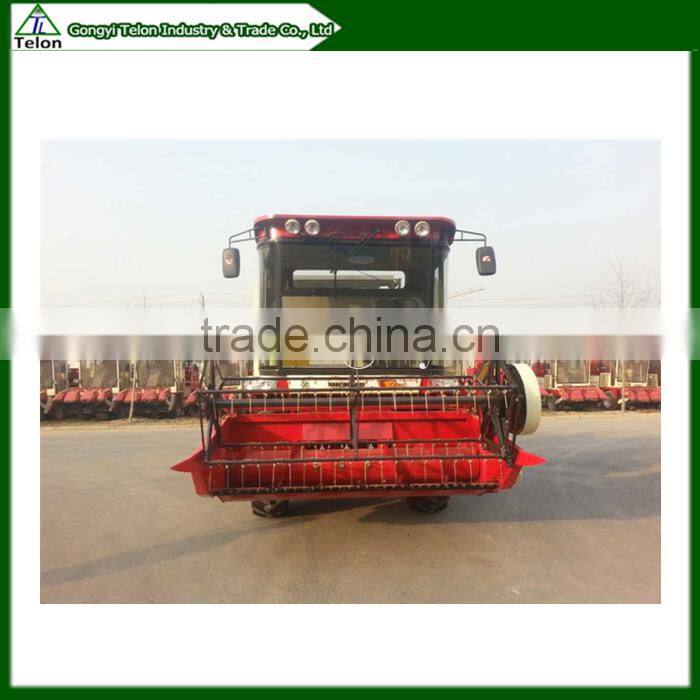

 Rubber-tyred small wheat combine harvester machineRubber-tyred small wheat combine harvester machineRubber-tyred small wheat combine harvester machineRubber-tyred small wheat combine harvester machine



Model

4LZ-7

4LZ-6

4LZ-7B

Type

Rubber-tyred

The full feeding self-propelled combine harvester wheeled

self-propelled combine harvester wheeled

Wheel

Two driving wheel

Two steering wheel

Two driving wheel

Two steering wheel

Two driving wheel

Two steering wheel

Engine Model

YC4A125-T22

YC4A125-T21, LR4M5Z-22

YC4A125-T21, LR4M5Z-22

Power

140 HP

140HP

140HP

Engine speed

2400 (r/min)

2200(r/min)

2400 (r/min)

Feed quantity

3-4Kg/second

21.6 t/h

7Kg/second

Working width

2500mm

2750mm

3250 mm

Harvesting efficiency

0.8-1.0  hm2/h

0.67-1 (hectare/h)

0.72-1.1(hectare/h)

The total loss rate

≤1.2%

≤1.2%

≤1.2%

Percentage of damage

≤1.0%

≤1.0%

≤1.0%

Impurities rate

≤2.0%

≤2.0%

≤2.0%

Oil consumption

≤20Kg/hm²

≤20 Kg/hm2

≤23 Kg/hm2

Min Ground Height

290mm

290 mm

290 mm

Weight

5485 Kg

5210 Kg

5405 Kg

Dimension

6810*3440*3280mm

6560*3000*3250 mm

6695*3150*3250 mm





 Other model for reference

 Half feed combine harvester(click picture to know more)

 Rubber-tyred small wheat combine harvester machine
