Gas Oil Pipeline Preheat and Post Weld Pwht Heat Treatment Machine

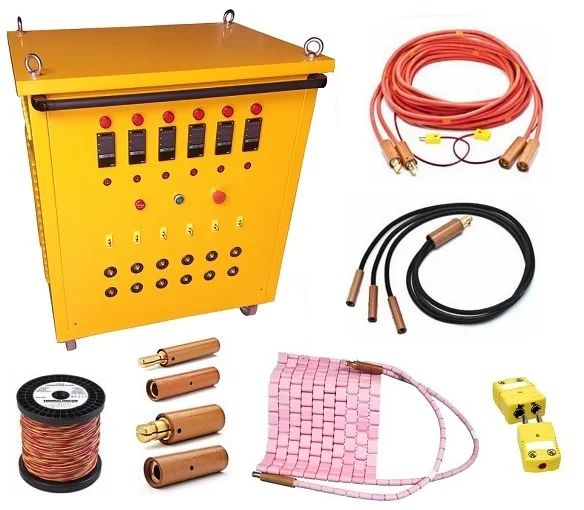

The 50KVA transformer heat treatment unit

Can set up the temperature value and time value of warming, constant temperature and cooling(i.e.warming velocity, cooling velocity and constant temperature velocity). It has eight sections of setting at most, 0-1000℃ constant temperature;

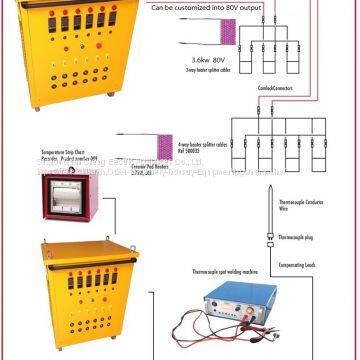

50 kva rated power, it can take 18 pieces of 2.7 kw 60V heaters working at the same time at most;

There will be 6 temperature control cahnnels, the power of each channel is 8.3kva, which can match 3 pieces of 2.7kw 60V heaters at most.

With 6 points automatically temperature thread printing recorders(Japanese CHINO recorder).

The temperature control meter can also set the Fahrenheit degree.

Thansformer design

Input voitage:415V/380V/440V/480V 3 phase 50Hz/60Hz AC.

Output Voltage: 60V AC/DC(can be design)

Applications&using fields:
Our heating system are  far infrared heating   equipment with PID system.
Their main applications are pipeline heating, pre-welding heating, post-welding heat treatment, stress relief,, annealing,ect.
1. Pre-heating: Straight seam weld, longitudinal, circumferential weld, thick steel plate etc.

2. Post-welding heat treatment: tank, boiler or other metal jobs
3. Heating: mold heating, shipboard, zinc bath, large& irregular metal parts

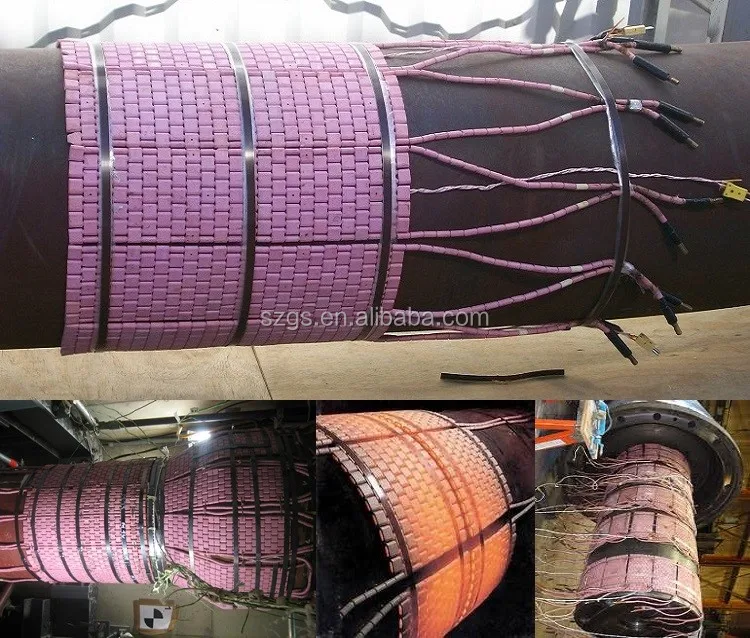

4. Pipeline heating: pipeline oil, pipeline gas, pipeline water, pipeline petrochemical and other pipeline material
The using fields involved are petrochemical, oil and gas pipelines, aerospace, shipbuilding, steel, Hydropower construction ,tanks, boilers, vessels, pressure vessels, cylinders, metal structure, spatial structure, railway bridges, electricity water, mine construction, vehicle manufacturing, nuclear power, mining, plastics processing, energy saving process, screw barrel industries,ect.

1. Over 15 years experience in Far infrared heating
2. Heating furnace is safety and reliability, long life
3. Our heating equipment export to Italy, Mexico ,Turkey, Slovakia, Pakistan, Iran,Vietnam,India,     Malaysia,Kazakhstan, Uzbekistan,Russia,Ukraine,Azerbaijan,Indonesia,South Africa,etc. And winning great popularity
4. One year warranty and life-time technology support
5. Fast, timely delivery & reliable after-sales service
6. Spare parts & tools delivered with harvester for daily maintenance
7. Customers & quality first
8. Can provide oversea technical support
9. Free design for custom

1. Why the price is so low?
You are ordering directly from the factory.

 2.Where is your factory located? How can I visit there?
Our factory is located in Suzhou City, Jiangsu Province, China,about 1 hours bus ride from Shanghai .All our clients, from home or abroad, are warmly welcome to visit us.

 3.What type of payment do you have available?
We accept TT and L/C,as sample order,the Western union,Money gram and Aliexpress is available.

 4.How can I get some samples?
We are honored to offer you samples.
5.How does your factory do regarding quality control?
"Quality is in my hand,customer in our heart”. Topright people always attach great importance to quality controlling from the very beginning to the very end.

Welcome to contact us for more details ,most competitive price for you!
