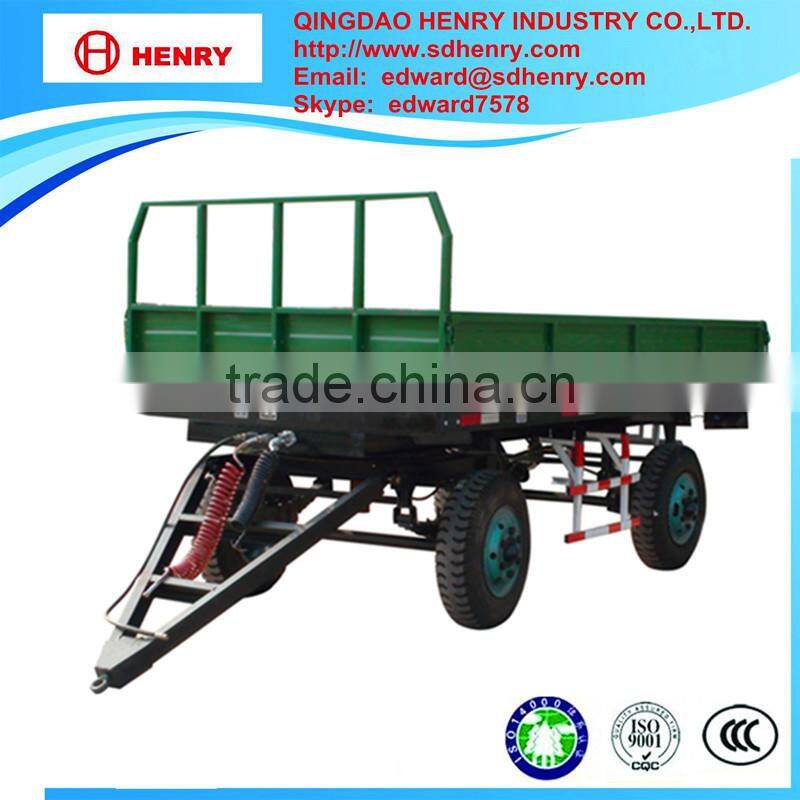

1. tractor trailer
3-10T TRAILER
Model | unit | 7CX-3 | 7CX-4 | 7CX-5 | 7CX-6 | 7CX-7 | 7CX-8 | 7CX-9 | 7CX-10 |
Loading weight | kg | 3000 | 4000 | 5000 | 6000 | 7000 | 8000 | 9000 | 10000 |
Box size | cm | 340*180*50 | 340*190*50 | 3600*190*50 | 380*200*50 | 400*200*50 | 430*200*50 | 470*200*50 | 520*200*50 |
Tyre /Q’ty |
| 7.50-16/4 | 7.50-16/4 | 8.25-16/4 | 8.25-16/4 | 9.00-20/4 | 9.00-20/4 | 9.00-20/4 | 9.00-20/4 |
Total weight | kg | 1270 | 1350 | 1750 | 1870 | 1980 | 2200 | 2500 | 3100 |
Brake |
| air pneumatic brake | |||||||
Matched power | hp | 30 | 40 | 50 | 60 | 70 | 80 | 80-100 | 90-120 |
Linkage |
| Trailed | |||||||
The items selectable |
| Tipping single action oil cylinder,oil connection in 1/2” thread,gas connection M20*1.5 | |||||||

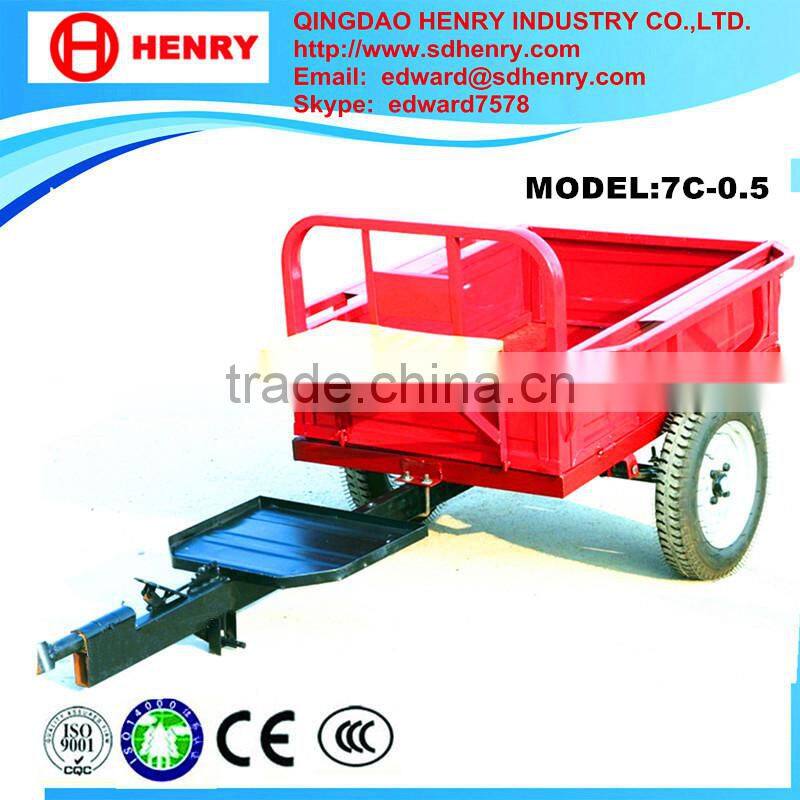

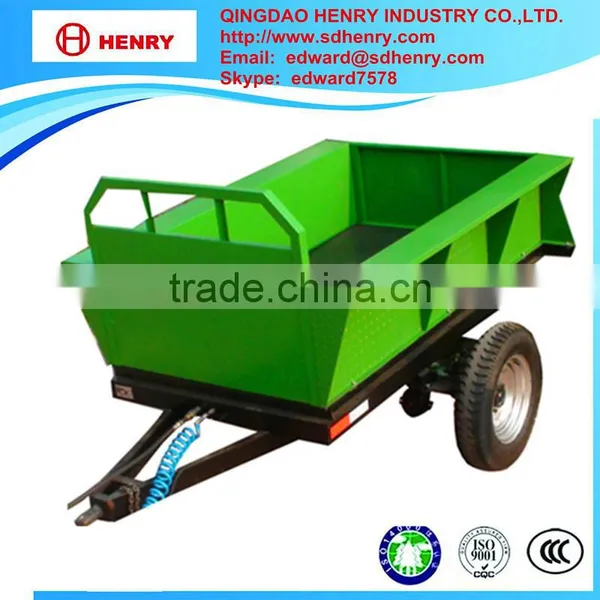

2. Power tiller and two wheel walking tractor trailer can load 500kg-2000kgs , attach with the power tiller tractor 5-22HP
MODEL | 7C-0.5 | 7C-1 | 7C-1.5 | 7C-2 | |
Carriage dimension(mm) | 1360*860*330 | 2000*1000*330 | 2000*1000*340 | 2200*1350*400 | |
Overall dimension(mm) | 2670*960*1140 | 2800*1300*1400 | 3700*1450*1300 | 3900*1550*1300 | |
Rated load weight(kg) | 500 | 1000 | 1500 | 2000-2200 | |
Dead weight(kg) | 132 | 198 | 295 | 312 | |
Tire | 4.00-12 | 6.00-16 | 600-16 | 700-16 | |
Unload form | manual back tipping | ||||
Brake form | brake by foot | ||||
Matched power(HP) | 12-22hp power tiller tractor | ||||
Quantity /40GP | 150 | 90 | 70 | 60 | |

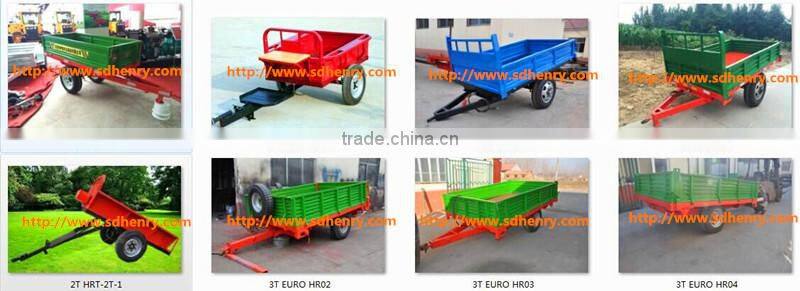

0.5-2T CAN CHOICE:

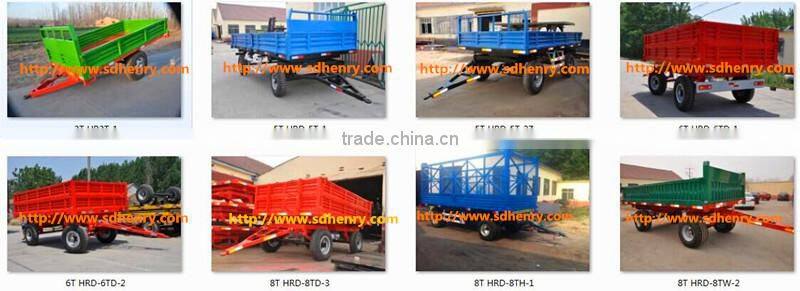

2.12-260HP TRACTOR TRAILER MAIN MODLE CAN CHOICE:

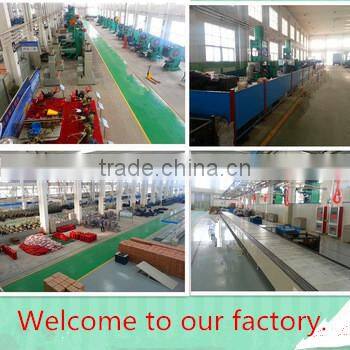

Ourfactory
Established in 2005,is a professional manufacturer of agricultural machinery in china. About 3000 employees
Based on the strength of our production the special orders we can meet you ,
why choice us
1)Professional supply with certification:CCC ISO CE DOP
2)Perfact quality program,100% test before delivery
3)One year guarantee
4)OEM cervice
5)Price is our big advantage, because we have a very strong production capacity
