Help CenterDiesel Tricycle 2Y10113
US$ 1,000 - 3,000
MOQ: 15 Units
Key Specifications
Get Latest Price
Use For:
Cargo
Driving Type:
Motorized
Displacement:
> 250cc
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Use For
Cargo
Driving Type
Motorized
Body Type
Open
Certification
Other, ISO9001
Brand Name
FOTON,WAW,BOTA
Place of Origin
Shandong, China
Model Number
Diesel tricycle 2Y10113
Size
3542x1200x1379MM

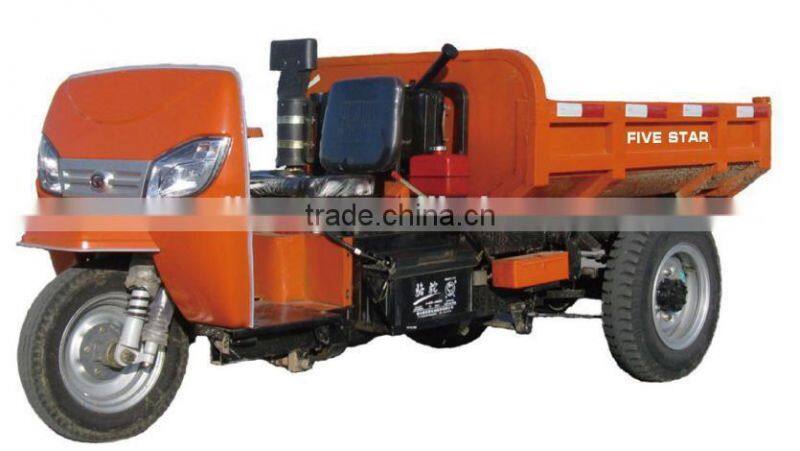

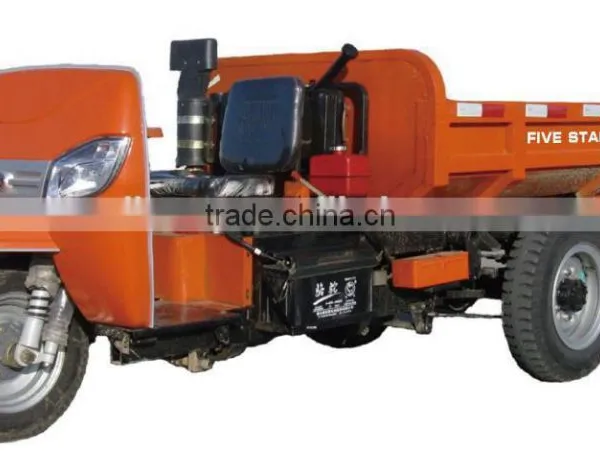

Diesel tricycle 2Y10113
Main Features
Comfortable Ergonomic Techniques: Fully comply with ergonomic design, and adopt automobile luxurious independent seats, which totally coincide with the S curve of human body and optimize leg and ride spaces in order for spacious space and comfortable ride.
Stamping Integrative Lumber-core Container: Adopt whole rolling sideboard due to that the sideboard of the container is molded by one-shot stamping with high-density welding spots and small stress, and the strength of the container is more than two times as much as that of an ordinary welding container.
Extra-heavy Chassis & Leaf Spring: Newly optimize to design the whole vehicle, adopt straight girder welding frame manufacture by Foton’s special materials with high strength; to meet different demands, extra-heavy single damper, dual damper and triple damper all adopt the design of external spanning type leaf spring, which lowers the height of the whole vehicle largely, improves the driving stability, enlarges the auxiliary beam, lengthens the floor beam of the frame, improves the load capacity by more than 20% and creates the industry’s final chassis design.
Homemade Reinforced Rear Axle: Increase gear module design in order for more stable performance and to improve the load capacity by 15% compared with that of traditional rear axle. The rear axle in fourth gear, sixth gear, eighth gear and tenth gear has rich resources to meet different demands.
Stamping Integrative Lumber-core Container: Adopt whole rolling sideboard due to that the sideboard of the container is molded by one-shot stamping with high-density welding spots and small stress, and the strength of the container is more than two times as much as that of an ordinary welding container.
Extra-heavy Chassis & Leaf Spring: Newly optimize to design the whole vehicle, adopt straight girder welding frame manufacture by Foton’s special materials with high strength; to meet different demands, extra-heavy single damper, dual damper and triple damper all adopt the design of external spanning type leaf spring, which lowers the height of the whole vehicle largely, improves the driving stability, enlarges the auxiliary beam, lengthens the floor beam of the frame, improves the load capacity by more than 20% and creates the industry’s final chassis design.
Homemade Reinforced Rear Axle: Increase gear module design in order for more stable performance and to improve the load capacity by 15% compared with that of traditional rear axle. The rear axle in fourth gear, sixth gear, eighth gear and tenth gear has rich resources to meet different demands.
Specification
| Model | Specification | parameter |
| 2Y10113 | loading capacity | 2 tons |
| Overall dimensions of vehicle (mm) | 3543*1200*1379 | |
| dimensions of the cargo (mm) | 2000*1200*400 | |
| wheel base (mm) | 2313 | |
| wheel track (back) (mm) | 1220 | |
| type number | 3 | |
| steel spring number) | 13(7+6) | |
| width of cabin(mm) | 1110 | |
| rated power (Hp) | 18 | |
| Displacement ( L) | 0.996 | |
| curb weight( kg) | 940 | |
| rear overhang( mm) | 820 | |
| max speed | 50 | |
| engine | 1115 | |
| tire size (F/R) | Front:5.00-14 | |
| Rear :6.50-16 | ||
| brake system | Vacuum Booster | |
| gear box | 3*2+2 | |
| brake system | foot brake; hand brake | |
| gear box | 238 | |
| rear axle | Hydraulic full floating | |
| dump equipment | Yes | |
| Qty in 40(units) | SKD15 | |
| color | red |
