18HP 4WD Mini tractor 18HP
HR184 18hp 4x4wd,4 wheel mini tractor , with PTO
1.Specification:
whole tractor | ||
model | 184 | |
Type | 4×4wd | |
Traction power(kN) | 3.5 | |
Dimension(mm) | 2285×1200×1665 | |
weight(kg) | 700 | |
work weight(kg) | 820 | |
wheelbase(mm) | 1400 | |
treadbase(mm) | 935/990 820/850 | |
mini groundclearance(mm) | 275 | |
The minimum turning radius(m) | 3.9 | |
Speed (km/h) | forward | 2.28/4.36/6.66/8.66/16.54/25.27 |
reverse | 2.28/8.66 | |
Suspension | Class Ⅰ, Rear three-point suspension | |
PTO | 35mm Non-independent, clockwise, 540 rpm, spline nominal | |
Tire model |
| 4.00-12/7.50-16 |
engine specifications | ||
Engine model | DLH1105,JDL1105 | |
Engine type | Vertical, single-cylinder, water-cooled, four-stroke diesel engine | |
12 hour power(kW | 11.76 | |
speed(rpm) | 2400 | |
starting mode | electric start | |
Bore x stroke(mm) | 100×115 | |
Bore x stroke(g/kW•h) | ≤251.6 | |
Oil consumption (g/kW•h) | ≤2.04 | |
2.EVERY PART SHOW :
3.FOLLOWS CAN CHOICE:
(1)With Hydraulic steering ,(with hydraulic steering pump)
(2)Front balance weight ,
(3)Multiple hydraulic output
(4)Single hydraulic output
(5)Sun Shade ,Rops
(6)Air break
(7)Double speed PTO ,
(8)Combined instrument panel
3.OTHER MODEL CAN CHOICE: 12HP , 16HP ,18HP ,20HP 4X4WD ,Big model 25hp,28hp,30hp, 35-260hp.
FACTORY SHOW

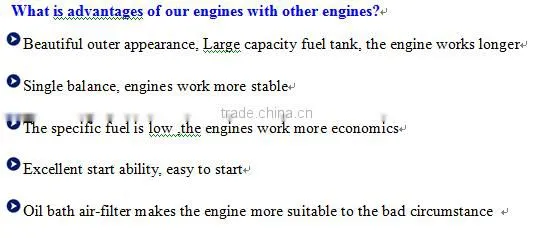

Strong power from the diesel engine
main features
1)small garden tractor is small and light with low oil consumption, high efficiency and good stability.
2)Easy to operate and suitable for working in the narrow acrid land, paddy field, orchard and vegetable greenhouse.
3)According to different demands of the users, also can used for rotary planting, shallow & deep plowing, transplanting in the paddy field, loosening the soil, atomization, watering & dewatering, sowing and exploring more lands when corresponding equipments or tool are assembled

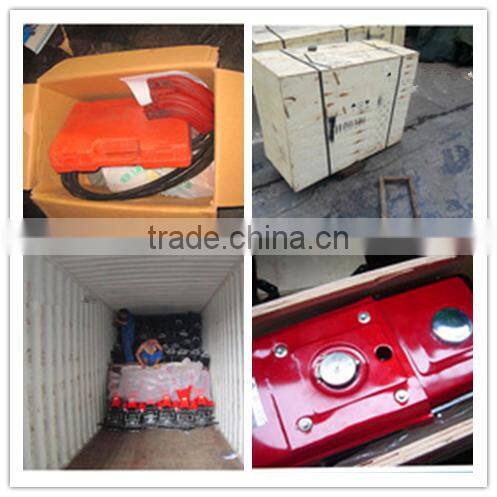

packing&shipping
| Packaging Detail: | A wooden box or as your requires |
shipping:within 20 days
Ourfactory
Established in 2005,is a professional manufacturer of agricultural machinery in china. About 1000 employees
Based on the strength of our production the special orders we can meet you ,
why choice us
1)Professional supply with certification:CCC ISO CE DOP
2)Perfact quality program,100% test before delivery
3)One year guarantee
4)OEM cervice
5)Price is our big advantage, because we have a very strong production capacity
Shopping guide recommended
1)HR151-1(15-20hp,hand cranking or electric start)
2)HR81(7-12hp,hand start)
3)HR101-1(7-12hp, hand cranking or electric start
4)HR101-2(7-12hp, hand cranking or electric start )
5)HR111(7-15hp, hand cranking or electric start )
6)HR121(12-15hp, hand cranking or electric start )
