Top quality Mini tractor

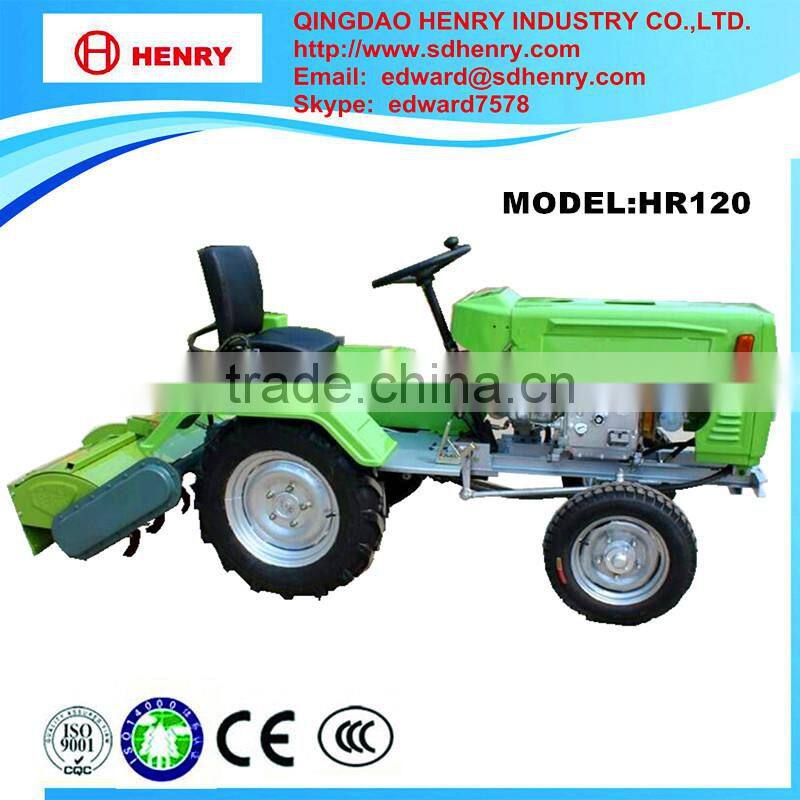

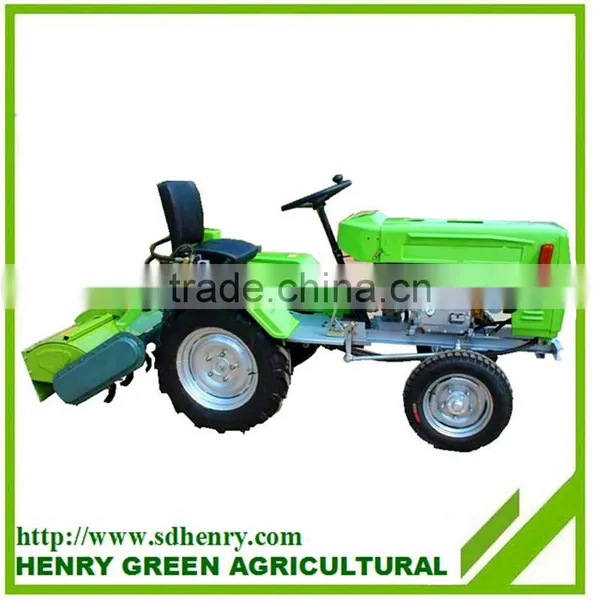

Mini-4 wheel Tractor
| ||
MODEL Disctription | HR120 | |
Overall dimensions:(L×W×H) | 2200×1100×1210mm (Only tractor) | |
Front wheel size | 4.00-10 | |
Back wheel size | 6.00-12 | |
Ground clearance | 200mm | |
Working weight (without anything) | 450kgs | |
Transmission style | Vee-belt tension | |
Vee-belt model | B3200 | |
Steering style | Steering wheel power steering system | |
Brakes | Two side wheel brake | |
Starter | Electric start | |
Seat | Adjustable | |
Gear style | (3+1)*2; 6 Forward, 2 Reverse | |
Speed | Forward | 1.68, 2.61, 4.22, 6.79, 10.57, 17.08 |
Reverse | 1.29, 5.22 | |
Engine | Model | R195N |
Type | 1cylinder,4-stroke,horizontal,water-cooled,diesel | |
Cooling mode | Condenser (Radiator) | |
12 hour power | 12HP | |
Combustion system | Direct Injection | |
Bore X Piston stroke | 95X115 MM, | |
Rated speed | 2200rpm | |
Fuel efficiency: | ≤245g/kw.hr | |
Rotary tiller | Transmission Type | Side Chain Transmission |
Width | 1200mm Adjustable | |
Number of blades | 24pcs | |
Working depth | 210-350mm | |
Up and down control | Hydraulic system | |
Single ridger | SINGLE RIDGER ,CAN ADJUST BLADES | |
Disc Plough | Double disc plough | |
Trailer | Trailer box 2.2m x 1.35m x 0.44m ,Load weight 2tongs ,with strong wheel axle. | |
Terms of payment | T/T in advance (40% deposit ,Balance as B/L copy). | |
Delivery time: | within 30 -35 days after your deposit received | |
Warranty: | 1 years for the main parts such as engine, frame, wheel, etc. 6 month for the easy damaged parts | |
Spare Parts | available | |
Quantity | SKD Package and load container Tractor with rotary tiller ,single rigger 45-50pcs/40HQ Trailer 100sets/40HQ | |

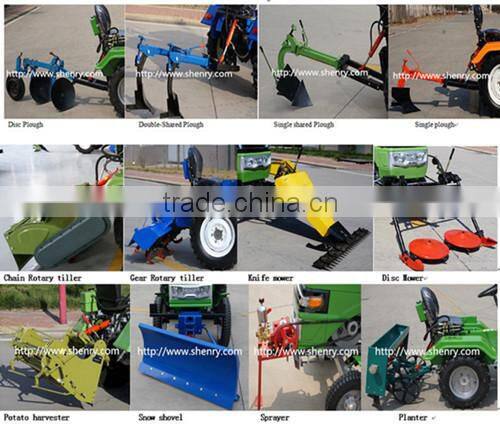

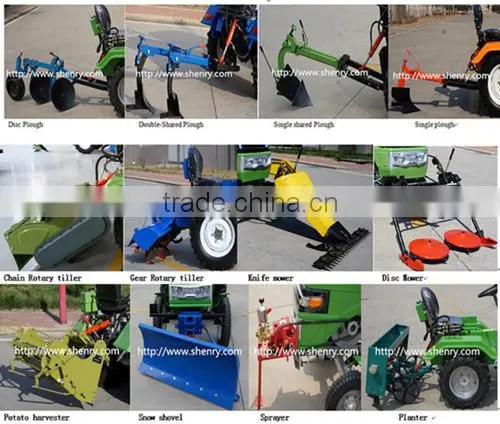

IMPLEMENTS:
KEY SPECIFICATION
1. MINI TRACTOR 12HP,, 15HP, 16HP, 20HP, 22HP
2. Features: Compact,Agile,Light,Reliable,Convenients,High Quality.
3.Suitable for paddy fields,upland plains,moutainous and hilly areas.and for plough,rotary tillage,sow,threshing ,suction and so on.
4.Equipped with lightings for dirving at night.
5.Can be used as a stationary power source for drainage and irrigation.
6.With quick coupling,easy to chang farming implements. Cultivator,mower,trailer,water pump,power tiller,snow blower,rotary plough,ect.
7. Different product colors is optional, to adapt to different market
OUR RANGE
1. TOW WHEELS WALKING TRACTOR.FROM 6HP TO 20HP
2. FOUR WHEELS TRACTORS FROM 10HP TO 260HP
3. IMPLEMENTS: CULTIVATOR,PLOUGH,ROTARY TILLER, Hole Digger, PLANTER.HARVEST AND SO ON.
4. TRAILER
WHY CHOOSE US
1. Professional supply with certification: CCC, ISO,CE,DOT and so on
2. Perfect quality program. 100% test before delivery
3. One year guarantee.
4. OEM cervice.
5. Creative design team and first class quality equipments.
6. Design and Producing be customized.
7. Flexible payment. T/T L/C D/P,WESTERN UNION be accept.
