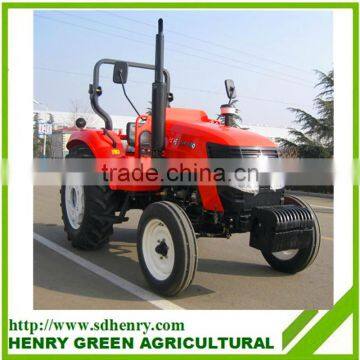

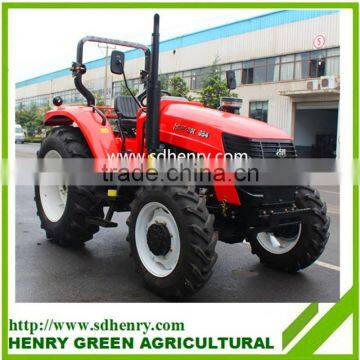

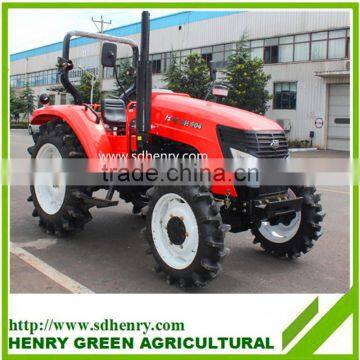

four wheel tractor
Beautiful appearance, comfortable operation, optional three cylinder, four cylinder engine, to meet your different needs;
The combination instrument and the automobile electric appliance constitute the switch, the control staff can understand the machine working state at any time, and provide the guarantee for the scientific use of the machine;
Meshing gear shift, gear brake mechanism to ensure that the product is durable.
Also have 20-140hp four wheel tractot ,welcome contact with us.
SPECIFICATION:
| Main parameters | CD55 Product series | |||
| Type | SH554 | SH604 | SH704-1 | |
| Drive type | four-wheel drive | four-wheel drive | four-wheel drive | |
| Engine | ||||
| Engine Brand | quanchai | |||
| Engine Type | QC4105T55 | QC4105T60 | QC4108T70 | |
| Max. Torque (Nm @ engine rpm) | 227~233/1700 | 240~245/1700 | 265~275/1700 | |
| Fuel tank capacity | main48L+vice22L=70L | main48L+vice22L=70L | main48L+vice22L=70L | |
| Rating power of engine | 40.4/2400 | 44/2400 | 51.5/2400 | |
| Fuel consumption @ nominal power | ≤248 | ≤248 | ≤248 | |
| Air Intake Type | Natually-Aspirated | Natually-Aspirated | Natually-Aspirated | |
| Displacement | 4/4.087 | 4/4.087 | 4/4.324 | |
| Air filter type/size | Oil bath 7.8inch 255m3/h | |||
| Torque reserve | 27% | 25% | 20% | |
| Transmission system | ||||
| Clutch type/size | One-piece,dry,double-action/10 inches | One-piece,dry,double-action/10 inches | One-piece,dry,double-action/11 inches | |
| No. of gears | 12F+12R | 12F+12R | 12F+12R | |
| Shift method | mechanical sliding sleeve | mechanical sliding sleeve | mechanical sliding sleeve | |
| Max. speed | 29.91 | 29.91 | 29.91 | |
| Gear position | side position | side position | side position | |
| Hydraulic system | ||||
| Hydraulic output flow rate | 38.4 | 38.4 | 38.4 | |
| Hydraulic output valve | One group/Two groups/Three groups/Simple hydraulic output | One group/Two groups/Three groups/Simple hydraulic output | One group/Two groups/Three groups/Simple hydraulic output | |
| Hydraulic filter types and capacity | wire mesh/63μm | wire mesh/63μm | wire mesh/63μm | |
| Working device | ||||
| Three-point-linkage | 2 Type | 2 Type | 2 Type | |
| PTO Speed | 540/760rpm 540/1000rpm(Optional) | 540/760rpm 540/1000rpm(Optional) | 540/760rpm 540/1000rpm(Optional) | |
| Lifting Capacity | 11KN/15KN(Enforced lift) | 11KN/15KN(Enforced lift) | 15KN(Enforced lift Optional) | |
| Tillage depth adjustment | Draft, position,position and draft mix control/position,float(Enforced lift) | Draft, position,position and draft mix control/position,float(Enforced lift) | Draft, position,position and draft mix control/position,float(Enforced lift) | |
| Parameter | ||||
| The whole machine size (dimensions) mm | 3970*1620*2130 | 3970*1620*2130 | 4060*1828*2200 | |
| Min. operation mass | With cab | 2640 | 2640 | 2660 |
| Without cab | 2360 | 2360 | 2380 | |
| Wheel base | 2041 | 2041 | 2071 | |
| Mini turning Radius (m) | 4.3 | 4.3 | 4.5 | |
| Rated traction force(N) | 14.5 | 15 | 16.5 | |
| Deck | Flat Deck | Flat Deck | Flat Deck | |
| Minimum ground clearance | 325 | 325 | 370 | |
| Heat ventilation cab | Optional | Optional | Optional | |
| Front/rear wheel tread | 1250/1300 | 1250/1300 | 1350/1450 | |
| tyre size | 8.3-20/12.4-28 | 8.3-20/12.4-28 | 8.3-24/14.9-30 | |
| Braking and steering | ||||
| Braking system | Wet type,disc brake | Wet type,disc brake | Wet type,disc brake | |
| Steering type | hydraulic steering | hydraulic steering | hydraulic steering | |
| Steering Angle (4*4) | Front axle Max.Steering angle 50° | Front axle Max.Steering angle 50° | Front axle Max.Steering angle 50° | |
| (options: all these types can Optional for ROPS ,Sunshade,swing drawbar, front/rear ballast,cabin) | ||||
PACKAGE BY CONTAINER
FACTORY SHOW
Optional tools:
WHY CHOOSE US
1. Professional supply with certification: CCC, ISO,CE,DOT and so on
2. Perfect quality program. 100% test before delivery
3. One year guarantee.
4. OEM cervice.
5. Creative design team and first class quality equipments.
6. Design and Producing be customized.
7. Flexible payment. T/T L/C D/P,WESTERN UNION be accept.
BOTA BRAND walking tractor looking for sole agnt from every country and city.
