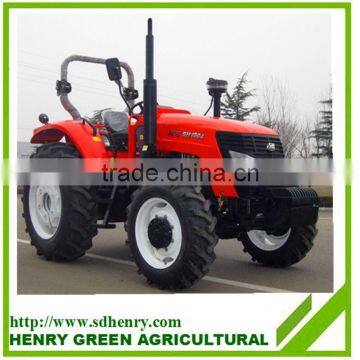

four wheel tractor
Beautiful appearance, comfortable operation, optional three cylinder, four cylinder engine, to meet your different needs;
The combination instrument and the automobile electric appliance constitute the switch, the control staff can understand the machine working state at any time, and provide the guarantee for the scientific use of the machine;
Meshing gear shift, gear brake mechanism to ensure that the product is durable.
Also have 20-140hp four wheel tractot ,welcome contact with us.
SPECIFICATION:
Type | 1204 | 1354 | 1404 |
Drive type | 4*4 four-wheel drive | 4*4four-wheel drive | 4*4 four-wheel drive |
Engine | |||
Engine Brand | YTO | YTO | Yuchai |
Engine Type | LR6B5-23 | LR6M5-23 | YC6B160Z-T21 |
KW/RPM | 88.2/2300 | 99.2/2300 | 103/2300 |
Fuel consumption @ nominal power | ≤242 | ≤242 | ≤240 |
Air Intake Type | Naturally Aspirated | Naturally Aspirated | Tubocharging |
Displacement(L) | 6/7.42 | 6/7.70 | 6/6.871 |
Transmission system | |||
Clutch type/size | One-piece,dry,double-action/12 inches | One-piece,dry,double-action/13 inches | One-piece,dry,double-action/13 inches |
(F+R) No. of gears | 16 F+8 R | 16 F+8 R | 16 F+8 R |
Shift method | mechanical sliding sleeve | mechanical sliding sleeve | mechanical sliding sleeve |
Max. speed | 32.94km/h | 32.94km/h | 32.94km/h |
Gear position | side position | side position | side position |
Hydraulic system
| |||
(L / MIN) | 64.4 | 64.4 | 64.4 |
Hydraulic output valve | Three groups | Three groups | Three groups |
Hydraulic filter types and capacity | wire mesh/63μm | wire mesh/63μm | wire mesh/63μm |
Working device | |||
Three-point-linkage | 2 Type | 2 Type | 2 Type |
PTO Speed | 540/1000 | 540/1000 | 540/1000 |
Parameter | |||
The whole machine size (dimensions) mm | 4800×2356×2900 | 4800×2356×2900 | 4880×2356×2900 |
Min. operation mass(kg) | 5440 | 5440 | 5440 |
Wheel base | 2582 | 2582 | 2662.5 |
Mini turning Radius (m) | 5.5 | 5.5 | 5.7 |
Minimum ground clearance | 480 | 480 | 480 |
Front/rear wheel tread | 1784-2202(comon1940/1620-2220)common1850) | 1784-2202(common1940)/1620-2220(common1850) | 1784-2202(common1940)/1620-2220(common1850) |
tyre size | 14.9-26/18.4-38 | 14.9-26/18.4-38 | 14.9-26/18.4-38 |
Braking and steering | |||
Braking system | Hydrostatic,dry type,disc brake | Hydrostatic,dry type,disc brake | Hydrostatic,dry type,disc brake |
| hydraulic steering | hydraulic steering | hydraulic steering |
(options: all these types can Optional for swing drawbar, front/rear ballast) | |||
PACKAGE BY CONTAINER
FACTORY SHOW
WHY CHOOSE US
1. Professional supply with certification: CCC, ISO,CE,DOT and so on
2. Perfect quality program. 100% test before delivery
3. One year guarantee.
4. OEM cervice.
5. Creative design team and first class quality equipments.
6. Design and Producing be customized.
7. Flexible payment. T/T L/C D/P,WESTERN UNION be accept.
BOTA BRAND walking tractor looking for sole agnt from every country and city.
