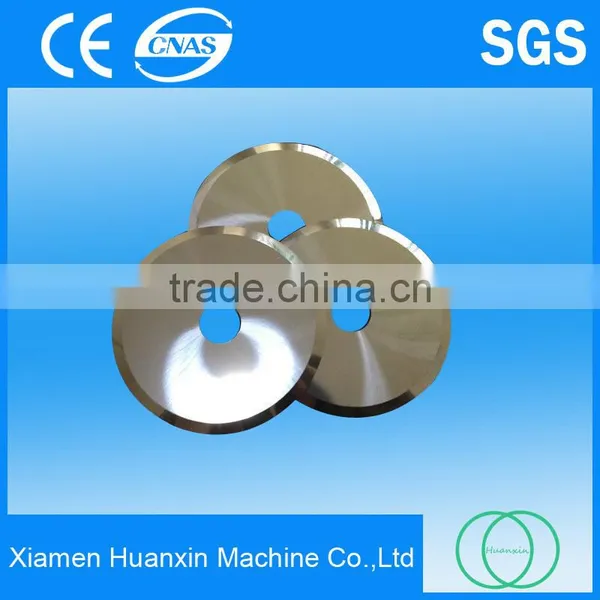

Rag Cutting Machine Rounded Blades
Advantages of blade manufacturer and supplier:
1, End manufacture, Competitive price.
2, Over 10 years experience.
3, International standard.Each technical index.
4, Passed the ISO9001 quality certification .
5, OEM /ODM service.
6, Fast delivery, Good packaging.
| MATERIALS FOR CHOICE | |||||||||||||
GB |
ASTM | JIS | DIN | W-Nr | NF | POCT | SS14 | BS | ISO | ||||
| 9CrSi | - | - | 90CrSi5 | 1.2108 | - | 9XC | 2090 | - | - | ||||
| 6CrW2Si | - | - | -60WCrV7 | 1.2550 | (-55WC20) | 6XB2C | - | - | -60WCrV2 | ||||
| Cr12MoV | - | SKD11 | X165CrMoV12 | 1.2601 | - | X12M | 2310 | - | - | ||||
| Cr12Mo1V1 | D2 | - | X155CrVMo12-1 | 1.2379 | X160CrMov12 | - | - | BD2 | 160CrMoV12 | ||||
| 4Cr5MoSiV1 | H13 | SKD61 | X40CrMoV5-1 | 1.2344 | X40CrMoV5 | 4X5M ∅ 1C | - | BH13 | 40CrMoV5 | ||||
| LD | - | - | - | - | - | - | - | - | - | ||||
| W18Cr4V | T1 | SKH2 | S 18-0-1 | 1.3355 | HS 18-0-1 | P18 | 2750 | BT1 | HS 18-0-1 | ||||
| W6Mo5Cr4V2 | M2 | SKH9 | S 6-5-2 | 1.3343 | - | P6M5 | 2722 | BM2 | HS 6-5-2 | ||||
| 45 | 1450 | S45C | C45E | 1.1191 | C45E | 45 | 1660 | C40E | C45EC | ||||
| 42CrMo | 4140 | SCM440 | 42CrMo4 | 1.7225 | 42CD4 | - | 2244 | 708M40 | 42CrMo4 | ||||
| T8 | W1A-8 | SK5 | C80W2 | 1.1625 | (C80E2U) | Y6 | 1778 | - | TC80 | ||||
| Specification | Out diameter(mm) | Inner diameter(mm) | Thickness(mm) |
| ∅200×∅122×1.3 | 200 | 122 | 1.3 |
| ∅210×∅122×1.3 | 210 | 122 | 1.3 |
| ∅230×∅110×1.3 | 230 | 110 | 1.3 |
| ∅230×∅130×1.3 | 230 | 130 | 1.3 |
| ∅240×∅32×1.2 | 240 | 32 | 1.2 |
| ∅240×∅32×1.2 | 240 | 32 | 1.2 |
| ∅250×∅105×1.35 | 250 | 105 | 1.35 |
| ∅250×∅130×1.35 | 250 | 130 | 1.35 |
| ∅260×∅112×1.4 | 260 | 112 | 1.4 |
| ∅260×∅114×1.35 | 260 | 114 | 1.35 |
| ∅260×∅158×1.35(hole) | 260 | 158 | 1.35 |
| ∅260×∅158×1.35(non-hole) | 260 | 158 | 1.35 |
| ∅260×∅168.3×1.5 | 260 | 168.3 | 1.5 |
| ∅270×∅168.3×1.5 | 270 | 168.3 | 1.5 |
| ∅280×∅168×1.4 | 280 | 168 | 1.4 |
| ∅280×∅202×1.4 | 280 | 202 | 1.4 |
| ∅300×∅112×1.35 | 300 | 112 | 1.35 |
| : | : | : | : |
| ∅610×∅68.3×4.7 | 610 | 68.3 | 4.7 |
Finish of side faces:
1, With two-sided compound bevel consisting of secondary and primary bevel
2, Geometry of bevel optimized for the application.
3, Polished bevel for minimum friction.
Packaging and Shipment
1, PE film or Kraft paper - keep air/water/humid away,thus rust-proofing
2, Bubble Wrap - increases the impact resistance ability
3, Rubber Slip or Corrugated Angle - gives special care to knife edges
4, Wood Screws crates - makes opening easier without damaging the crates
5, Corrugated boxes or Wooden crates - provide superior protection and stack-ability
Material and hardness are much important to the work life for blades, according to over 10 years experience, Xiamen Huanxin will provide you professional advice and recommend you best material and hardness according to the applications of blades with competitive price.
We can custom made blades according to your drawing or description. In order to provide prompt and accurate quotation, it's better that you can provide us the quantity, drawings, cutting application and etc of blades.
All of your inquiry and emails will be replied within 24 hours. We believe No excuse for failure, only the action for success. You are welcome to visit our factory.
FAQ
1, What is your capacity?
Both our heat treatment facility and grinding machines allow for straight knives up to 7 meters (or 275 inches) long, no segment
at all, in a single piece, while for circular knives up to 1500mm in O.D.
2, How do you guarantee your quality?
Material selection and hardness survey are critical for blade quality. We were formally engaged in forging, and had a good command of mechanics and property of different tool steels. Inspection on incoming materials is furthermore well taken care of. Long-term raw providers physically near to us, that help make us more competitive, ensured quality. We are serious and all our blades parts are always forged while those parts from most of our competitors are not.
3, What's price?
Always we will quote you price based on drawings, or you can tell us the dimension. Then according to your application and quantity, we will send you quotation in time. The price is differ from different materials .
4, What's the material and hardness?
According to your application, we will recommend you the best material and hardness.
Optional Materials :9CrSi, 6CrW2Si , LD , D2 , Cr12MoV , H13 , G1, G2 ,G3 and etc.
5, Do you handle shipments?
Definitely yes. Usually in a quotation sheet, an Ex factory price is offered. We are, however, happy to offer FOB POL (Port of Loading) or CIF POD (Port of Destination) as requested. As a manufacturer, we have more shipments to handle than you do, and this advantage enables us to get better rates, which in turn we get back to you. Besides, we have better connections to handle custom inspection and unexpected conditions.
Xiamen Huanxin Machine is a manufacturer of standard and precision circular and rectangular replacement industrial machine cutting blades for all levels of the paper, paperboard and corrugated industries over ten years. Huanxin provides machine knives to manufacturers and converters of plastics, laminates, flexible materials, films, foils, thin metals, non-woven materials, textile, tire and rubber materials to circuit boards, synthetic components, roofing materials, and more.
Our products are applicable to industries and machines such as Metallurgical industry, Food processing industry, Chemical industry, Textile industry, Wood processing industry, Paper making industry, Pipe manufacturing industry, Printing and packaging industry, Plastic and Rubber processing industry, Paper and Foil cutting machines, Metal and Non-metal slitters and Precision slitting machines.
Based on rich manufacturing experience and strong technology, strict management and quality inspection systems, quality and delivery time are ensured. For every one of the product to be made, Huanxin will take the most responsible attitude in this field to fit customer's specific applications to maximize production requirements.
Steps:
1.Sample/Drawing |
We need your detail require clearly. |
↓ ↓ | |
2.Negotiation |
Material,cavity,price,delivery time,payment term ,etc. |
↓ ↓ | |
3.Place order |
According to your own design or choose our design. |
↓ ↓ | |
4.Mold design |
We will communicate and exchange opinions with you during making drawing. |
↓ ↓ | |
5.Tooling mold |
After customer approve, the mold will be made according to the mold design. |
↓ ↓ | |
6.Mold process |
Provide photos for customer to show them tooling process. |
↓ ↓ | |
7.Sample confirm |
Send customer sample for confirmation, if not satisfied, we will modify the mold . |
↓ ↓ | |
8.Delivery mold |
Delivery mold after customer approve sample and arrange shipment |
we can produce according to your requirements, such as carve your LOGO and Advertising words. In addition, you can send your drawings and samples to us then we can make blades more accurately match your machine.
