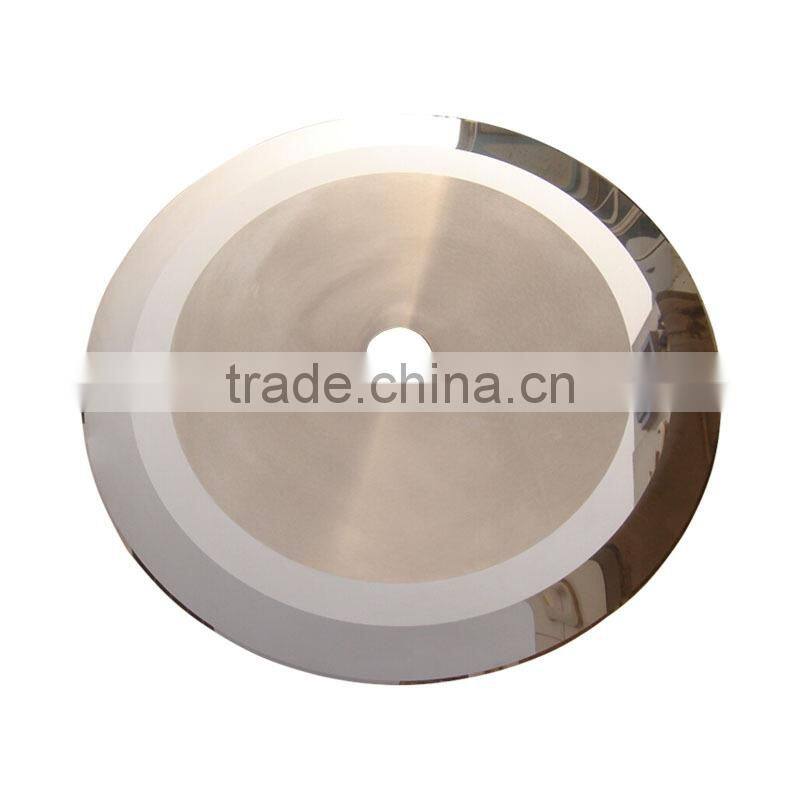

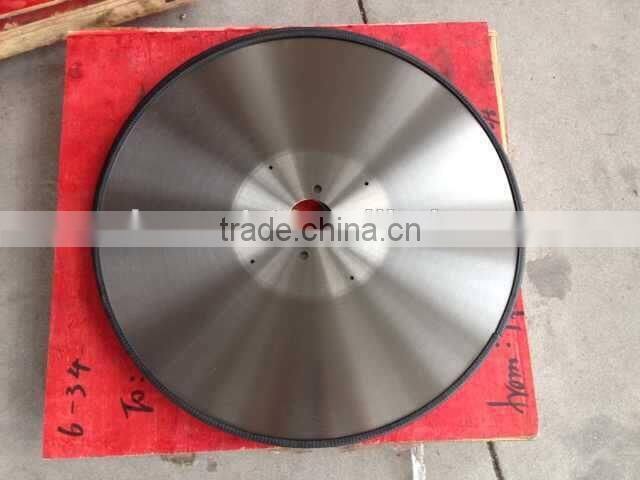

toilet paper cutting knives/log saw blades 610 circle blade:
LOG SAW BLADE
Reasonable raw materials were selected and heat treatment controlled by computer along with CNC machining guarantees tough wear resistance and dimensional precision of tools and thus superior cutting performance and quality of end products. If you have a drawing, sketch or written specifications for the log saw blades that you need, please contact us now for a quick quote.We will quote for you base on your specific requirements.
As an important facility in the paper-making industry, a slitter rewinder is to make the paper rolls into wanted width through slitting and trimming processes.Deep cryogenic treatment giving a life time 2-3 times longer than a knife normally treated.
toilet paper cutting knives/log saw blades 610 circle blade serve the following:
Paper and Pulp Mill, Tissue maker, Paper pipe plant, Printing house, Paper carton / sheet factory, Cigarette factory. With the assistance of PVD, CVD, and flame-applied coatings, we can further extend the life of your tooling.
| MATERIALS FOR CHOICE | |||||||||
| GB | ASTM | JIS | DIN | W-Nr | NF | ROCT | SS14 | BS | ISO |
| 9CrSi | - | - | 90CrSi5 | 1.2108 | - | 9XC | 2090 | - | - |
| 6CrW2Si | - | - | -60WCrV7 | 1.2550 | (-55WC20) | 6XB2C | - | - | -60WCrV2 |
| Cr12MoV | - | SKD11 | X165CrMoV12 | 1.2601 | - | X12M | 2310 | - | - |
| Cr12Mo1V1 | D2 | - | X155CrVMo12-1 | 1.2379 | X160CrMov12 | - | - | BD2 | 160CrMoV12 |
| 4Cr5MoSiV1 | H13 | SKD61 | X40CrMoV5-1 | 1.2344 | X40CrMoV5 | 4X5MΦ1C | - | BH13 | 40CrMoV5 |
| LD | - | - | - | - | - | - | - | - | - |
| W18Cr4V | T1 | SKH2 | S 18-0-1 | 1.3355 | HS 18-0-1 | P18 | 2750 | BT1 | HS 18-0-1 |
| W6Mo5Cr4V2 | M2 | SKH9 | S 6-5-2 | 1.3343 | - | P6M5 | 2722 | BM2 | HS 6-5-2 |
| 45 | 1450 | S45C | C45E | 1.1191 | C45E | 45 | 1660 | C40E | C45EC |
| 42CrMo | 4140 | SCM440 | 42CrMo4 | 1.7225 | 42CD4 | - | 2244 | 708M40 | 42CrMo4 |
| T8 | W1A-8 | SK5 | C80W2 | 1.1625 | (C80E2U) | y6 | 1778 | - | TC80 |
Standard Size of toilet paper cutting knives/log saw blades 610 circle blade:
| Specification | Out diameter(mm) | Inner diameter(mm) | Thickness(mm) |
| ∅200×∅122×1.3 | 200 | 122 | 1.3 |
| ∅210×∅122×1.3 | 210 | 122 | 1.3 |
| ∅230×∅110×1.3 | 230 | 110 | 1.3 |
| ∅230×∅130×1.3 | 230 | 130 | 1.3 |
| ∅240×∅32×1.2 | 240 | 32 | 1.2 |
| ∅240×∅32×1.2 | 240 | 32 | 1.2 |
| ∅250×∅105×1.35 | 250 | 105 | 1.35 |
| ∅250×∅130×1.35 | 250 | 130 | 1.35 |
| ∅260×∅112×1.4 | 260 | 112 | 1.4 |
| ∅260×∅114×1.35 | 260 | 114 | 1.35 |
| ∅260×∅158×1.35(hole) | 260 | 158 | 1.35 |
| ∅260×∅158×1.35(non-hole) | 260 | 158 | 1.35 |
| ∅260×∅168.3×1.5 | 260 | 168.3 | 1.5 |
| ∅270×∅168.3×1.5 | 270 | 168.3 | 1.5 |
| ∅280×∅168×1.4 | 280 | 168 | 1.4 |
| ∅280×∅202×1.4 | 280 | 202 | 1.4 |
| ∅300×∅112×1.35 | 300 | 112 | 1.35 |
| : | : | : | : |
| ∅610×∅68.3×4.7 | 610 | 68.3 | 4.7 |
Xiamen Huanxin Machine is a manufacturer of standard and precision circular and rectangular replacement industrial machine cutting blades for all levels of the paper, paperboard and corrugated industries over ten years. Huanxin provides machine knives to manufacturers and converters of plastics, laminates, flexible materials, films, foils, thin metals, non-woven materials, textile, tire and rubber materials to circuit boards, synthetic components, roofing materials, and more.
