Offer OEM&OAM orders

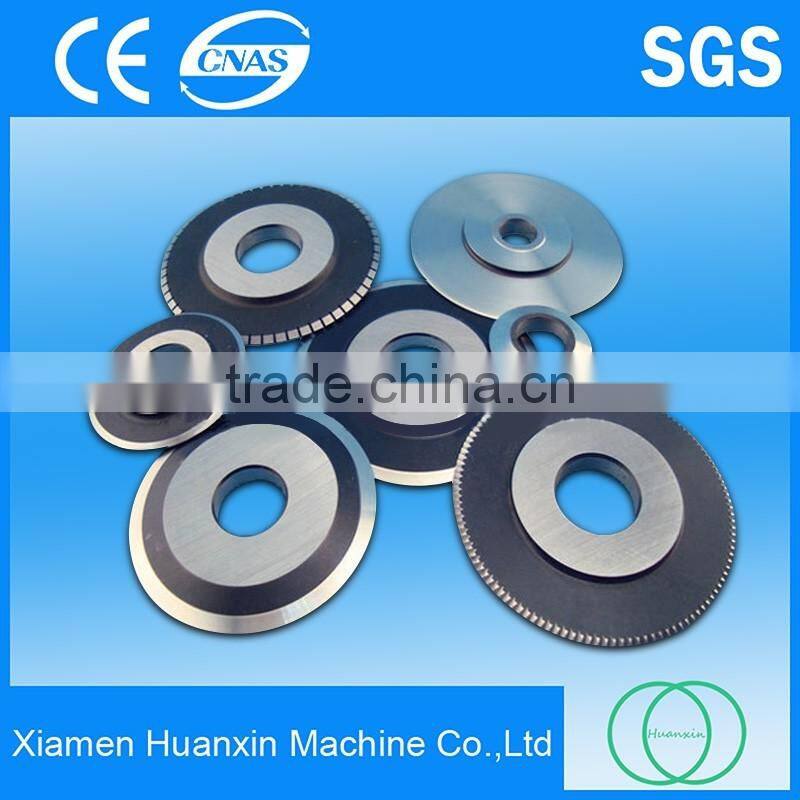

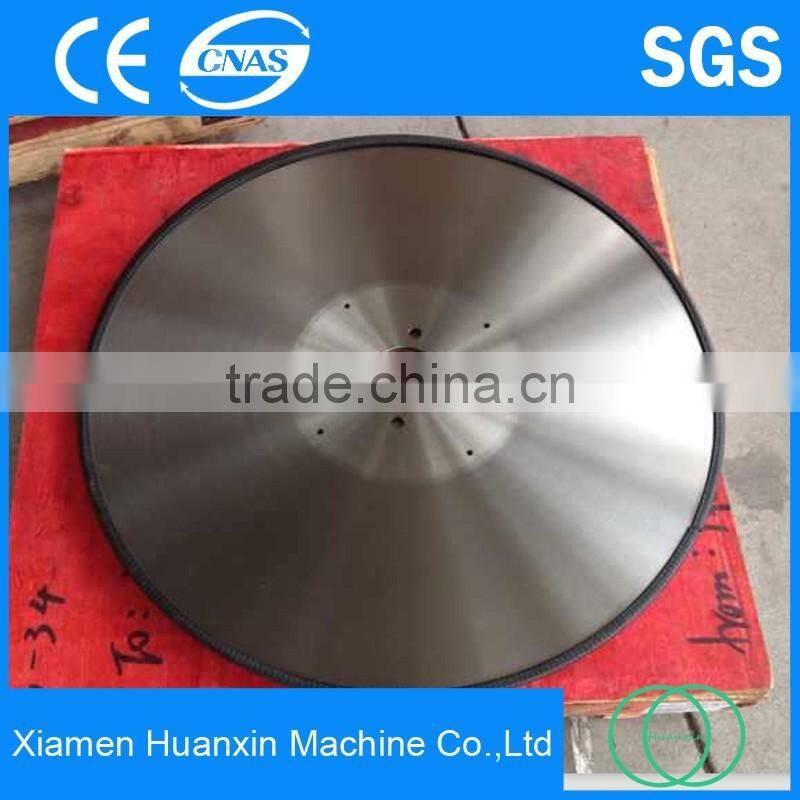

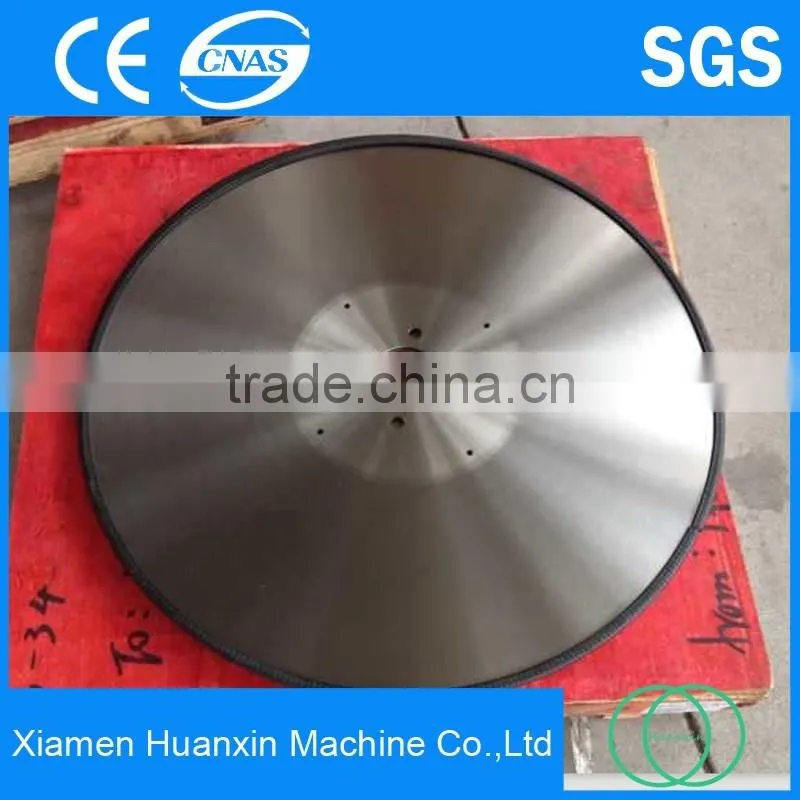

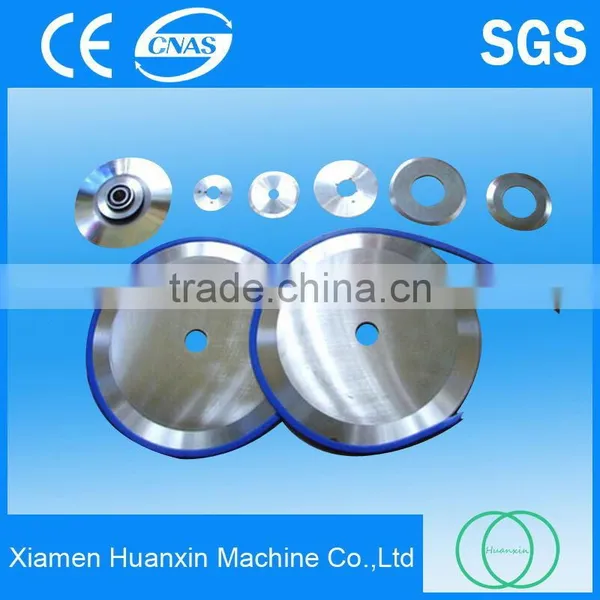

Tissue Paper Cutting Log Saw Blade:
Specification:(customized shape and dimension is acceptable!)
Advantages of blade manufacturer and supplier:
Log saw blade that can be specifically designed to provide long service life for an extra clean cut of tissue paper, toilet roll, exceptional durability and outstanding cut quality of your end product.
The log saw blades are manufactured from 1.2379 (D2) high carbon high chrome tool steel, with precise heat treatment to achieve a final hardness of Rockwell 60-62 and excellent cutting longevity and wear resistance, even high speed steel with hardness of Rockwell 62-64.
Log saw blades ground to excellent sharp and two sided special compound bevel consisting of secondary and primary bevel by advanced CNC operated grinding machines and processes . The bevel geometry is optimized for the application , and polished for minimum friction.
| MATERIALS FOR CHOICE | |||||||||||||
GB |
ASTM | JIS | DIN | W-Nr | NF | POCT | SS14 | BS | ISO | ||||
| 9CrSi | - | - | 90CrSi5 | 1.2108 | - | 9XC | 2090 | - | - | ||||
| 6CrW2Si | - | - | -60WCrV7 | 1.2550 | (-55WC20) | 6XB2C | - | - | -60WCrV2 | ||||
| Cr12MoV | - | SKD11 | X165CrMoV12 | 1.2601 | - | X12M | 2310 | - | - | ||||
| Cr12Mo1V1 | D2 | - | X155CrVMo12-1 | 1.2379 | X160CrMov12 | - | - | BD2 | 160CrMoV12 | ||||
| 4Cr5MoSiV1 | H13 | SKD61 | X40CrMoV5-1 | 1.2344 | X40CrMoV5 | 4X5M ∅ 1C | - | BH13 | 40CrMoV5 | ||||
| LD | - | - | - | - | - | - | - | - | - | ||||
| W18Cr4V | T1 | SKH2 | S 18-0-1 | 1.3355 | HS 18-0-1 | P18 | 2750 | BT1 | HS 18-0-1 | ||||
| W6Mo5Cr4V2 | M2 | SKH9 | S 6-5-2 | 1.3343 | - | P6M5 | 2722 | BM2 | HS 6-5-2 | ||||
| 45 | 1450 | S45C | C45E | 1.1191 | C45E | 45 | 1660 | C40E | C45EC | ||||
| 42CrMo | 4140 | SCM440 | 42CrMo4 | 1.7225 | 42CD4 | - | 2244 | 708M40 | 42CrMo4 | ||||
| T8 | W1A-8 | SK5 | C80W2 | 1.1625 | (C80E2U) | Y6 | 1778 | - | TC80 | ||||
| Specification | Out diameter(mm) | Inner diameter(mm) | Thickness(mm) |
| ∅200×∅122×1.3 | 200 | 122 | 1.3 |
| ∅210×∅122×1.3 | 210 | 122 | 1.3 |
| ∅230×∅110×1.3 | 230 | 110 | 1.3 |
| ∅230×∅130×1.3 | 230 | 130 | 1.3 |
| ∅240×∅32×1.2 | 240 | 32 | 1.2 |
| ∅240×∅32×1.2 | 240 | 32 | 1.2 |
| ∅250×∅105×1.35 | 250 | 105 | 1.35 |
| ∅250×∅130×1.35 | 250 | 130 | 1.35 |
| ∅260×∅112×1.4 | 260 | 112 | 1.4 |
| ∅260×∅114×1.35 | 260 | 114 | 1.35 |
| ∅260×∅158×1.35(hole) | 260 | 158 | 1.35 |
| ∅260×∅158×1.35(non-hole) | 260 | 158 | 1.35 |
| ∅260×∅168.3×1.5 | 260 | 168.3 | 1.5 |
| ∅270×∅168.3×1.5 | 270 | 168.3 | 1.5 |
| ∅280×∅168×1.4 | 280 | 168 | 1.4 |
| ∅280×∅202×1.4 | 280 | 202 | 1.4 |
| ∅300×∅112×1.35 | 300 | 112 | 1.35 |
| : | : | : | : |
| ∅610×∅68.3×4.7 | 610 | 68.3 | 4.7 |
Standard Size log saw blades,we have it in large stock.
Sample Offering:Sample is available to check our quality within two days to send you.
| Specification |
Out diameter(mm) |
Inner diameter(mm) |
Thickness(mm) |
| ∅610×∅68.26×4.76 | 610 | 68.26 | 4.76 |
| ∅610×∅68.26×3.80 | 610 | 68.26 | 3.80 |
| ∅610×∅82.55×4.76 | 610 | 82.55 | 4.76 |
| ∅610×∅82.55×3.80 | 610 | 82.55 | 3.80 |
| ∅610×∅100.0×4.76 | 610 | 100.0 | 4.76 |
| ∅610×∅100.0×3.80 | 610 | 100.0 | 3.80 |
| : |
: |
: |
: |
Finish of side faces:
1, With two-sided compound bevel consisting of secondary and primary bevel
2, Geometry of bevel optimized for the application.
3, Polished bevel for minimum friction.
Payment Terms:
♦ 30%−50% down payment in advance and the balance before shipment.
♦ Paypal,Westen Union,T/T, Unionpay ,Excrow Service,Visa,LC,etc.
Samples Offering:
♦ Samples is available.
♦ Freight collect.
Delivery Time:
♦ 5-10 Days For Few Quantity.
15-25 Days For Large Quantity.
♦ Personalized Customization Is Acceptable.
Transportation:
*5-10 Days by Express.(UPS,DHL,TNT,FedEX,EMS,etc.)
*2-3 days by Air (EXW,FOB,FCA,CIF,CPT,DAF,DDP etc.)
*25-45 days by Sea (EXW,FOB,FCA,CIF,CPT,DAF,DDP etc.)
FAQ
1, What is your capacity?
Both our heat treatment facility and grinding machines allow for straight knives up to 7 meters (or 275 inches) long, no segment
at all, in a single piece, while for circular knives up to 1500mm in O.D.
2, How do you guarantee your quality?
Material selection and hardness survey are critical for blade quality. We were formally engaged in forging, and had a good command of mechanics and property of different tool steels. Inspection on incoming materials is furthermore well taken care of. Long-term raw providers physically near to us, that help make us more competitive, ensured quality. We are serious and all our blades parts are always forged while those parts from most of our competitors are not.
3, Do you handle shipments?
Definitely yes. Usually in a quotation sheet, an Ex factory price is offered. We are, however, happy to offer FOB POL (Port of Loading) or CIF POD (Port of Destination) as requested. As a manufacturer, we have more shipments to handle than you do, and this advantage enables us to get better rates, which in turn we get back to you. Besides, we have better connections to handle custom inspection and unexpected conditions.
Xiamen Huanxin Machine is a manufacturer of standard and precision circular and rectangular replacement industrial machine cutting blades for all levels of the paper, paperboard and corrugated industries over ten years. Huanxin provides machine knives to manufacturers and converters of plastics, laminates, flexible materials, films, foils, thin metals, non-woven materials, textile, tire and rubber materials to circuit boards, synthetic components, roofing materials, and more.
Based on rich manufacturing experience and strong technology, strict management and quality inspection systems, quality and delivery time are ensured. For every one of the product to be made, Huanxin will take the most responsible attitude in this field to fit customer's specific applications to maximize production requirements.
Xiamen Huan Xin Machinery Co.,Ltd Cheap and Best! Supply precision circular and rectangular replacement industrial machine
cutting blades for Packing and Printing industry,Textile and Nonwoven industry,Food
Industry,Film,Foil&Metal,Plastic Industry. Cutting Tude Blade,Cutting Rubber Blade,Cutting Paper Blade,Cutting Leather Blade,Special-
Shaped Blade. Saw Blade,Slitting Blade,Shears Blade,Straight Blade,Doctor
Blade,Metallurgical Blade,Grinding Wheel,Bending Machine Mould.
