Help CenterISO High Quality Steel Outside Gear Holland Type 28T Trailer Landing Gears
Related Products
-
Holland Type Gear Outside T Foot 28 Ton Truck Trailer Landing GearUS$ 120 - 160MOQ: 10 Pairs -
China ISO Landing Gear 28T Professional Manufacturer of Jost Landing GearUS$ 120 - 160MOQ: 10 Pairs
-
Outside Gear Holland Type 28T Landing Gear for Truck TrailerUS$ 120 - 160MOQ: 10 Pairs
-
Outside Gear Holland Type 28T Holland Type Semi-trailer Landing GearUS$ 120 - 160MOQ: 10 Pairs
-
Outside Gear Holland Type Holland Type Landing Gear T ShoeUS$ 120 - 160MOQ: 10 Pairs
Trailer Landing Gears Payment & Terms:
- MOQ: 10 Pairs Landing Gear
- FOB Price: $120 ~ ~ $160 Per Pair Trailer Landing Gears
- Payment Terms: L/C, T/T, Western Union
- Supply Capacity: 2000 Pairs per Month
- Delivery Time: About 20 Working Days
- Delivery Port: Qingdao, Xiamen
- Package: By Pallet; By Wooden Case; 200 Pairs Trailer Landing Gears in 1X20FCL.
Trailer Landing Gears Information:
Dimention of LGH28-A0101T:
Capacity: 28T Landing Gear
Static Load: 80T
Speed: Higher 3.5, Lower 0.42
Lift/Height: 430/794; 480/844
Wondee Autoparts Landing Gear Factory supplies landing foot for semi-trailers & RV semi-trailers.
Gear Box: Inside & Outside
Operation: Single side & Double side
Lifting Capacity: 25 ton ~ 35 ton.
Static Load: 50 ton ~ 90ton
Gear Food Type: T, A, S, G, R
Out put: 80,000 pairs yearly
Trailer Landing Gears Dimension :
Number | Capacity | Static Load | Speed | Lift | Height | |
kg | kg | Higher | Lower | mm | mm | |
LGH28-A0101T | 28000 | 80000 | 3.5 | 0.42 | 430 | 794 |
LGH28-A0102T | 28000 | 80000 | 3.5 | 0.42 | 480 | 844 |
The Detail Photos about Trailer Landing Gears:
Landing Gear for Trailer Inquiry Specifications ( Just for Reference ):
- Reliable, high-quality seal keeps water out and extends life
- Unique tapered backplate for enhanced durability
- Gearbox with low-temperature premium lube provides easy cranking and reduces component wear; protection from -65ºF to 225ºF
- Low Speed Gear - 38.6 turns per inch
- High Speed Gear - 4.5 turns per inch
- Massive, 5-inch upper housing with 80,000 psi minimum yield and retractable tube; maintains strength while saving weight. Lower leg is 12% larger than standard-duty landing gear
- Three-gear train gearbox with exclusive Man-Saver gear ratios handles normal loads with 40% less effort
- Exceeds all AAR M-931 and all TTMA RP-4 performance specifications.
- Includes an industry leading 5-year warranty
Landing Gear Function & Attention ( Just for Reference ) :
1.The device is use for semi-trailer and special trailers.
2.It lift and support trailer when it is separated from tractor.
3.It's also in use for all sorts of trucks that they are secured to work as jack.
4.The quality is up to the standard of American ABS specification.
5.Landing Gear has slow and fast two speed. Please use slow speed when loading. It is easy to operate. Do not use fast speed. It is possible to injure landing gear.

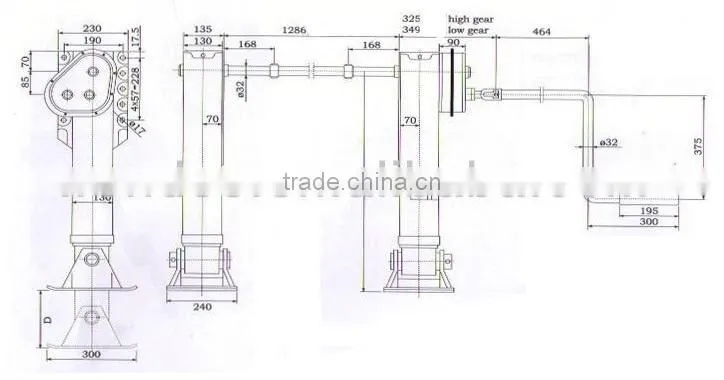

Trailer Landing Gears Drawings ( Just for Reference ) :
Besides Trailer Landing Gears, WONDEE AUTOPARTS also Supply SEMI TRAILER, WHEEL RIM,LANDING GEAR,SUSPENSION ... .... ...
