1.Airbag Suspension System2.Stroke is Changeable Air Spring
3.Superior Rubber Air Bag/Spring,Good Elasticity
5.ISO/TS16949

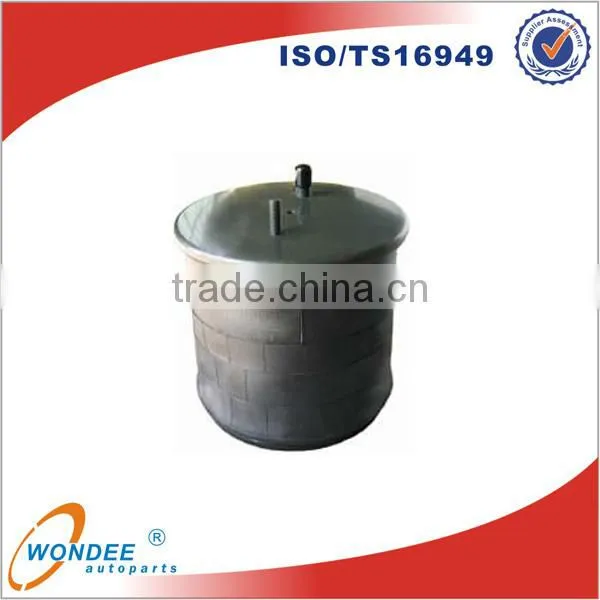

Airbag Suspension System Introduction:
We can supply kinds of Air Spring for air suspension.
1. Type: Goodyear, Firestone, Contitech,DAF,Volvo, Scania type etc.
2. Bellow type, Rolling type, Sleeve type,Convoluted Type.
3. Material: durable and low temperature resistant natural rubber
4. Certificate:ISO9001:2000/TS16949
5. Size: By OEM no. or drawing
6. Superior quality with best natural rubber, Best Price & Fast Delivery
Cross Information :
1.Contitech: 941MB
2.Firestone Style Number: 1T 17D-8.3
3.Firestone Order NR: W01-M58-8619
4.Goodyear: 1R11-700
5.Phoenix: 1 DK 21
6.Taurus: KR 730-01
7.Dynlop fr: D11B30
8.CF GOMMA: 1 TC 300-36
Technical Data :
1.Weight: 9.78kg
2.Design Height: 360mm
3.Deflection (Height Min): 285mm
4.Deflection (Height Max): 610mm
5.Working Stroke: 325mm
6.Measurement d max: 305mm
7.Space Required: 325mm
8.Loading cap.at 1.0bar:2.3kN
9.Loading cap.at 7.0bar: 28.5kN
Rolling Lobe Air Spring Dimension:
Des. |
Part No. |
Contitech |
Firestone |
Goodyear |
Aplicant |
Rolling Lobe |
|||||
C.PL |
AB8613 |
940MB |
W01-M58-8613 |
1R11-703 |
BPW |
C.PL |
AB8619 |
941MB |
W01--M58-8619 |
1R11-700 |
BPW |
C.ST |
AB942 |
942MB |
BPW |
||
C.ST |
AB6345 |
810MB |
W01-M58-6345 |
1R14-059 |
VOLVO,NEWAY,DAF,SAF |
C.ST |
AB8773 |
W01-M58-8773 |
ROR/MERITOR |
||
C.AL |
AB8648 |
W01-M58-8648 |
NEWAY |
||
C.PL |
AB9336 |
W01-M58-9336 |
WATSON & CHALIN |
||
C.PL |
AB9082 |
4156NP04 |
W01-M58-9082 |
1R12-092 |
NEWAY |
C.PL |
AB8644 |
W01-M58-8644 |
|||
C.ST |
AB8859 |
4159NP03 |
W01-M58-8859 |
1R12-702 |
FRUEHAUF/SMB |
C.ST |
AB9422 |
9 9-12P 314 |
W01-M58-9422 |
1R11-028 |
NEWAY,TOYO,KENWORTH |
C.AL |
AB9780 |
9 10S-16A382 |
W01-M58-9780 |
1R12-303 |
FREIGHTLINER,TRIANGLE |
C.ST |
AB9370 |
9 10S-17.5P440 |
W01-M58-9370 |
1R12-403 |
HAS,HENDRICSON |
C.P.L. |
AB9482 |
W01-M58-9482 |
NEWAY |
||
S.A |
AB8721 |
836M2K1 |
W01-M58-8721 |
1R12-711 |
DAF |
S.A |
AB8722 |
836MK1 |
W01-M58-8722 |
2R12-764 |
DAF |
C.AL |
AB8050 |
1110.5C-16A320 |
W01-M58-8050 |
1R14-039 |
LOADGUARD,DAYTON |
Because of the limited space, not show all part numbes , we can supply products according with customer's OEM No.
Assessed Supplier:
WONDEE Company and Product Samples:
About Us :
WONDEE AUTOPARTS, located in Xiamen city,Fujian Province of China,has been supplying
a wide variety of trailers , semi-trailers , trucks and their chassis components since 1999 . From
2009,WONDEE has expanded the business to special steel , agricultural machinery parts &
wheel rim production line.
In 2003, we are certified to the standards of the ISO9001:2000 system, and in 2006, we are
certified to the ISO/TS16949 international system.
