Transportation purpose and characteristic
Fuel tanker semi trailer is a special vehicle widely used in transportation of crude oil, petrol,diesel,etc.
The vehicle has reasonable structure, flexible steering, wonderful insulation effeat, reliable braking system.It is easy to use and maintain.
3 Axles Stainless Steel Fuel Semi Trailer Tanker for Sale Dimension:
OVERALL DIMENSION:12m*2.5m*3.8m | ||||
TANKER VOLUME:40m3 | ||||
CURB WEIGHT:9.8 Ton | ||||
PAYLOAD:42 Ton | ||||
CHASSIS | UNIT | QTY | REMARKS | |
1 | Main Beam | SET | 1 | SUS304 |
2 | Support beam | SET | 1 | SUS304 |
3 | Painting | SET | 1 | Impeller blasting ; Colour according to the customer request |
TANKER DETAIL | ||||
1 | Tanker body | SET | 1 | SUS304 Thickness:5mm |
2 | End plate | SET | 2 | SUS304 Thickness:6mm |
3 | Compartment | PC | 1 |
|
4 | Corrugated shape - Wash plate | PC | 7 | SUS304 Thickness:4mm |
5 | Ladder | PC | 2 | In the rear and front , Bolted |
6 | Overturn protection | PC | 2 | Full length valance,with tripod and ties in the end |
7 | Tank walkways | SET | 1 | Welded tread pattern strips |
OPERATION SYSTEM | ||||
1 | SUS304 Manhole | PC | 2 | Made in China |
2 | SUS304 Pneumatic bottom valve , 4-inch | PC | 1 | Made in China |
3 | SUS304 Rack unloading valve , 3-inch | PC | 2 | Made in China |
RUNNING SYSTEM | ||||
1 | Axles | PC | 3 | 13 TON American Type Axles |
2 | Suspension system | SET | 1 | Leaf-spring suspension, |
3 | Wheel rim | PC | 12 | 9.0*22.5 |
4 | Tyre | PC | 12 | 12R22.5 |
5 | Kingpin | PC | 1 |
|
6 | Landing legs | SET | 1 | 28ton Two-speed linkage |
PNEUMATIC BRAKE SYSTEM | ||||
1 | Spring brake chamber | PC | 6 |
|
2 | Air connector | SET | 1 |
|
3 | Valve | PC | 1 |
|
4 | ABS system | SET | 1 | BRAND:KEMI, |
ELECTRONICAL SYSTEM | ||||
1 | 7-Pin Socket | SET | 1 | One unit of 24V 7-pin socket |
2 | LED Lamp | SET | 1 | Full set of LED lamp |
3 | Cable | SET | 1 | One set of stander cable |
ACCESSORIES | ||||
1 | Tool box | PC | 1 |
|
2 | Wheel carrier | SET | 1 |
|
3 | Fire extinguisher | PC | 2 |
|
4 | Unloading hose | PC | 2 |
|
5 | Plastic fender | PC | 6 | |

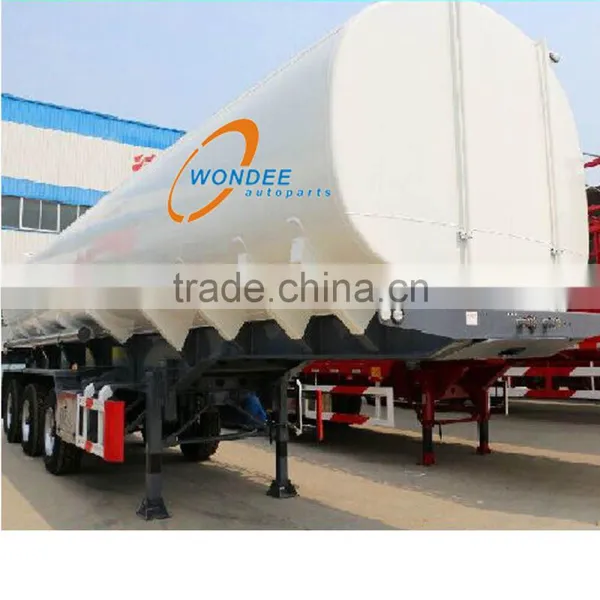

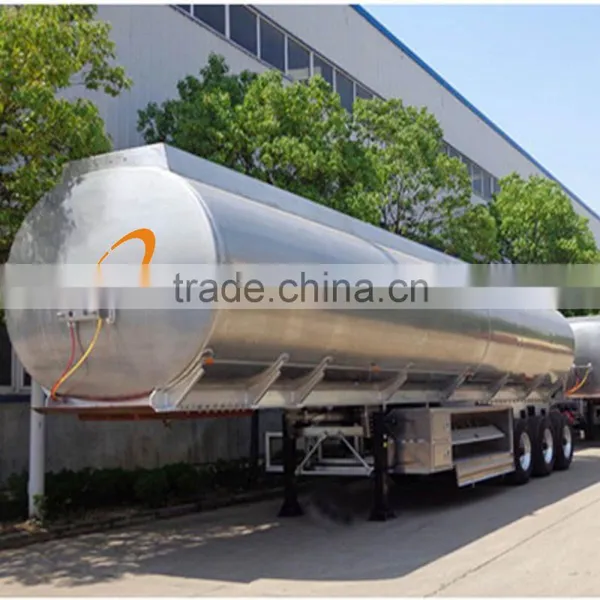

3 Axles Stainless Steel fuel Semi Trailer Tanker for Sale Photos:

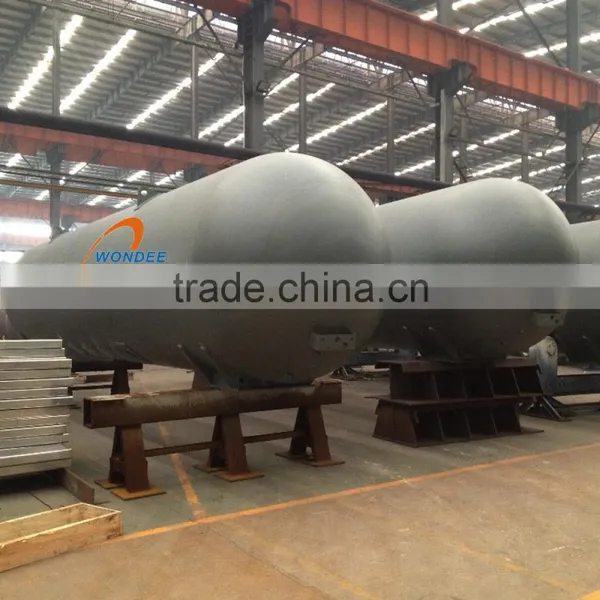

Factory Corner
More models of semi-trailer for your optional:
