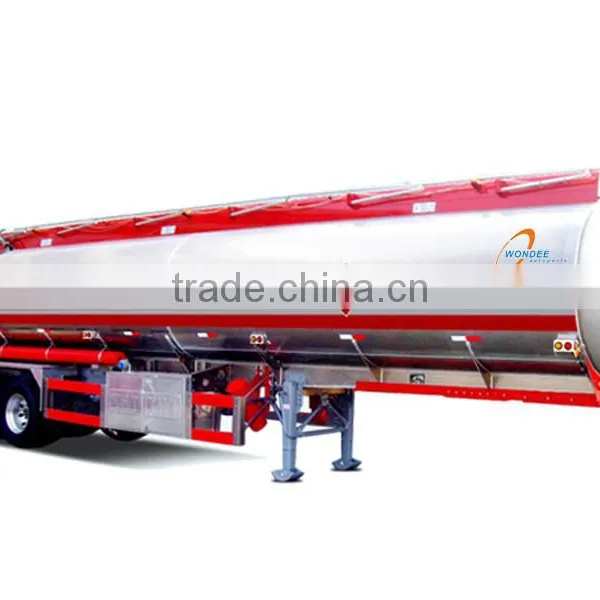

3 Axle Aluminum Alloy Fuel Tanker Trailer for Sale

OVERALL DIMENSION: 12m*2.5m*3.8m

TANKER VOLUME: 40m3

CURB WEIGHT: 9.8 Ton

PAYLOAD: 42 Ton

CHASSIS

1

Main Beam

Q345B STEEL

2

Support beam

Q345B STEEL

3

Painting

Impeller blasting ; Colour according to the customer request

TANKER DETAIL

1

Tanker body

Q235B STEEL Thickness:5mm

2

End plate

Q235B STEEL Thickness:6mm

3

Compartment

One

4

Corrugated shape - Wash plate

Q235 STEEL  Thickness:4mm

5

Ladder

In the rear and front  , Bolted

6

Overturn protection

Full length valance,with tripod and ties in the end

7

Tank walkways

Welded tread pattern strips

VAPOR RECOVERY SYSTEM OF FILLING GASOLINE

1

Aluminum Alloy manhole

Made in China

2

 Pneumatic bottom valve , 4-inch

Made in China

3

Aluminum Alloy Rack unloading valve , 3-inch

Made in China

RUNNING SYSTEM

1

Axles

13 TON American type Axles

2

Suspension system

Leaf-spring suspension,

3

Wheel rim

9.0*22.5

4

Tyre

12R22.5

5

Kingpin

6

Landing legs

28ton, Two-speed linkage

PNEUMATIC BRAKE SYSTEM

1

Spring brake chamber

Six pcs

2

Air connector

One set

3

Valve

One set

4

ABS system

BRAND:KEMI,

ELECTRONICAL SYSTEM

1

7-Pin Socket

One unit of 24V 7-pin socket

2

LED Lamp

Full set of LED lamp

3

Cable

One set of stander cable

ACCESSORIES

 1

Tool box

One set

2

Wheel carrier

One set

3

Fire extinguisher

Two pcs

4

Unloading hose

Two pcs

5

Plastic fender

Six pcs
