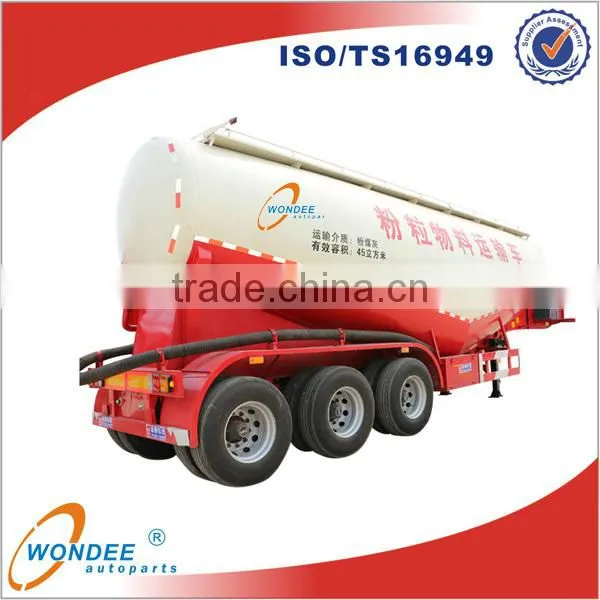

Bulk Cement Transport Semi Trailer 40m3 V Type Bulk Cement Semi Trailer

Name: Bulk Cement Transport Semi Trailer 40m3 V Type Bulk Cement Semi Trailer
Brand: WONDEE
SKU: 140169784
Availability: InStock

US$ 20,000 - 20,000 MOQ: 1 Set

Key Specifications

Type:

Semi-Trailer

Material:

Steel

Certification:

Other, ISO/TS16949

Xiamen Wondee Autoparts Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Fujian Fuzhou Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Type Semi-Trailer

Material Steel

Certification Other, ISO/TS16949

Size 11400*2500*3950MM

OEM No. Bulk Cement Transport Semi Trailer

Max Payload 52T

Place of Origin Fujian, China

Brand Name WONDEE

Model Number Bulk Cement Transport Semi Trailer

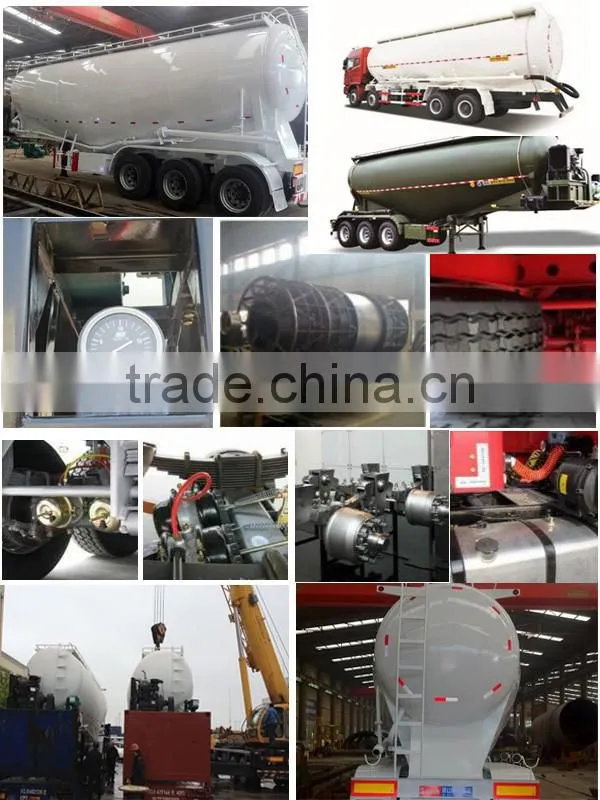

Bulk Cement Transport Semi Trailer 40m3 V type Bulk Cement Semi Trailer Dimension:

3-Axle,40m3 Powder Tanker Semi-trailer
SPECIFICATIONS
OVERALL DIMENSION:1140025003950 mm
TANKER VOLUME:40m3+5% MORE
CURB WEIGHT:About 9.8 TON
PAYLOAD:About 52 TON
NAME		UNIT	QTY	REMARKS
CHASSIS90	Main Beam	SET	1	Q345B STEEL
CHASSIS90	Support beam	SET	1	Q345B STEEL
TANKER DETAIL	Tanker body	SET	1	Q345B STEEL Thickness:4mm
	End plate	SET	2	Q345B STEEL Thickness:5mm
	Compartment	PC	1
	Ladder	PC	1
VAPOR RECOVERY SYSTEM	Manhole 500mm	PC	3
	Discharge valve	PC	1	4-inch , butterfly bamper
	Intake valve	PC	3	2-inch , thermostability ball valve
	Vent valve	PC	2	2-inch , thermostability ball valve
RUNNING SYSTEM	Axles	PC	3	13 TON Axles
	Suspension system	SET	1	Leaf-spring:101690mm
	Wheel rim	PC	12	9.0*22.5
	Tyre	PC	12	12R22.5
	Kingpin	PC	1
	Landing legs	SET	1	Two-speed linkage
PNEUMATIC BRAKE SYSTEM	Spring brake chamber	PC	6
	Air connector	SET	1
	Valve	PC	1
	ABS system	SET	1
ELECTRONICAL SYSTEM	7-Pin Socket	SET	1	One unit of 24V 7-pin socket
	LED Lamp	SET	1	Full set of LED lamp
	Cable	SET	1	One set of stander cable
