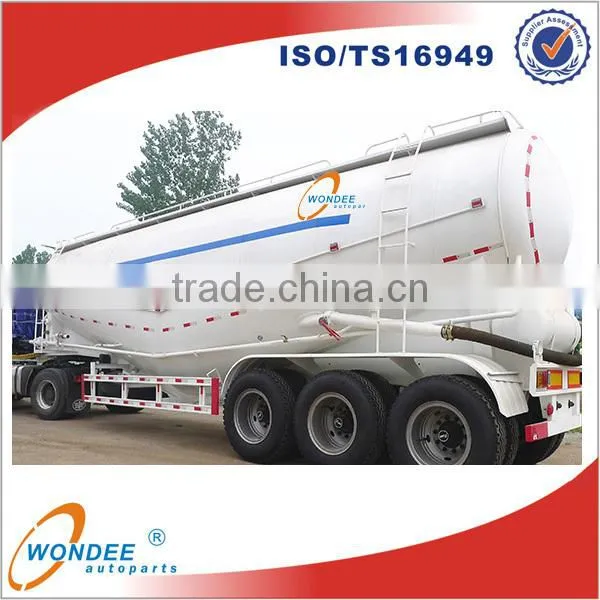

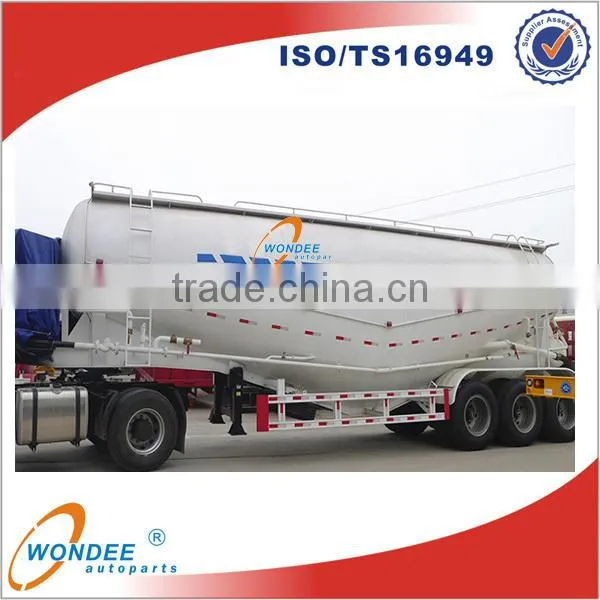

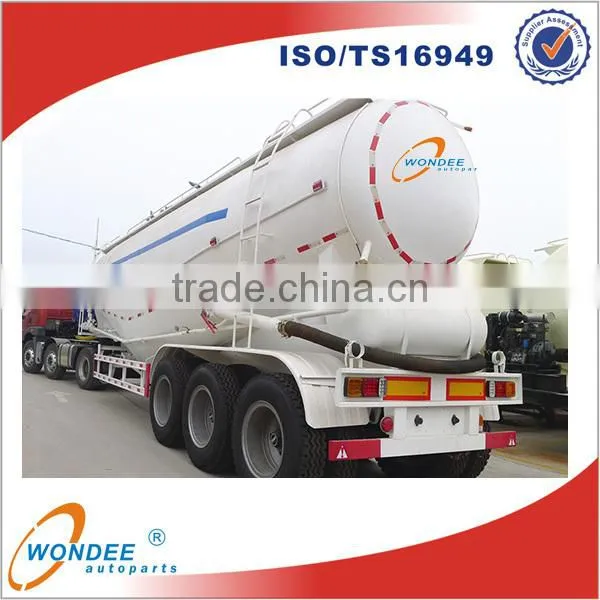

Bulk Cement Transport Semi Trailer 40m3 V Type Semi Trailer

3-Axle,40m3 Powder Tanker Semi-trailer

SPECIFICATIONS

OVERALL DIMENSION:11400*2500*3950   mm

TANKER VOLUME:40m3+5%   MORE

CURB WEIGHT:About 9.8 TON

PAYLOAD:About 52 TON

NAME

UNIT

QTY

REMARKS

CHASSIS90

Main Beam

SET

1

Q345B STEEL

Support beam

SET

1

Q345B STEEL

TANKER DETAIL

Tanker body

SET

1

Q345B STEEL Thickness:4mm

End plate

SET

2

Q345B STEEL Thickness:5mm

Compartment

PC

1

Ladder

PC

1

VAPOR RECOVERY SYSTEM

Manhole 500mm

PC

3

Discharge valve

PC

1

4-inch , butterfly bamper

Intake valve

PC

3

2-inch , thermostability ball valve

Vent valve

PC

2

2-inch , thermostability ball valve

RUNNING SYSTEM

Axles

PC

3

13 TON Axles

Suspension system

SET

1

Leaf-spring:10*16*90mm

Wheel rim

PC

12

9.0*22.5

Tyre

PC

12

12R22.5

Kingpin

PC

1

Landing legs

SET

1

Two-speed linkage

PNEUMATIC BRAKE SYSTEM

Spring brake chamber

PC

6

Air connector

SET

1

Valve

PC

1

ABS system

SET

1

ELECTRONICAL SYSTEM

7-Pin Socket

SET

1

One unit of 24V 7-pin socket

LED Lamp

SET

1

Full set of LED lamp

Cable

SET

1

One set of stander cable
