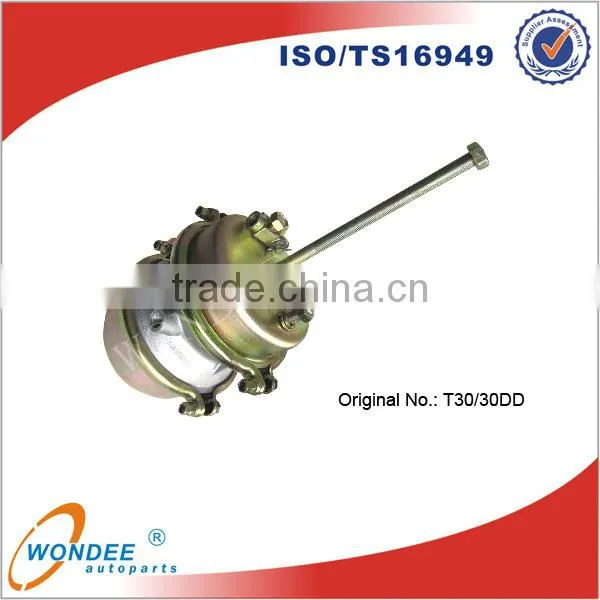

Air Brake Spring Chamber 30/30 Information:
Xiamen Wondee Autoparts Co., Ltd., located in Xiamen city, Fujian Province of China, has been supplying a wide variety of semi-trailers, trucks, special purpose vehicles, CKD vehicles, & Auto parts.
1. Air Brake Spring Chamber 30/30 Original No. : 9253020020
2.Type: 30/30DD
3.Mouting Bolt: 5/8-11UNC
4.Mouting Bolt Center: 120.7
5.Input Threads: NPT3/8
6.Stroke: 64
7.Push Rod Thread: 5/8-18UNF
8.Push Rod Length: 285
9.Life-time: Service Chamber: :≥1,000, 000Time
10.Leading Standard: SAE J1463-95
11.Parking Chamber ≥200,000Times
Air Brake Spring Chamber 30/30 TECHNICAL REQUIRE:
1.Max Operating Pressure: 1.0MPa
2.Operating Temperature Range: -40 º C ~+80 º C
3.Operating Presure: 0.8 MPa
Air Brake Spring Chamber 30/30 Spare Parts for Air Chamber:
- Release Stud Assembly
- Chamber
- Compression Spring
- Pressure Plate
- Piloted Diaphragm
- Adapter Return Spring
- Clamp Assembly
- Adapter
- " O " ring
- Adapter Push Rod
- Diaphragm
- Push Rod Assembly
- Housing Assembly
- Mounting Hardware
- Jam Nut
- Clevis Assemly
- Flat Washer
- Mouting Nut
- Lock Washer
Warming : Piloted diaphragms to be used only on Anchorlock Spring Brakes and only on the emergency side. Use on the service side will result in a reduction of stroke length.
Air Brake Spring Chamber 30/30 Dimension:
TYPE | STROKE | R1 | R2 | L1 | L2 | PUSHROD THREAD LENGTHL4 | PUSHROD THREAD |
T24 | 64 | 116 | 93 | 110 | 227 | 207 | 5/8"-18UNF2A |
T30 | 64 | 130 | 106 | 110 | 255 | 255 | 5/8"-18UNF2A |
T24/T24 | 64 | 116 | 93 | 224 | 270 | 207 | 5/8"-18UNF2A |
T30/30 | 64 | 130 | 106 | 238 | 255 | 255 | 5/8"-18UNF2A |
T24/T30 | 64 | 116 | 93 | 230 | 212 | 207 | 5/8"-18UNF2A |
AIR LNLET THREAD | MOUNTING BOLT THREAD | MOUNTING INLUDED ANGLE | WEIGHT |
3/8"-NPTF | 5/8"-11UNC2A | 45 | 4KGS |
3/8"-NPTF | 5/8"-11UNC2A | 45 | 4.6KGS |
3/8"-NPTF | 5/8"-11UNC2A | 45 | 8KGS |
3/8"-NPTF | 5/8"-11UNC2A | 45 | 8.8KGS |
3/8"-NPTF | 5/8"-11UNC2A | 90 | 8KGS |
Besides Air Brake Spring Chamber 30/30 , WONDEE AUTOPARTS also Supply SEMI TRAILER, WHEEL RIM,LANDING GEAR,SUSPENSION ... .... ...
