Specifications
1,Easy starting diesel engine.2 Large fuel capacity
2 1350mm tilling width
4 Optional rotary knives for different usage
QG GasolineTiller:
------ For Better Life
Introduction:

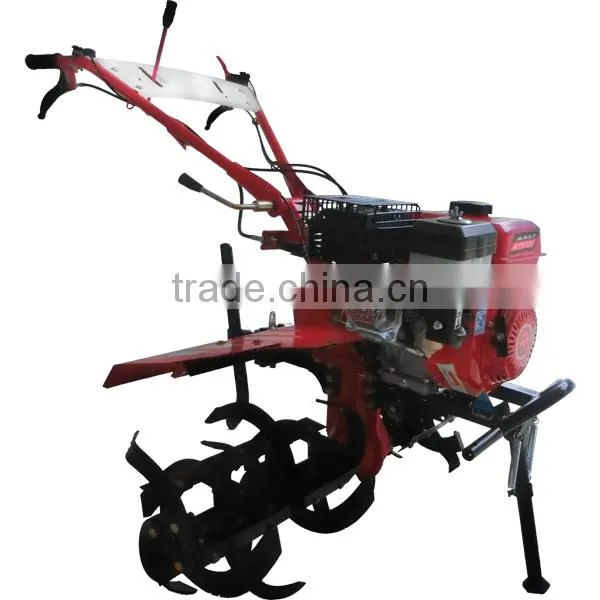

1WG3.8-100FC-Z is a gasoline tiller. It applies to the farming for mountain, dry land, paddy field, vegetable field and garden. It's popular for the garden working.
Main Features:
1, Easy starting diesel engine
2, Large fuel capacity
3, 100mm tilling width
4, Energy-saving, high-efficiency and low noise
5, Simple operation
6, Optional rotary knives for different applications
7, Gear shifting for fast and slow.
8, Device for emergency stop is available
9. 4 colors for your option
Accessories:
Standard configuration:
1* Tiller
1* Rotary knife for dry land
1* Rotary knife for paddy field
1* User Manual
Specifications:
No. |
Name |
Unit |
Specification |
|
1 |
Model |
/ |
1WG3.8-100FQ-Z |
|
2 |
Structure |
/ |
For-ward |
|
3 |
Engine |
170F air-cooled gasoline engine |
||
4 |
Dimension(L*W*H) |
mm |
1460×1000×800 |
|
5 |
Weight |
kg |
105 |
|
6 |
Color |
|
blue |
|
7 |
Transmission Drive |
/ |
Gear Drive |
|
8 |
Connection |
/ |
Direct act |
|
9 |
Handlebar adjustment |
Horizontal |
Degree |
180 |
Vertical |
180 |
|||
10 |
Knife roll |
Rotate speed |
r/min |
Fast :130;Slow:110 |
Max radius of gyration |
mm |
180 |
||
Total knives installed |
/ |
32 |
||
11 |
Rotary tillage knife |
/ |
II Dry land farming knife |
|
12 |
Main clutch |
/ |
Fraction |
|
13 |
Tilling width |
mm |
1050 |
|
14 |
Tilling depth |
mm |
≥100 |
|
15 |
Fuel Capacity |
L |
3.6 |
|
16 |
Lube capacity |
L |
0.6 |
|
17 |
Productivity |
hm2/(h·m) |
≥0.04 |
|
18 |
Fuel consumption |
kg/hm2 |
≤30 |
|
Optional Color:
QG factory show:
