Walk-behind Cultivation Machine
- Chongqin port
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Farm Cultivator | |
| Power Type | Gasoline | Power(W) | 3.8 | |
| Certification | ISO9001 | Warranty | 18months | |
| Use | Farm cultivator | Place of Origin | Chongqing, China | |
| Brand Name | QG | Model Number | 1WG3.8-100FQ-Z | |
| Weight | 75KG | Dimension(L*W*H) | 1460*1000*800mm | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1,Easy starting diesel engine.2 Large fuel capacity
2 1350mm tilling width
4 Optional rotary knives for different usage
QG GasolineTiller:
------ For Better Life
Introduction:

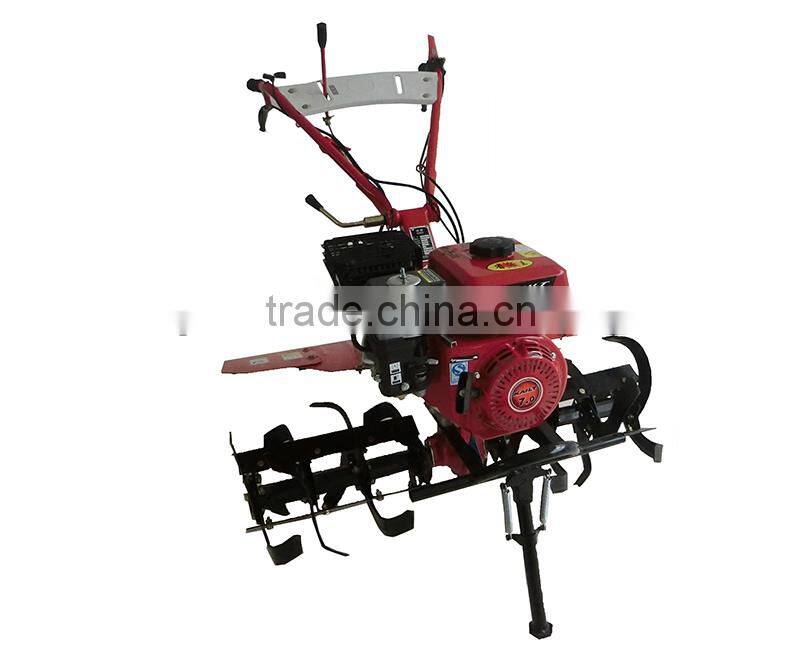

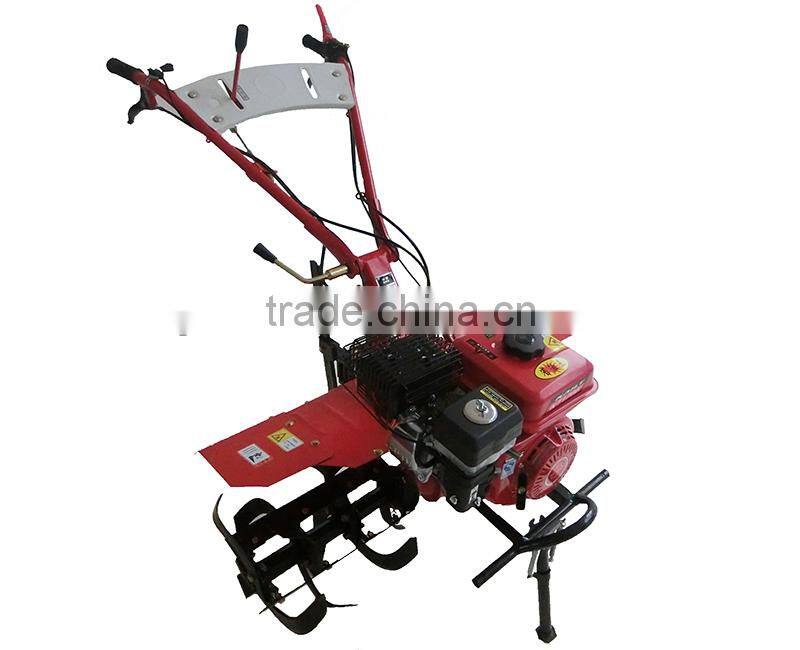

1WG3.8-100FC-Z is a gasoline tiller. It applies to the farming for mountain, dry land, paddy field, vegetable field and garden. It's popular for the garden working.
Main Features:
1, Easy starting diesel engine
2, Large fuel capacity
3, 100mm tilling width
4, Energy-saving, high-efficiency and low noise
5, Simple operation
6, Optional rotary knives for different applications
7, Gear shifting for fast and slow.
8, Device for emergency stop is available
9. 4 colors for your option
Accessories:
Standard configuration:
1* Tiller
1* Rotary knife for dry land
1* Rotary knife for paddy field
1* User Manual
Specifications:
No. | Name | Unit | Specification | |
1 | Model | / | 1WG3.8-100FQ-Z | |
2 | Structure | / | For-ward | |
3 | Engine | 170F air-cooled gasoline engine | ||
4 | Dimension(L*W*H) | mm | 1460×1000×800 | |
5 | Weight | kg | 105 | |
6 | Color |
| blue | |
7 | Transmission Drive | / | Gear Drive | |
8 | Connection | / | Direct act | |
9 | Handlebar adjustment | Horizontal | Degree | 180 |
Vertical | 180 | |||
10 | Knife roll | Rotate speed | r/min | Fast :130;Slow:110 |
Max radius of gyration | mm | 180 | ||
Total knives installed | / | 32 | ||
11 | Rotary tillage knife | / | II Dry land farming knife | |
12 | Main clutch | / | Fraction | |
13 | Tilling width | mm | 1050 | |
14 | Tilling depth | mm | ≥100 | |
15 | Fuel Capacity | L | 3.6 | |
16 | Lube capacity | L | 0.6 | |
17 | Productivity | hm2/(h·m) | ≥0.04 | |
18 | Fuel consumption | kg/hm2 | ≤30 | |

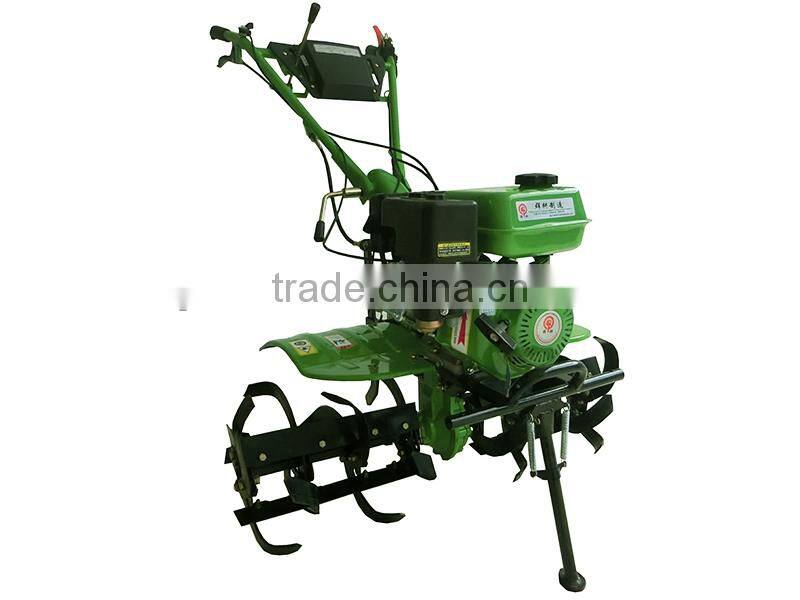

Optional Color:

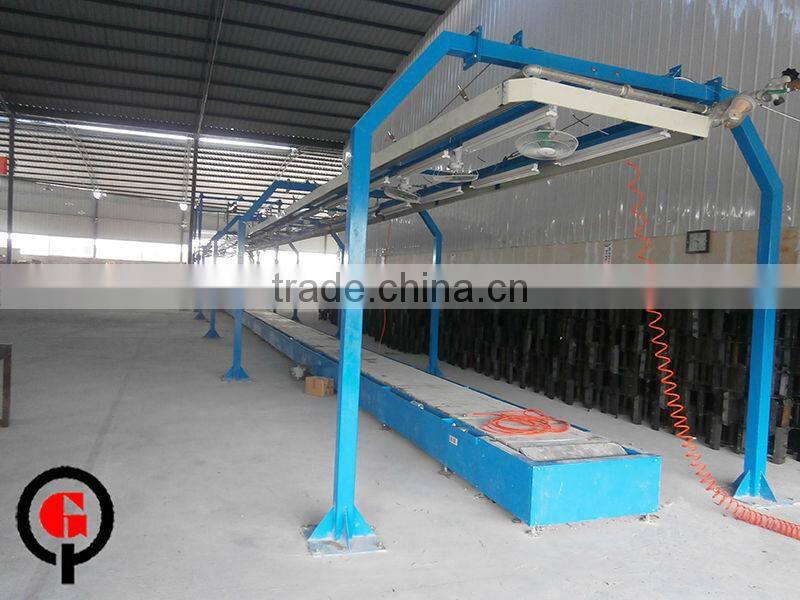

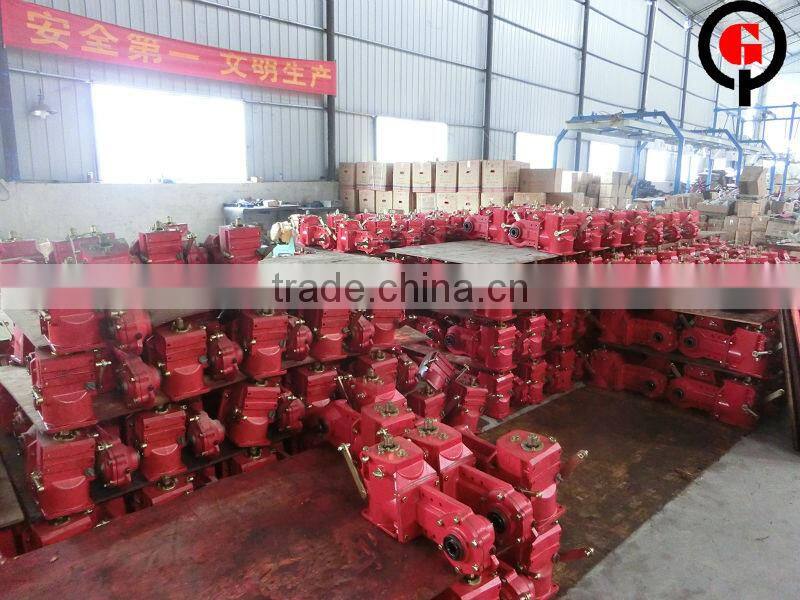

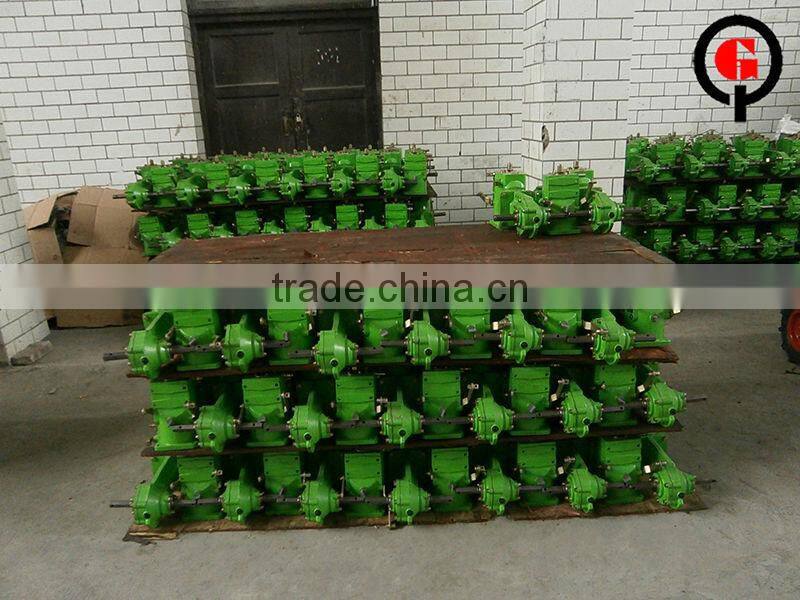

QG factory show:
